EZGO TXT Navitas AC Conversion: Unleash Modern Power with This DIY Guide

Why the Navitas AC Conversion Kit for EZGO TXT Changes Everything

The navitas ac conversion kit ezgo txt transforms your standard 48-volt EZGO TXT from a basic DC-powered cart into a high-performance AC machine with significantly more speed, torque, and efficiency. If you're looking to install one, here's what you need to know:

Quick Install Overview:

• Compatible Models: 2010+ 48V EZGO TXT/T48 with Curtis 1206HB controller
• Kit Options: 4kW/440A (everyday driving) or 5kW/600A (maximum performance)
• What's Included: TAC2 controller, AC motor, On-The-Fly programmer, mounting hardware, cables
• Required Upgrades: Heavy-duty solenoid (400A+), upgraded battery cables (2-4 gauge)
• Expected Results(depending on kit and cart set up): 30+ mph top speed, increased torque, regenerative braking, longer battery life
• Installation Time: 4-6 hours for experienced DIYers

Most golf cart owners struggle with sluggish acceleration, limited top speed, and short run times on their stock DC systems. The navitas ac conversion kit ezgo txt solves all three problems while adding modern features like Bluetooth app control and real-time performance tuning.

AC systems outperform traditional DC in every meaningful way: they run cooler, deliver smoother power, generate more torque for hill climbing, and recapture energy through regenerative braking. You'll also enjoy customizable throttle response and extended battery life—all managed through your smartphone.

I'm Martin Davis, owner of Extreme Kartz, and I've helped hundreds of customers successfully upgrade their carts with the navitas ac conversion kit ezgo txt since 2022. My team and I focus on clear fitment guidance and honest expectations, cutting through the confusion that often comes with performance upgrades.

This guide walks you through the entire conversion process—from choosing the right kit to final programming—so you can confidently complete this upgrade in your own garage.

Why Convert Your EZGO TXT from DC to AC?

The world of electric vehicles, including golf carts, is rapidly shifting from DC (Direct Current) to AC (Alternating Current) motor technology, and for good reason! Here at Extreme Kartz, we've seen how a navitas ac conversion kit ezgo txt can revolutionize your ride.

AC systems are simply superior in terms of product life, efficiency, and torque generation compared to their DC counterparts. Traditional DC systems often lead to limitations in speed, power, and battery efficiency. But with a Navitas AC system, you're not just upgrading a part; you're changing your entire driving experience.

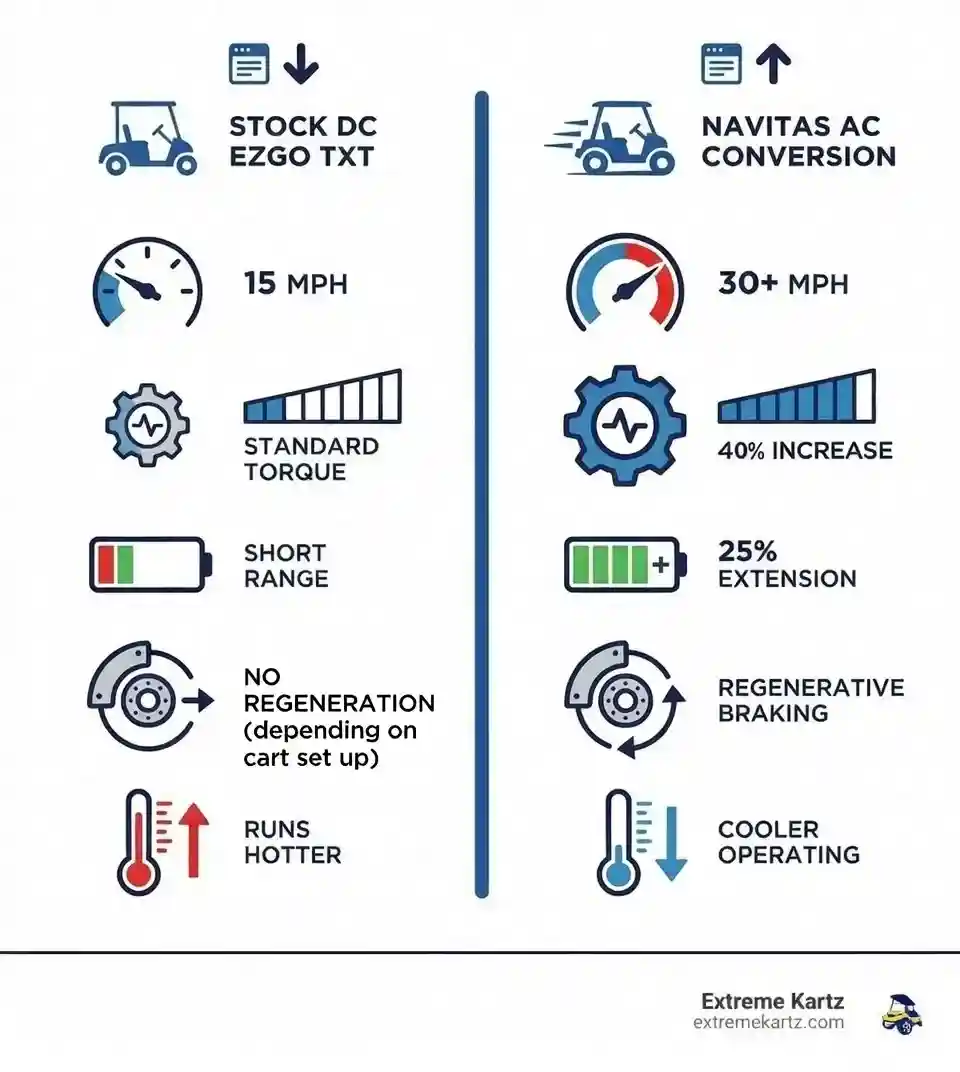

Performance Improvements You Can Expect

When you switch to a Navitas AC system, you're signing up for some serious upgrades. Our customers consistently report significant, tangible gains across the board:

• Speed Increase: Expect a noticeable bump in top speed, often into the 30 mph range with the right setup. Exact results depend on your kit choice (4kW vs. 5kW), battery type/voltage under load, controller settings, tire size, overall cart weight, and the terrain you drive on. The big win is that the cart feels less “tapped out” as speed builds.
• Torque Improvement: Say goodbye to struggling up hills. AC motors deliver significantly more torque, making hill climbing feel effortless and giving you better acceleration off the line.
• Extended Range & Battery Longevity: The super-efficient AC system means longer run times and increased battery efficiency. You'll get more miles per charge, which translates to less frequent charging and, ultimately, a longer life for your battery pack. AC systems are cooler-running and more energy-efficient, preserving your battery's health.
• Customizable Throttle Response: No more one-size-fits-all driving. With the Navitas system, you can customize your throttle response to match your driving style, whether you prefer a smooth, gentle start or an aggressive, punchy takeoff.

The super-efficient AC system results in longer run times and increased speed & torque. AC systems offer smoother, evenly distributed power which offers better performance at all speeds & on all terrain types. AC motors & controllers are more durable and built to withstand higher speeds, significantly more torque, & perform in harsher conditions. This all contributes to a truly superior ride. To dive deeper into why AC is the future, check out our article AC Motors: Why All The Hype? It's The Future, That's Why!. For more ways to boost your cart's performance, read our Six Proven Tips to Boost Your Golf Cart Performance.

The Power of Regenerative Braking

One of the standout features of a Navitas AC conversion is regenerative braking. This isn't just a fancy term; it's a game-changer for your cart's efficiency and longevity.

• Energy Recapture: When you lift your foot off the accelerator or go downhill, the AC motor acts like a generator, capturing kinetic energy and converting it back into electrical energy to recharge your batteries. This effectively extends your run time and keeps you on the cart longer.
• Reduced Brake Wear: By using the motor to slow the cart, you significantly reduce the wear and tear on your traditional mechanical brakes, saving you money and maintenance headaches in the long run.
• Controlled Descents: Regenerative braking provides excellent control on descents, preventing your cart from freewheeling and offering a smoother, safer ride down hills.
• Safety Feature: The ability to control braking and anti-rollback protection adds an extra layer of safety, especially on uneven terrain.

Choosing Your Navitas AC Conversion Kit for EZGO TXT

Selecting the right navitas ac conversion kit ezgo txt is crucial for optimizing your golf cart's performance to match your specific needs. Navitas offers excellent options, primarily differentiated by power (kW) and amperage (A). Understanding these differences will help you make an informed choice.

For a broader understanding of golf cart controllers and how they impact performance, check out our Golf Cart Controller Comparison: EZGO Upgrades Explained.

EZGO TXT Model Compatibility

Before you even think about ordering, let's ensure your EZGO TXT is a perfect match for a Navitas AC conversion. Compatibility is key to a successful upgrade.

The navitas ac conversion kit ezgo txt is specifically designed for:

• 2010+ 48-Volt EZGO TXT/T48 Golf Carts with:
  • a Run/Tow Switch
  • Carts currently running the factory (OEM) Curtis 1206HB controller
• TXT ELiTE (factory Samsung lithium) models require the dedicated ELiTE-specific kit

If your cart falls within these parameters, you're likely good to go! However, there are some important exclusions:

• Incompatible Models:
  • EZGO 'Series' TXT 36V/48V carts
  • 36V DCS models
  • MPT carts with extended input shafts
  • Not a replacement for an RXV motor/controller system

If you have a 36V PDS TXT, you'll need to upgrade to a 48V system first, which typically involves a 36V to 48V Adapter Harness, a Heavy-Duty Solenoid, and 48V Batteries.

Unsure where your controller is located or what type you have? Our Golf Cart Controller Location Detective: EZGO Locations Revealed guide can help. You can also use the application selector on the Navitas website to Find the right kit for your cart on the Navitas website or contact us for personalized assistance.

Kit Options: 4kW/440A vs. 5kW/600A

Navitas offers two primary navitas ac conversion kit ezgo txt options, each custom for different performance expectations:

• 4kW / 440A Kit: This kit is an excellent choice for everyday driving. It provides a substantial boost in speed, torque, and efficiency over your stock DC system. You'll experience better acceleration, improved hill-climbing ability, and extended range, making it perfect for leisurely rides, neighborhood commutes, or light utility work. It offers a fantastic balance of performance and efficiency.
• 5kW / 600A Kit: If you're chasing maximum speed, aggressive performance, and unparalleled torque, the 5kW/600A kit is your go-to. This is the ultimate upgrade for those who want their EZGO TXT to truly fly, tackle the steepest inclines with ease, or haul heavier loads. It's built for those who demand the most from their golf cart, offering a thrilling and powerful driving experience.

When matching the kit to your needs, consider your typical usage. Do you mostly cruise on flat terrain, or do you frequently encounter hills? Do you need to keep up with traffic, or is leisurely pace sufficient? Your answers will guide you to the perfect Navitas kit. Both options offer a significant upgrade, but the 5kW/600A kit takes performance to the extreme.

What's in the Box & Essential Supporting Upgrades

When you invest in a navitas ac conversion kit ezgo txt, you're getting a comprehensive package designed for a seamless upgrade. However, to truly release its full potential and ensure reliability, some additional supporting components are highly recommended, if not outright required.

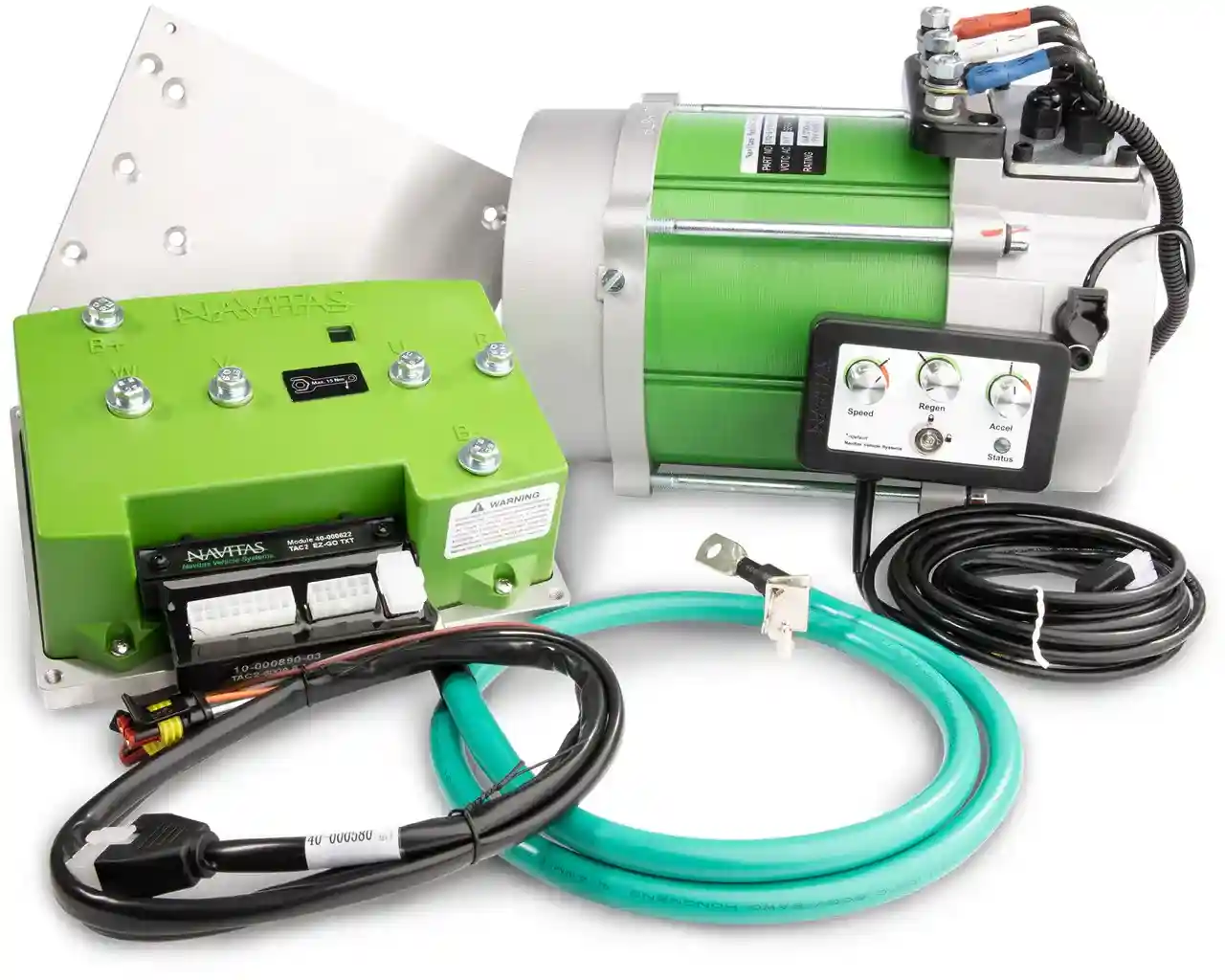

What's Included in a Typical navitas ac conversion kit ezgo txt?

A standard Navitas AC conversion kit for your EZGO TXT is a well-thought-out system, typically including:

• TAC2 AC Controller (440A or 600A): This is the brains of the operation, featuring power MOSFET technology, full programmability, regenerative braking, speed limiting, anti-rollback protection, and Bluetooth communication. The 600A version can handle even more power for peak performance.
• 4kW or 5kW AC Induction Motor: The muscle of your new system. AC motors are known for their superior product life, efficiency, and torque generation. These motors are more durable and built to withstand higher speeds and significantly more torque than traditional DC motors. The 5kW motor, for example, is rated for 3600 RPM and can reach speeds up to 6800 RPM.
• On-The-Fly (OTF) Programmer: A fantastic feature that allows you to manually adjust speed, acceleration, and regenerative braking on the go. It usually includes a key lock for safety and an LED indicator for system diagnostics.
• Model-Specific Mounting Plate: Ensures a perfect fit for your new controller in your EZGO TXT, often designed for easy installation without needing to cut or modify existing mounting plates.
• AC Motor Phase & Sensor Cables: High-quality cabling designed for the AC system, ensuring reliable power transmission and sensor feedback.

The kit is designed for easy installation and comes with all necessary hardware and cabling.

Required & Recommended Components

While the Navitas kit is comprehensive, a few additional components are essential or highly recommended to ensure optimal performance, safety, and longevity, especially given the increased power output.

• Heavy-Duty Solenoid (400A+): Your stock solenoid is likely rated for a DC system and may not handle the increased current demand of a high-performance AC system. We strongly recommend upgrading to a heavy-duty solenoid (e.g., 400A or higher) to prevent premature failure and ensure reliable power delivery.
• Upgraded Battery Cables (2-gauge or 4-gauge): Thicker battery cables (2-gauge or 4-gauge minimum for lead-acid systems) are crucial to minimize voltage drop and safely handle the higher current flow from your new AC system. Stock cables are often too thin and can overheat, leading to performance loss and potential safety hazards.
• High-Performance Batteries: To fully leverage the power and efficiency of your new navitas ac conversion kit ezgo txt, high-performance batteries are a must. While lead-acid batteries can work, we highly recommend upgrading to lithium golf cart batteries. Lithium batteries offer consistent power delivery, lighter weight, longer lifespan, and often come with higher discharge rates, which perfectly complement an AC system. For Navitas controllers, a battery with at least a 600 Peak discharge and a continuous discharge of 200 amps is recommended. Learn more about choosing the best batteries for your setup in our guide: Best Lithium Batteries for Navitas Controllers: What You Need to Know.

Investing in these supporting upgrades ensures that your entire electrical system can handle the increased demands of your powerful new Navitas AC conversion, providing you with a reliable and exhilarating ride.

Step-by-Step Installation Guide for the Navitas AC Conversion Kit EZGO TXT

Installing your navitas ac conversion kit ezgo txt is a rewarding DIY project that can typically be completed in 4-6 hours by an experienced enthusiast. However, safety is paramount. Always disconnect your batteries before starting any electrical work. You'll need basic hand tools, including screwdrivers, wrenches, wire cutters/strippers, and potentially a multimeter. For any electrical issues you might encounter, our How to Troubleshoot Common Golf Cart Electrical Issues guide is a great resource.

Step 1: Preparation and Removal of DC Components

Preparation is key to a smooth installation. Take your time with this initial phase.

1. Safety First: Ensure your golf cart is on a level surface, The cart is in "Tow" mode, the parking brake is engaged, and the key is off. Most importantly, disconnect the main battery pack by removing the negative cable first, then the positive. Insulate the terminals to prevent accidental contact.
2. Document Everything: Before you remove a single component, take plenty of reference photos or even a video of your existing wiring, controller, and motor connections. This will be invaluable during reassembly.
3. Access Components: Remove the cart's body or seat to gain full access to the controller, solenoid, and motor. For easier motor access, consider removing the rear passenger tire.
4. Remove Stock Controller and Solenoid: Disconnect all wires from the stock DC controller and solenoid, labeling them clearly as you go. Then, unbolt and remove these components.
5. Unbolt and Remove the DC Motor: Disconnect the F1 and F2 cables from your DC motor. Carefully unbolt the motor from the transaxle and remove it. This is often the heaviest component, so be prepared for its weight.

Step 2: Installing the Navitas AC Motor and Controller

Now for the exciting part – bringing in the new AC power!

1. Mount the New AC Motor: Gently place the Navitas AC induction motor into position, aligning it with the transaxle. Secure it with the provided bolts. Ensure a snug fit.
2. Prepare the Controller: Apply a generous but even layer of thermal grease to the back of the TAC2 controller's heatsink. This is crucial for optimal heat transfer and cooler operation, which prolongs the life of your controller.
3. Install the Navitas Controller: Place the Navitas mounting plate in the location of your old controller, securing it using the provided holes. Then, mount the TAC2 controller onto this plate.
4. Connect Motor Cables: Connect the AC motor phase cables and the motor sensor cable to the new AC motor and controller as per the Navitas wiring diagram. Use insulator caps on motor connections to prevent electrical leaks and protect the motor.
5. Install New Heavy-Duty Solenoid: If you're upgrading your solenoid (which we highly recommend!), install the new heavy-duty solenoid in its appropriate location.

Step 3: Wiring and Final Connections

With the major components in place, it's time to connect everything and bring your new system to life.

1. Connect Main Wiring Harness: Following your reference photos and the Navitas wiring diagram, connect the main wiring harness to the controller and other components. Double-check every connection for security and correctness.
2. Install the On-The-Fly Programmer: Mount the On-The-Fly (OTF) programmer on your dash or another convenient location. Plug in its harness to the controller.
3. Reconnect Battery Pack: Once all wiring is secure and double-checked, reconnect your main battery pack, positive cable first, then negative.
4. Final Safety Checks: Before turning the key, do one last visual inspection. Ensure no wires are pinched, loose, or incorrectly connected. Make sure the run/tow switch is in the "tow" position before powering up.
5. Test the Vehicle: Turn the key, switch to "run," and slowly test the cart's functions (forward, reverse, acceleration, braking). Listen for any unusual noises and monitor performance.

Fine-Tuning Your Ride: The Navitas App & On-The-Fly Programmer

One of the most exciting aspects of a navitas ac conversion kit ezgo txt is the level of control and customization it offers. Gone are the days of fixed performance; with Navitas, your golf cart adapts to you.

Using the On-The-Fly (OTF) Programmer

The On-The-Fly (OTF) Programmer is a tactile, intuitive way to adjust your cart's performance in real-time, right from your dashboard.

• Real-Time Adjustments: This little gadget allows for live coding during runtime. You can literally turn a knob and feel the difference immediately.
• Adjusting Top Speed: Dial in your desired maximum speed, perfect for different drivers or environments.
• Modifying Acceleration: Fine-tune how quickly your cart gets up to speed, from gentle starts to aggressive launches.
• Setting Regenerative Braking Levels: Control how aggressively your cart slows down and recharges batteries when you lift off the accelerator.
• Lockout Feature for Safety: The OTF programmer often includes a key lock, allowing you to pre-set specific performance settings and "lock out" adjustments, which is ideal for younger drivers or when lending your cart.

Mastering the Navitas Bluetooth App

The Navitas Bluetooth app (available for iOS and Android) takes customization and diagnostics to a whole new level, turning your smartphone into a powerful command center for your golf cart.

• Connecting to Your Controller: Simply pair your phone via Bluetooth to your TAC2 controller.
• Built-in Speedometer & Gear Indicator: Your phone becomes a digital dashboard, displaying your current speed and gear.
• Live Diagnostics & Monitoring: Keep an eye on critical parameters like battery voltage, motor temperature, and controller temperature in real-time. The app also provides warning indicators for any faults or errors.
• Vehicle Security Lock-Out: A fantastic feature that allows you to remotely lock your cart, preventing unauthorized use.
• Advanced Settings & Customization: Adjust speed limits, input thresholds, and advanced options to personalize your driving experience. You can even save custom profiles for different drivers or terrains.
• Data Logging & Sharing: The app can log vehicle activity, allowing you to view performance graphs and even share this data directly with the Navitas support team for advanced troubleshooting.

The app truly improves the user experience, making your golf cart smarter and more responsive than ever before. For detailed tutorials and tips on using the app, make sure to Follow Navitas on YouTube for tutorials.

Frequently Asked Questions about the Navitas AC Conversion Kit

We understand you might have more questions about upgrading your EZGO TXT. Here are some of the most common inquiries we receive at Extreme Kartz.

What kind of support or warranty is offered?

Navitas is known for backing its products with an industry-leading support team. If you encounter any issues during installation or operation of your navitas ac conversion kit ezgo txt, you can typically find extensive resources online, including:

• Manuals and Installation Guides: Detailed documentation for every step of the process.
• Installation Videos: Visual aids to walk you through complex steps.
• Wiring Diagrams: Clear schematics for all connections.
• Direct Support: Navitas offers contact options via phone and email, often with a commitment to respond within two business days.
• Manufacturer Warranty: Navitas products come with a manufacturer warranty, typically 90 days or more, covering defects. Always check the specific terms at the time of purchase.

At Extreme Kartz, we are also here to assist you with any questions you have before, during, or after your purchase. For common troubleshooting tips related to golf cart controllers, refer to our Golf Cart Controller Troubleshooting: Common Problems and How to Fix Them guide.

How does the navitas ac conversion kit ezgo txt compare to other upgrades?

The navitas ac conversion kit ezgo txt stands out significantly from other upgrade options:

• AC vs. DC Motor Upgrades: A complete AC conversion replaces your entire DC motor and controller system with a modern AC equivalent. This offers a much more profound performance improvement (speed, torque, efficiency, regenerative braking) than simply upgrading a DC motor or controller alone. AC systems are inherently superior in product life and energy efficiency.
• Controller-Only Upgrades: While upgrading just your controller (e.g., to a high-amp DC controller) can provide some speed and torque gains, it still relies on the limitations of your DC motor. An AC conversion provides a holistic, synergistic upgrade.
• Piecing Together a System vs. a Complete Kit: Navitas kits are designed as system-based solutions. This means all components (motor, controller, programmer) are engineered to work together seamlessly, eliminating compatibility guesswork and ensuring optimal performance. Piecing together individual parts can lead to unforeseen compatibility issues and suboptimal results.
• System Synergy: The Navitas kit offers a fully integrated experience, with the controller, motor, and app working in harmony to deliver customizable performance, advanced diagnostics, and superior efficiency that older DC systems simply cannot match.

Where can I purchase a genuine Navitas kit for my EZGO TXT?

To ensure you receive an authentic navitas ac conversion kit ezgo txt and the best possible support, we recommend purchasing from authorized dealers like us, Extreme Kartz.

• Authorized Dealers: Purchasing from an authorized retailer guarantees you're getting a genuine Navitas product, eligible for manufacturer warranty and support.
• Ensuring Authenticity: Beware of unusually low prices from unverified sellers, as these might indicate counterfeit or grey-market products that won't be covered by warranty or supported by Navitas.
• Importance of Proper Fitment: An authorized dealer will also have the expertise to help you confirm the correct kit for your specific EZGO TXT model, ensuring proper fitment and avoiding costly returns.
• Extreme Kartz Advantage: As an eCommerce authority specializing in golf cart upgrades, we pride ourselves on providing clear fitment accuracy and guiding our customers to the right solutions. We focus on system-based solutions and ensuring you have all the information needed for a successful upgrade. Kits ship in 1-2 business days.

Conclusion

Converting your EZGO TXT with a navitas ac conversion kit ezgo txt is more than just an upgrade; it's a complete change. We've seen how this modern AC power system releasees the true potential of your golf cart, delivering exhilarating speeds, robust torque for any terrain, and extended battery life through superior efficiency and regenerative braking.

This isn't just about going faster; it's about a smoother, more controlled, and ultimately more enjoyable driving experience, all customizable at your fingertips with the On-The-Fly Programmer and intuitive Bluetooth app. It's the ultimate DIY upgrade for your EZGO TXT, turning your ride from standard to spectacular.

Ready to experience modern AC power and leave those sluggish DC days behind? We're here to help you steer the options and choose the perfect kit for your needs.

Explore our EZGO TXT AC Conversion Kits and start your journey to a high-performance golf cart today!
