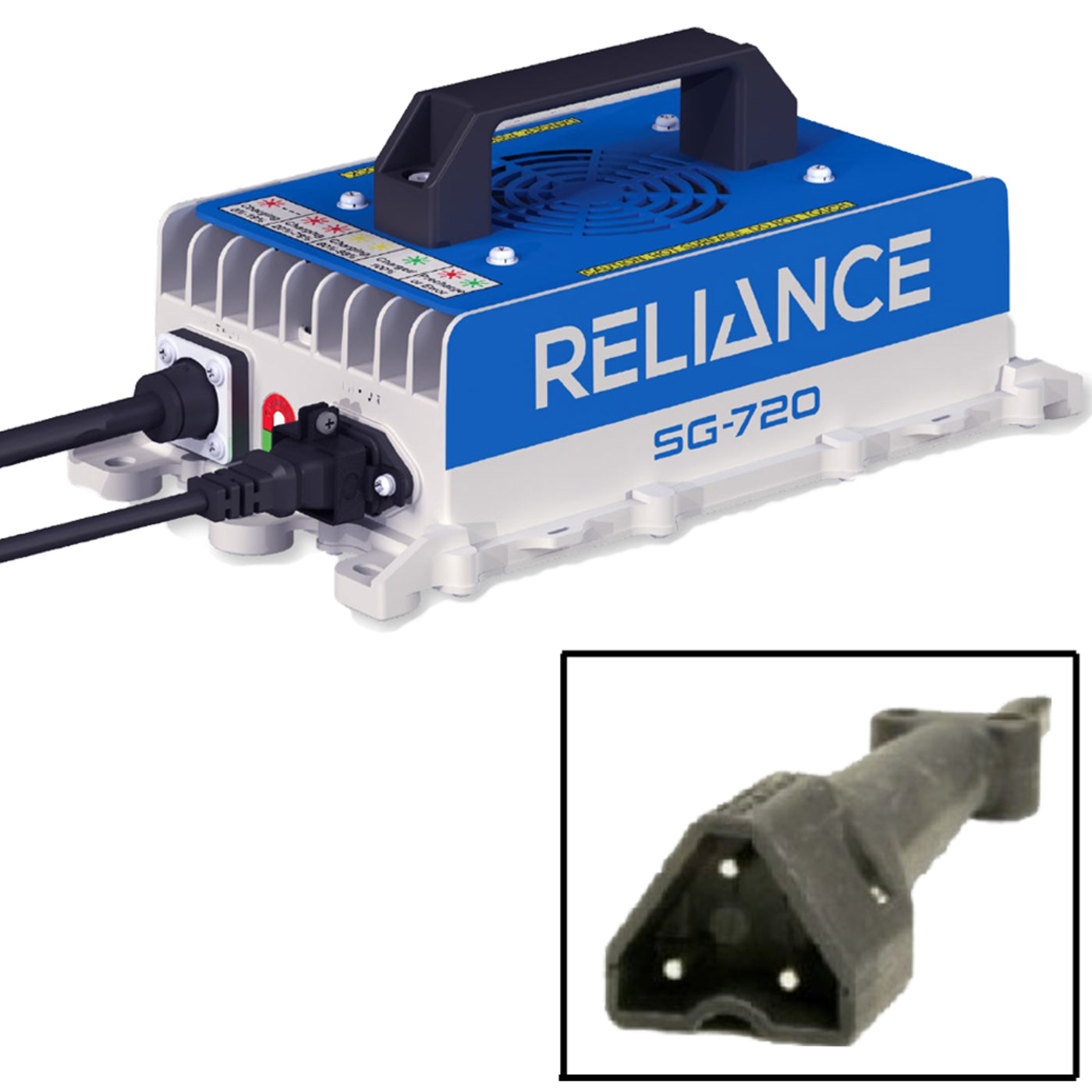

RELIANCE™ EZGO RXV/TXT/Express 48V Lead-Acid Battery Charger SG-720

Reliance SG-720 Industrial Battery Charger for 48V EZGO TXT / RXV / Express

The Reliance SG-720 is a high-frequency, industrial-grade charger designed specifically for deep cycle flooded lead-acid battery systems. This smart charger optimizes battery life through a multi-stage charging profile and automated maintenance modes.

Key Features

• Optimized Performance: Specifically tuned for peak performance with top battery brands like Trojan, JCI, Crown, and U.S. Battery.
• Smart "Float" Technology: Automatically monitors battery voltage and restarts charging every 30 days or when the charge drops to 80% to ensure your vehicle is always ready to use.
• High Efficiency: Features an efficiency rating of over 94.0% and a power factor greater than 0.98 for lower energy consumption.
• Durable & Weather Resistant: Boasts an IP65 Ingress Protection rating and is built with an aluminum base for various mounting configurations.
• Comprehensive Safety: Equipped with built-in protection against over-temperature, reverse polarity, short circuits, and no-load conditions.

Technical Specifications

• Voltage Options: Available in 36V (20A output) or 48V (15A output) configurations.
• AC Input: Wide range of 90-120 VAC, ensuring stable operation even with minor power fluctuations.
• Dimensions: 10.6" L x 6.2" W x 4.5" H (with handle).

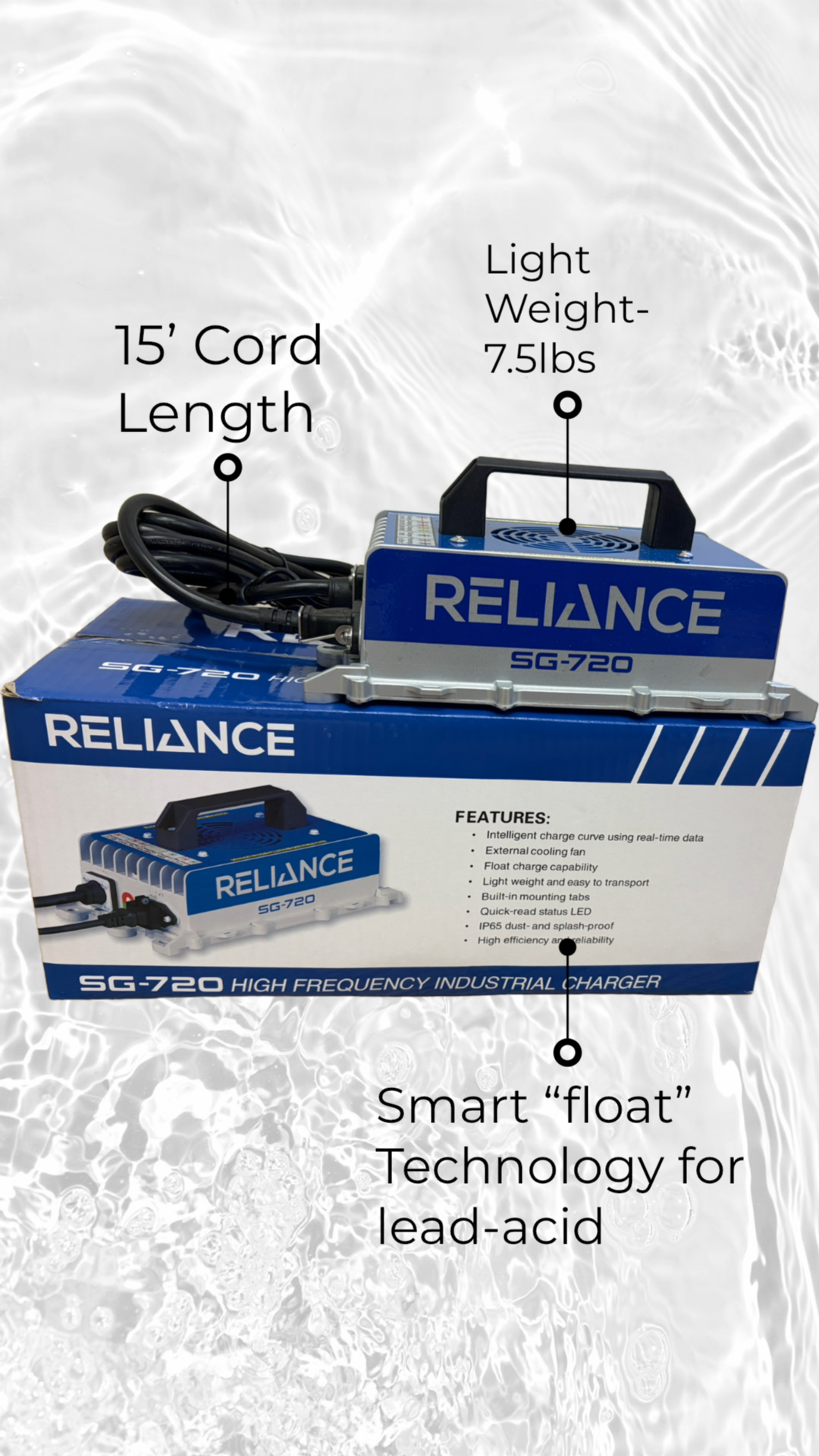

• Portability: Weighs only 7.5 lbs and includes 7ft AC and DC cords for total reach of 15 ft long.

Important Compatibility Notes

• Battery Type: For use ONLY with flooded lead-acid batteries. Not for use with AGM, Gel, or VRLA (sealed) batteries.
• Mounting: Should be installed on non-combustible surfaces like metal, brick, or concrete.
• Manual Interlock: Note that this charger does not activate vehicle interlock; always disconnect the DC paddle before moving the vehicle.

Warranty & Support

• Includes an 18-month limited warranty for the original purchaser.
• Full replacement coverage for manufacturer defects within the warranty period.

Fitment:

ONLY for flooded lead-acid battery use
