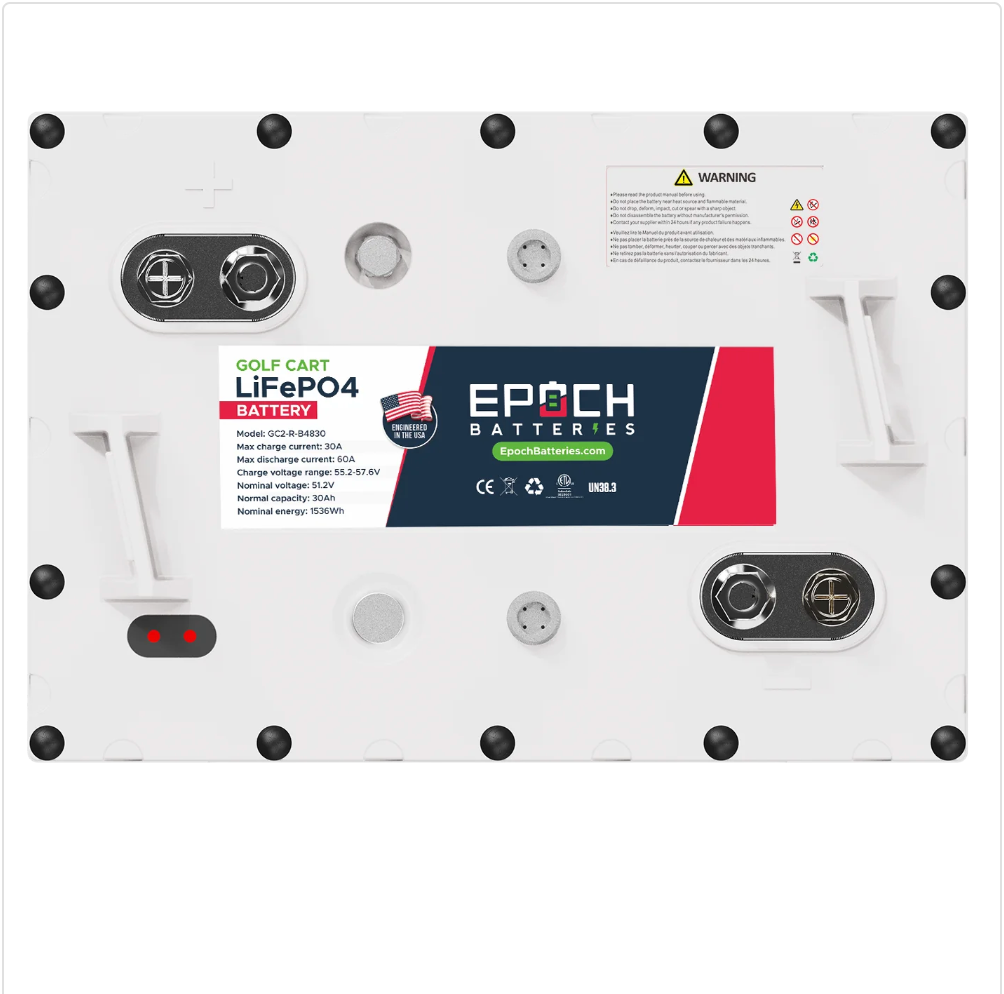

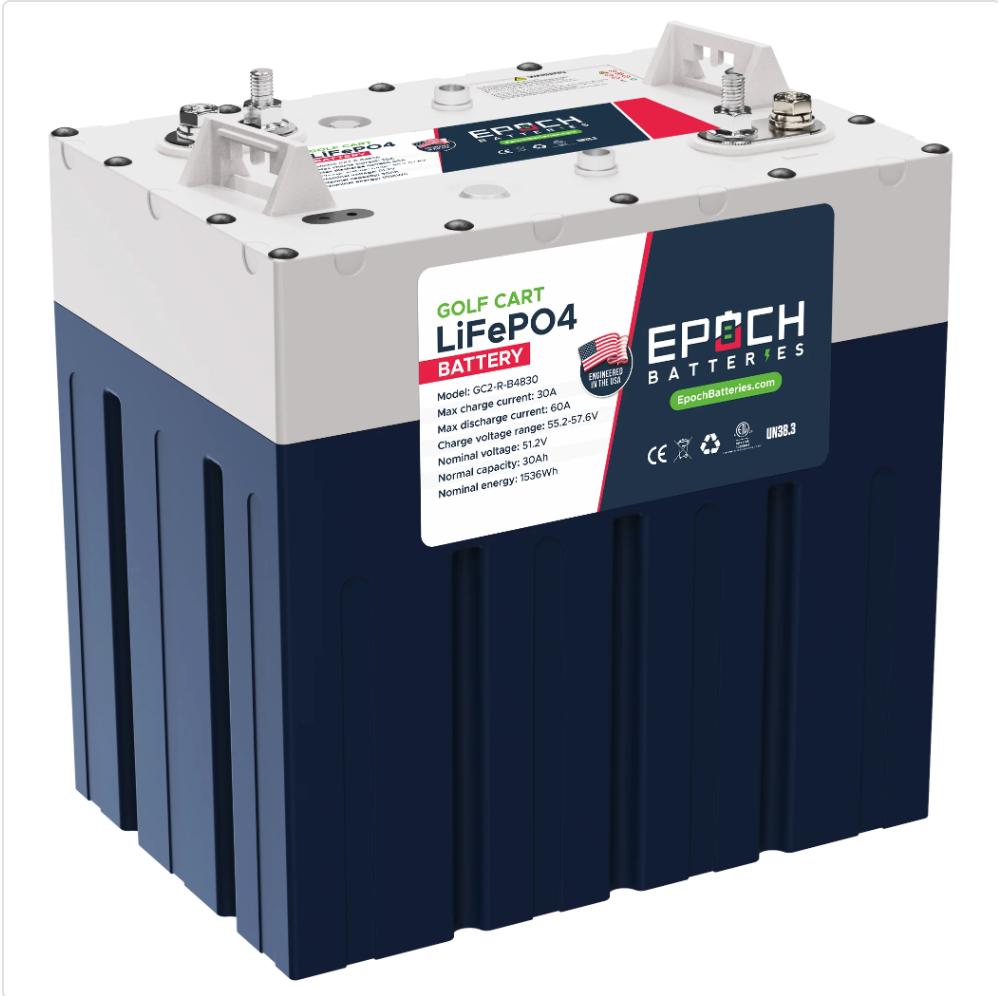

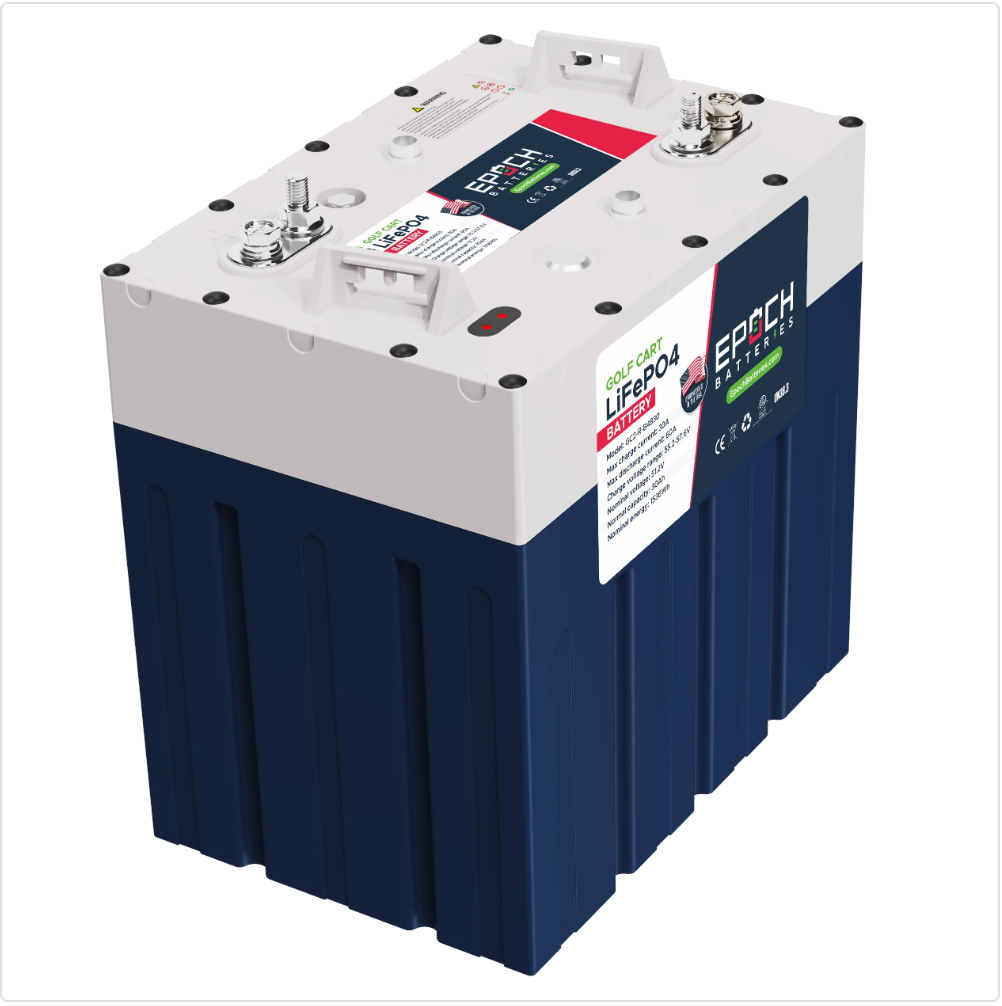

Epoch 48V 30Ah GC2 - Golf Cart LiFePO4 Individual Lithium Battery

48V 30Ah GC2 - Golf Cart LiFePO4 Lithium Battery

Upgrade your golf cart game effortlessly with the Epoch 48V Golf Cart Lithium Battery – the drop-in ready solution that brings superior battery performance without breaking the bank. This lithium powerhouse not only slashes the cost and weight but also offers a seamless upgrade for your golf cart. Experience the future of energy efficiency with Allied Battery – where great performance meets affordability in perfect harmony.

Key Features:

• LiFePO4 Chemistry
• 30Ah Capacity
• 60A Max Continuous (100A 10S Pulse) (200A 3S Pulse)
• IP67 Rated, Dust and WATERPROOF
• CAN Bus Communication
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• 4000+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Weights & Dimensions

Weight: 33(LBS)
Dimensions: 10.2 x 10.7 x 7.1 (inches

Specifications:

• CONFIGURATION
  • Cell Configuration: 16S
  • Chemistry: LiFePO4
• CURRENT
  • Ah Capacity: 30Ah
  • Max Charge Current Amps: 30A
  • Max Discharge Peak Current Amps: 100A (10 Seconds) - 200A (3 Seconds)
  • Series | Parallel: Max (10) in Parallel = 300 Amp Hours
• VOLTAGE
  • Voltage: 51.2V Nominal
  • Max Charge Voltage: 57.6V
  • Operating Voltage Range: 40.0 - 57.6V
• TEMPERATURE
  • Charge Temp Range: 0°C (32°F) / 55°C (131°F)
  • Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
  • Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)

Additional Information

• M8 Terminals - Torque Tension Recommendation is 8-12N·M
• Pack Certifications: UN38.3, CE
• Cell Certifications: UL1642, UL2580, UN38.3

Resources
Click on the links to view/download additional Resources.

• User Manual
• Data Sheet
