Yamaha Golf Cart Roof: Find Compatible Replacement Tops

Selecting the Right Yamaha Golf Cart Roof for Your Model

Finding a replacement canopy starts with identifying your specific Yamaha chassis. Yamaha has engineered several distinct platforms over the decades—most notably the G-Series (such as the G14, G16, G19, and G22), the G29 (Drive), and the newer Drive2 models. While these carts share Yamaha's reputation for smooth operation, their canopy mounting points and cowl profiles vary.

When selecting a canopy, consider both the model year and your passenger seating capacity. Standard setups accommodate two passengers, while rear-flip seat kits and multi-row stretch builds require extended tops to shield rear occupants from sun and rain.

Choosing the right canopy involves pairing the shell with proper front and rear mounting hardware. Two-passenger carts generally use factory-style uprights, whereas four-passenger and six-passenger setups rely on extended rear struts—often called candy cane struts—or seat-frame-mounted brackets. By matching your Yamaha model, passenger configuration, and strut package before purchasing, you ensure a secure, rattle-free installation that aligns with factory mounting locations.

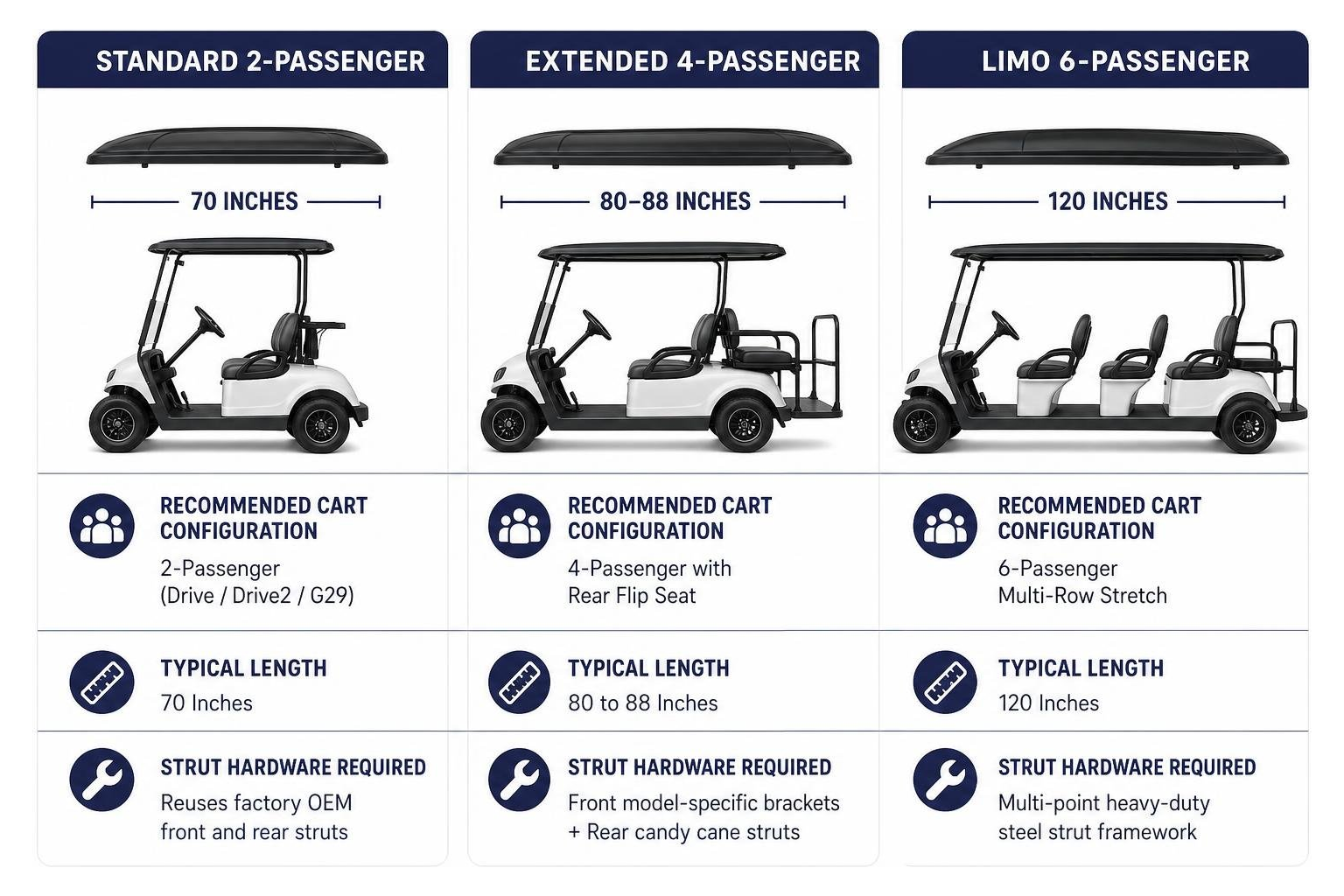

Standard 2-Passenger Yamaha Golf Cart Roof Sizing

If your Yamaha Drive, Drive2, or G29 retains its factory two-passenger configuration, a standard 70-inch replacement canopy is the direct OEM match. Molded from UV-resistant thermoformed plastic, these roofs provide balanced overhead coverage from the front cowl to just behind the front seat backrest.

A major advantage of standard 70-inch tops is ease of installation. They are designed to bolt directly to your cart’s existing OEM front and rear struts without drilling, cutting, or custom fabrication. A standard top is light enough for one or two people to install in under half an hour using basic hand tools. Standard OEM-style Yamaha golf cart tops offer an efficient way to refresh cracked, faded, or weathered factory canopies while maintaining the vehicle's original lines.

Extended 4-Passenger and 6-Passenger Yamaha Roof Options

Adding a rear flip-seat kit turns your Yamaha into a four-passenger cruiser, but a standard 70-inch roof leaves rear passengers completely exposed to the elements. Upgrading to an extended canopy provides complete overhead coverage for everyone on board.

For four-passenger carts, 80-inch, 84-inch, and 88-inch canopies extend protection over the rear seating area. The DoubleTake 80-inch top with Kwick-Track rail system is a popular choice for Yamaha Drive and Drive2 owners, engineered to combine rigid overhead strength with built-in channels for modular accessory mounting. If you need maximum shade on a four-passenger layout, an 88-inch extended top—such as the Golf Cart RHOX Universal 88-inch Extended Roof Top in black—provides extra rear overhang.

For commercial shuttles, resort vehicles, or custom six-passenger builds, extended canopies scale up to 120 inches. Tops like the 120 RedDot Versa triple track top provide seamless, one-piece coverage across three rows of seating, eliminating gaps that let in water.

Note: Dimensions are accurate as of publish; please confirm exact specifications on the product page for your cart.

Canopy Materials and Integrated Track Mounting Systems

Modern golf cart tops are engineered to withstand continuous outdoor exposure. While early canopies often used thin, brittle plastics prone to sun bleaching and hairline cracking, high-grade replacement tops utilize heavy-duty ABS composite or high-impact thermoformed polymers infused with UV inhibitors. These materials resist warping in high summer heat and remain resilient against low-hanging branches on wooded trails.

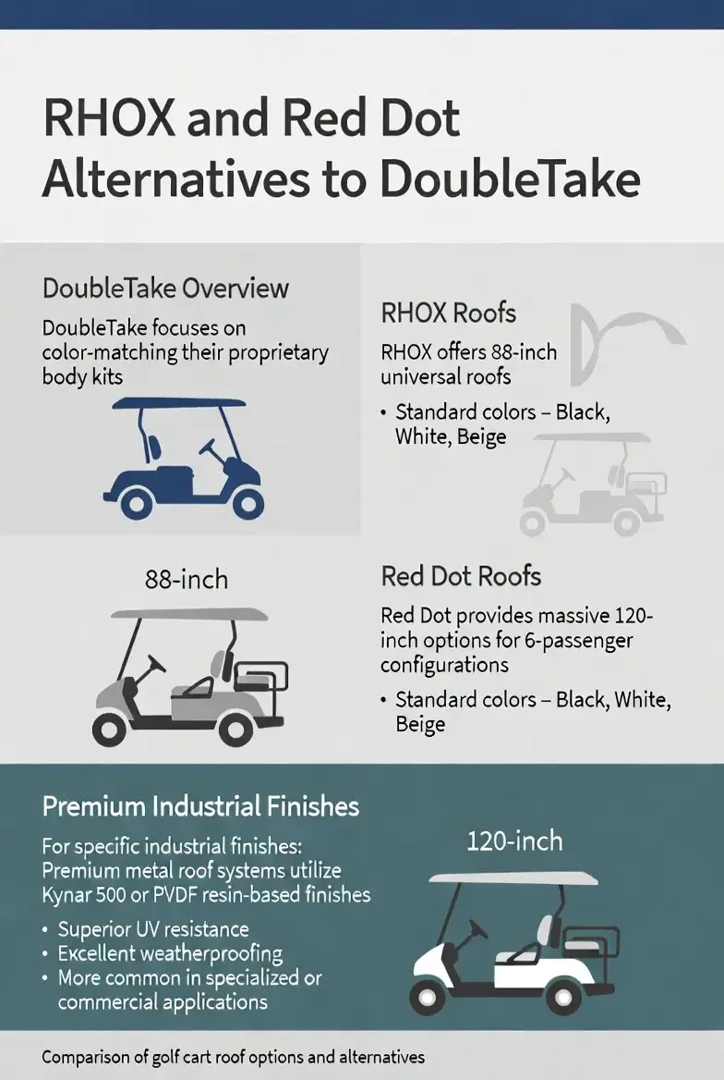

A key innovation in modern roof design is the integrated track system. Extrusions such as the DoubleTake Kwick-Track and the RedDot Triple Track feature dedicated channels built directly into the underside or perimeter of the roof frame.

Instead of snapping or strapping accessories over the top of the plastic—which can scratch the finish and cause water leaks—integrated track systems allow you to slide weather enclosures, storage valances, and overhead storage options smoothly into dedicated retention slots. This design creates a weather-tight seal and a clean appearance.

Strut Kits and Rear Seat Hardware Compatibility

An extended roof requires rigid support to prevent flexing and vibration at driving speeds. When upgrading to an 80-inch, 84-inch, 88-inch, or 120-inch canopy, the factory rear uprights must be replaced with extended struts designed for your cart's rear seat setup.

• Candy Cane Rear Struts: Standard curved tubular struts that attach to the rear footwell or armrests and curve upward to support the back of an 80-inch to 88-inch roof.
• Seat-Specific Bracket Kits: Brackets engineered for specific rear seat frames, such as RedDot/MadJax Genesis 250 and 300 kits or DoubleTake MAX5/MAX6 systems, ensuring the strut matches the exact mounting width of the seat kit.
• Stretch Support Frameworks: Extended 6-passenger configurations, such as a cart built with a Yamaha Drive bolt-on stretch kit, require continuous multi-strut supports to bear the weight of a 120-inch canopy.

Proper strut selection prevents roof sway and ensures that vibration remains low on uneven terrain. For a broader look at available canopy lengths and compatible support hardware, see our extended tops collection.

Weather Enclosures, Storage Covers, and Valance Upgrades

Pairing your canopy with an all-weather enclosure turns your Yamaha into a year-round vehicle, keeping wind, rain, and cold air out of the cabin.

For carts equipped with track-style canopies, custom-fitted enclosures offer the cleanest integration. The RedDot Chameleon track-style enclosure for Drive2 slides directly into the canopy's track channels. This eliminates gap-induced drafts and allows individual side and rear panels to roll up securely when the weather clears.

To personalize your cart's styling, you can pair these systems with a decorative Drive 2 outdoor fabric valance or a RedDot 3-sided enclosure valance made from durable outdoor-rated fabric.

When your cart is parked between uses, protecting the entire vehicle from moisture, dust, and UV exposure is straightforward with a full-length storage cover for carts with an 80-inch top. These covers slip completely over the extended canopy and rear seating assembly, extending the life of your seats and roof finish.

Step-by-Step Installation and Freight Delivery Guidelines

Installing a replacement or extended roof on a Yamaha golf cart is a manageable DIY project requiring standard hand tools—such as a socket set, open-end wrenches, and a screwdriver.

1. Park on Level Ground: Engage the parking brake and switch the cart's Tow/Run switch to "Tow" (for electric carts) or disconnect the battery.
2. Remove the Old Canopy: Unbolt the hardware securing the roof to the front and rear struts. With a helper, lift the canopy away from the cart.
3. Install Upgraded Struts (if using an extended top): If installing an 80-inch, 84-inch, or 120-inch top, remove the factory rear struts and install your extended candy cane or seat-frame-specific uprights. Keep the mounting hardware finger-tight during initial positioning.
4. Position the New Canopy: Carefully lift the new roof onto the front and rear supports. Align the molded mounting holes with the strut brackets.
5. Secure and Tighten Hardware: Thread all bolts, washers, and locknuts through the mounting points. Once all hardware is seated correctly, tighten the fasteners evenly to prevent localized stress on the composite shell.
6. Verify Overhead Clearance: If your cart features a lift kit or larger off-road tires, measure the new total vehicle height to ensure adequate clearance for your garage door opening or trailer.

Because extended golf cart canopies exceed standard parcel shipping dimensions, they are classified as oversized items and ship via LTL freight on pallets to prevent transit damage. Our published handling time is 1–3 business days, with typical freight transit times running 3–7 business days after handling. Freight transit and oversized-item lead times are confirmed at checkout; check the applicable product page for the current lead time.

Frequently Asked Questions About Yamaha Golf Cart Canopies

Can I reuse my factory OEM struts when replacing a Yamaha Drive roof?

Yes, if you are replacing the factory canopy with a standard 70-inch OEM-style replacement top on a 2-passenger Yamaha Drive or Drive2, the replacement shell is designed to bolt directly to your original front and rear factory struts. If you are upgrading to an extended 80-inch, 84-inch, or 120-inch canopy to cover a rear seat kit, you will need to replace the rear struts with extended candy cane struts or seat-specific mounting brackets.

How do I choose between an 80-inch and an 84-inch extended top for a 4-passenger cart?

The choice depends on your rear seat design and accessory plans. An 80-inch canopy provides balanced coverage that shields rear passengers while maintaining a compact, sporty profile. An 84-inch top offers additional rear overhang, making it ideal if you frequently carry taller passengers in the rear or want extra rain protection. Additionally, ensure your choice matches your planned enclosure system, as track-mounted enclosures are cut to specific canopy lengths.

Will adding an extended roof affect my golf cart's garage clearance?

An extended roof mounts at roughly the same height as a factory canopy, but because it extends further back over the rear seat, the rear profile can sit slightly higher depending on the angle of the rear struts. If your cart also has a suspension lift kit or taller all-terrain tires, measure the total clearance from the floor to your garage door opening before ordering. Standard residential garage doors range from 7 to 8 feet in height, which easily accommodates most extended-roof carts.

Conclusion

Upgrading or replacing your Yamaha golf cart roof is one of the most effective ways to enhance rider comfort, protect your interior, and prepare your cart for seasonal accessories like enclosures and overhead storage. Whether you need a standard 70-inch top for neighborhood rounds or an extended 80-inch, 84-inch, or 120-inch canopy for passenger hauling, choosing the correct model-specific struts and materials ensures lasting reliability.

We invite you to explore our full selection of Yamaha parts and accessories to find the right canopy, strut brackets, and enclosures tailored to your cart's build. For personalized recommendations on model fitment or strut compatibility, contact our knowledgeable support team at Extreme Kartz today.
