Navitas Star EV 48V 600A 5kW AC-DC Conversion Kit - Replaces 1268 Non-ITS

Fits:

• • Fits Star carts with Curtis 1268 controller.
  • Excludes Factory Lithium Models / Will work with aftermarket drop in lithium packs, such as Roypow and Relion

Pre Purchase Checklist:

• • Ensure your cart is equipped with a Curtis 1268/1520 Controller.
  • Use a heavy-duty solenoid for controllers rated at 440 amps or higher.
  • Check Lithium battery discharge specifications to match Navitas controller amperage requirements; insufficient ratings may require reducing controller amperage.
  • Match controller amperage with battery output:
    • 440 amp controller with a 400 amp output battery,
    • 600 amp controller with a 600 amp output battery.
  • Carts using lead acid batteries should use heavy-duty battery cables, ideally 4 gauge or larger.

Kit Features:

• • Comprehensive conversion kit for transitioning from DC to AC system
  • Utilizes advanced 600A Mosfet technology for optimal performance
  • Regen braking control in both forward and reverse, enhancing safety on inclines
  • "Lock out feature" for securing settings to manage power and speed effectively
  • Thermal protection
  • Motor thermal protection
  • Fully sealed with IP5X rating for durability and reliability
  • Offers OEM multi-platform mounting options for versatile installation
  • Bluetooth programmable with features such as
    • OEM App
    • Dealer App
    • End User App
    • One Button Cart lock-out
  • Rollback protection
  • Speed-limiting capability for added control and safety

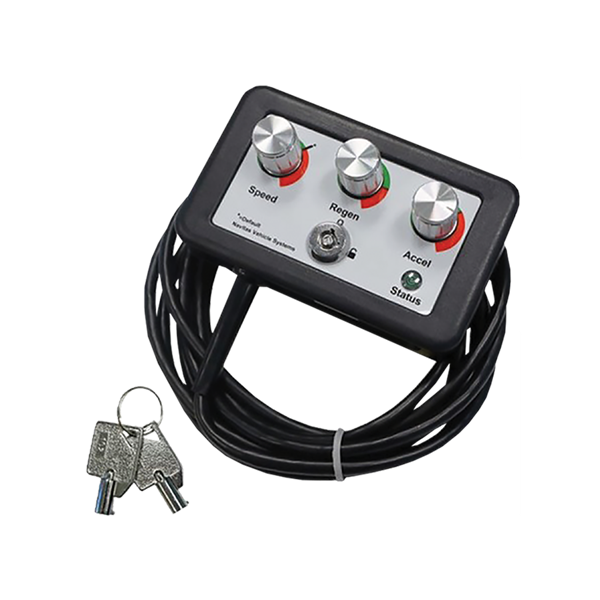

  • On-the-fly programmer allows adjustments to
    • Maximum Speed
    • Regen Control
    • Acceleration

Please Note: We recommend 2ga Cables & High Amperage Solenoid with this kit

Navitas App Features:

• • Built-in speedometer
  • Gear indicator
    • Forward
    • Neutral
    • Reverse
  • One-click Car Lock Out feature
  • Live battery voltage, motor and controller temperature monitoring
  • Provides alerts that you can send directly to your technician/dealer by email

Kit Includes:

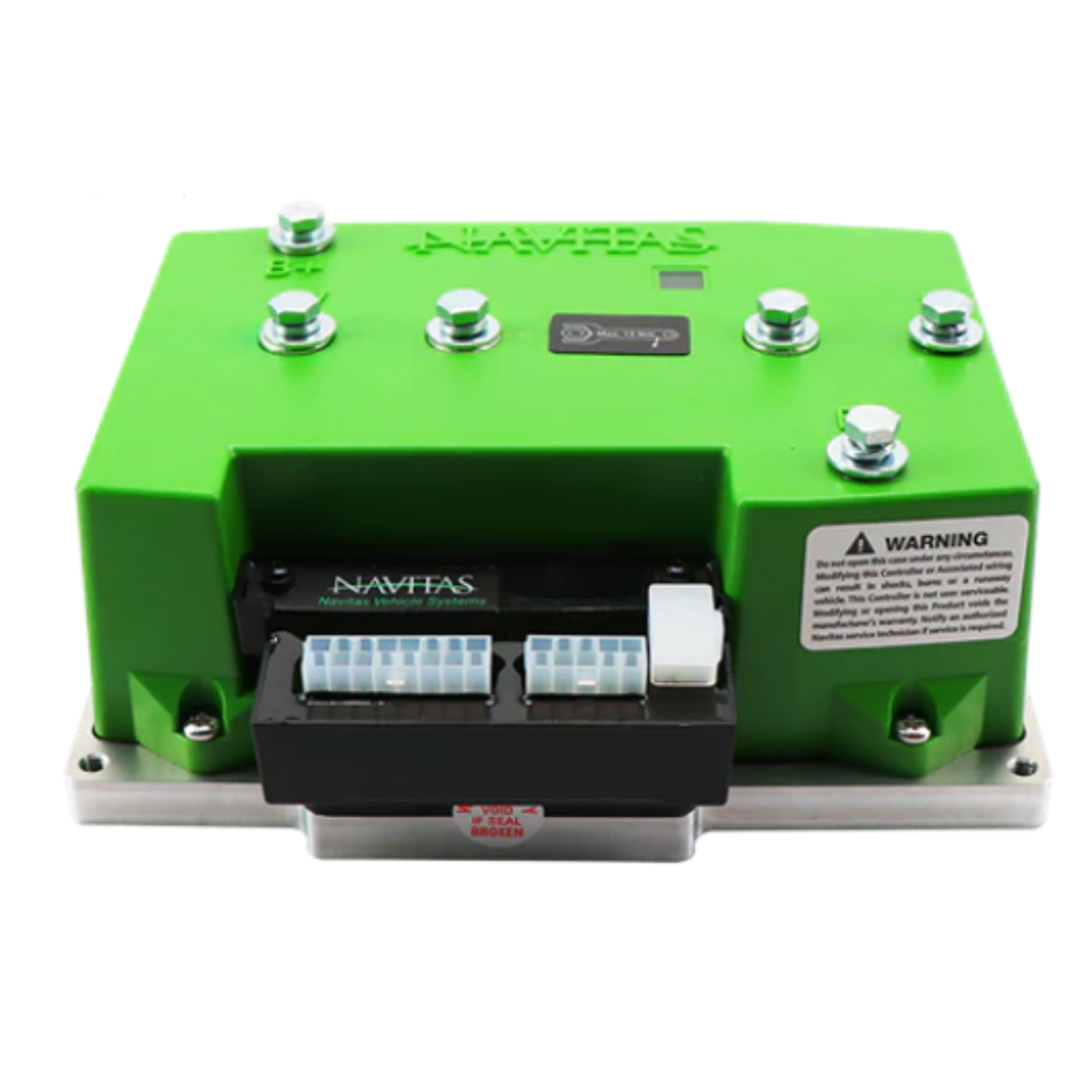

• • 600 Amo Navitas Controller
  • OEM Specific Harness

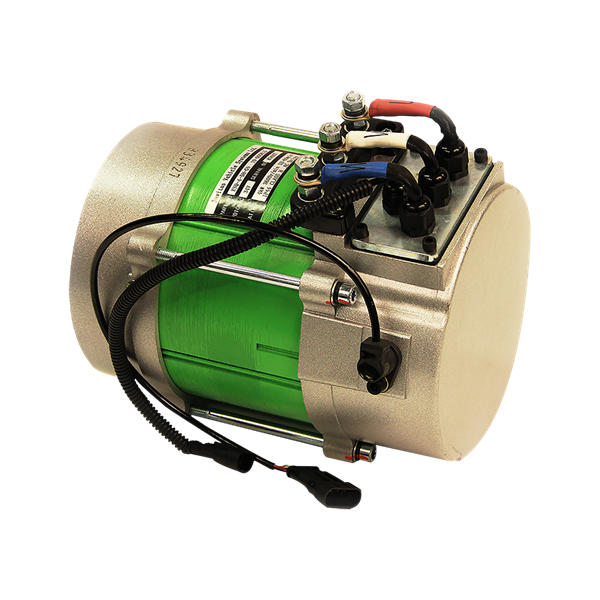

  • 5kw AC Motor
  • AC Phase Wire
  • Motor Sensor Cable
  • Mounting Plate
  • On the Fly Programmer

Please Note: The Navitas app is available for Apple IOS and Android phones and tablets

Install Tips From a Pro:

• Take pictures of current wire locations and positioning before starting to install. (This will help if you forget where a wire or connection goes)

• Taking the rear passenger tire off can help with installing the motor. (This will give you more space and maneuverability to get the motor on the splined shaft.)

• Download Navitas App and configure your controller to your cart. (This will make your motor and controller run as efficiently as possible.)

Cross-over reference:

• SKU: 10-000891-08
• SKU: 25-090

SPECIFICATIONS:
