Epoch Batteries

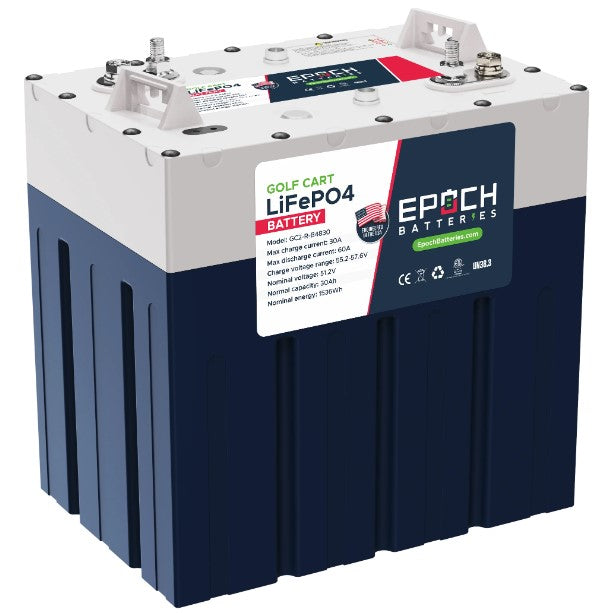

Epoch 48V Golf Cart Lithium Battery Kit (30ah drop-ins)

Epoch 48V Golf Cart Lithium Battery Kit (30ah drop-ins)

SKU : 48V-60AH-GC2-KIT

Regular price $1,699.00
$1,699.00 Regular price $2,074.00 Sale price
(18% Off)
On Sale Sold out
Ships in 1-3 Days

Back To Product Page

  • #1 in Product Expertise
  • Best Price Guaranteed
  • Fast Shipping
View full details
  • Description

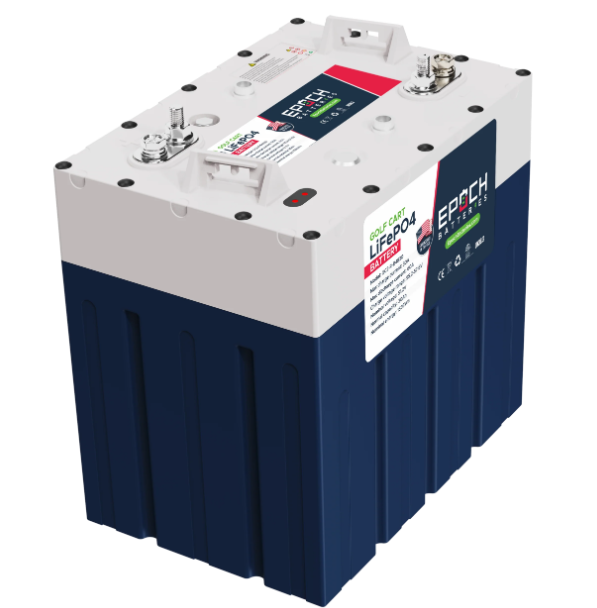

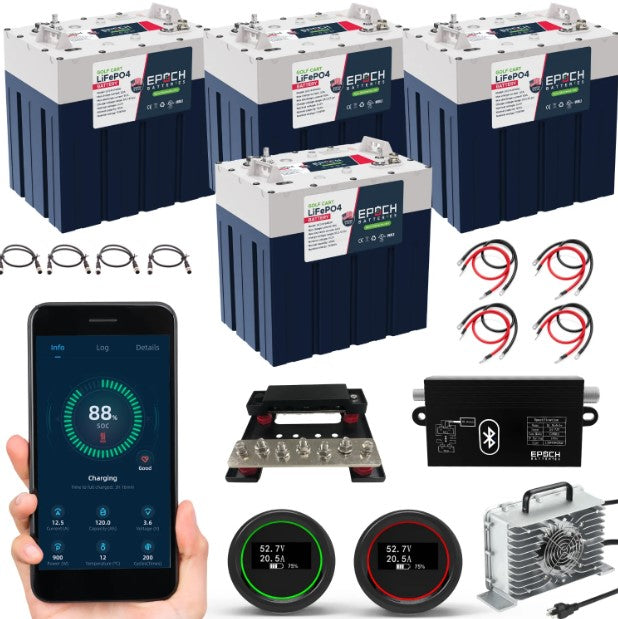

Epoch 48v Golf Cart Lithium Battery Kit (30ah drop-ins)

Epoch Batteries has come out with one of the best golf cart lithium solutions on the market. Reason being, it has a strong BMS that can handle big hills and high performance controllers, while being drop-in ready makes for an easy install. Not to mention its affordable price point. Customers like how if they aren't satisfied with the range they are getting, they can simply add-on another 30ah Epoch battery to instantly give them another 10-20 miles per charge.

What's the Best Kit for Me?

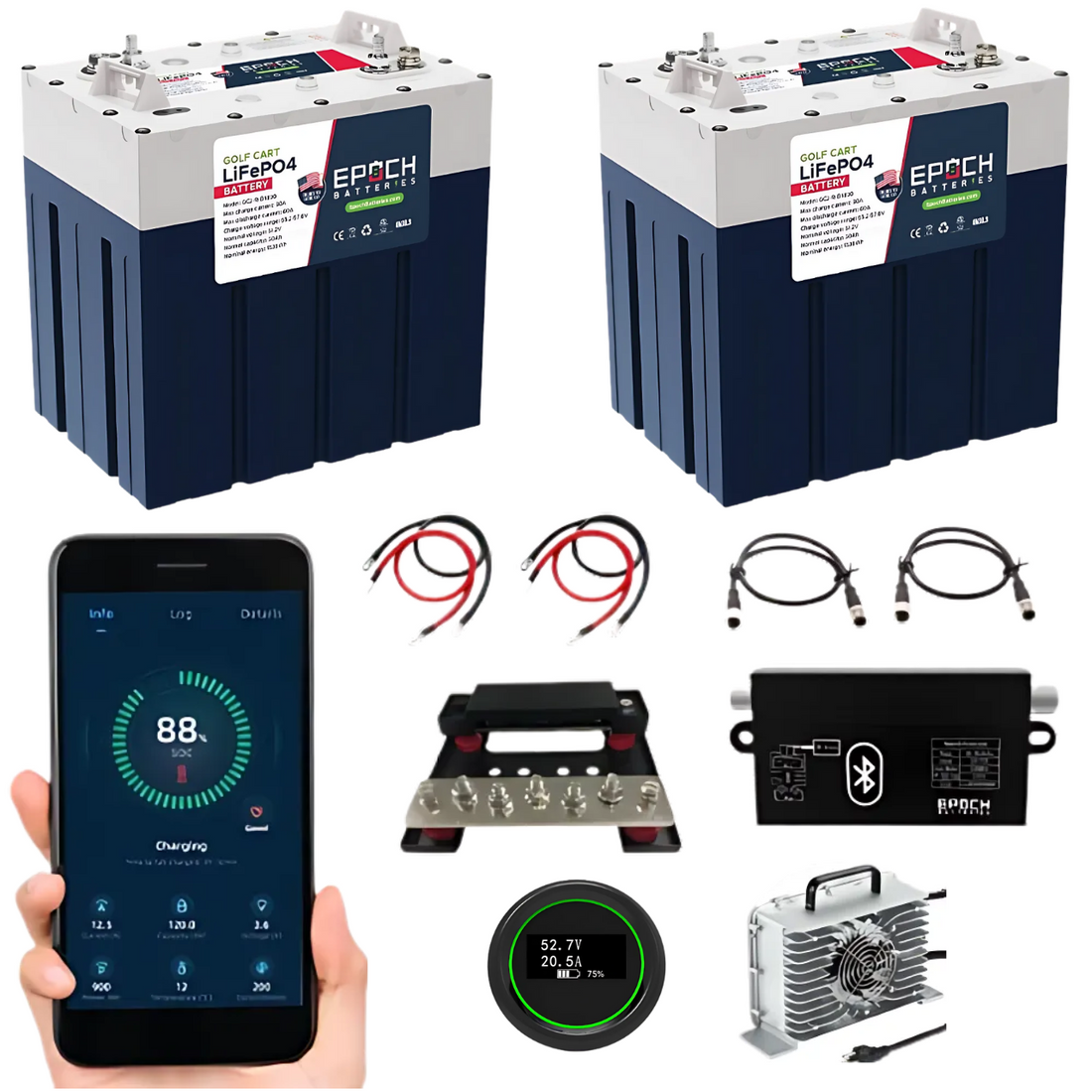

60ah (2x30ah)

  • Compatible with stock golf carts (RXV stock carts, or any other stock carts with a controller 300amp or higher, will need 90ah)
  • 200A 10 seconds, 400A 3 seconds max discharge
  • Range: 20mi-25mi

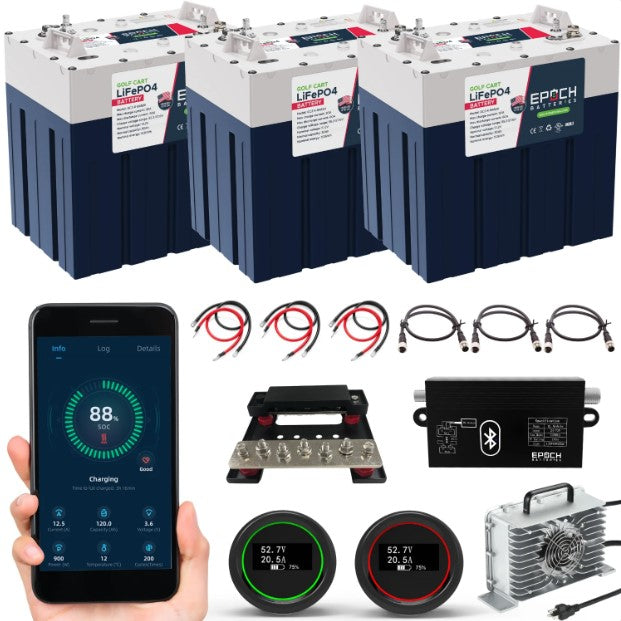

90ah (3x30ah)

  • Compatible with stock & upgraded golf carts
  • Modified/Upgraded controller
  • Large tires with a lift kit
  • 300A 10 seconds, 600A 3 seconds max discharge
  • Range:30mi-40mi

120ah (4x30ah)

  • Compatible with stock & upgraded golf carts
  • Modified/Upgraded controller
  • Large tires with a lift kit
  • 6 seat carts (People Movers)
  • 400A 10 seconds, 800A 3 seconds max discharge
  • Range: 40mi-50mi

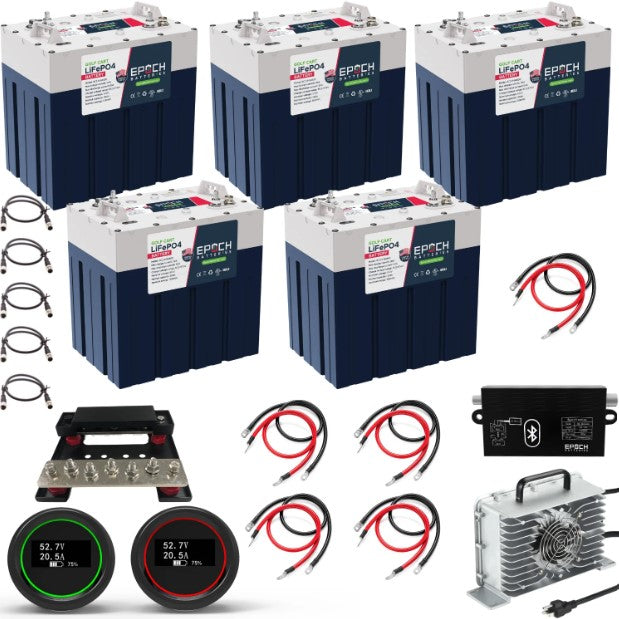

150ah (5x30ah)

  • Compatible with stock & upgraded golf carts
  • Modified/Upgraded controller
  • Large tires with a lift kit
  • 6 seat carts (People Movers)
  • 500A 10 seconds, 1000A 3 seconds max discharge
  • Range:50mi-60mi

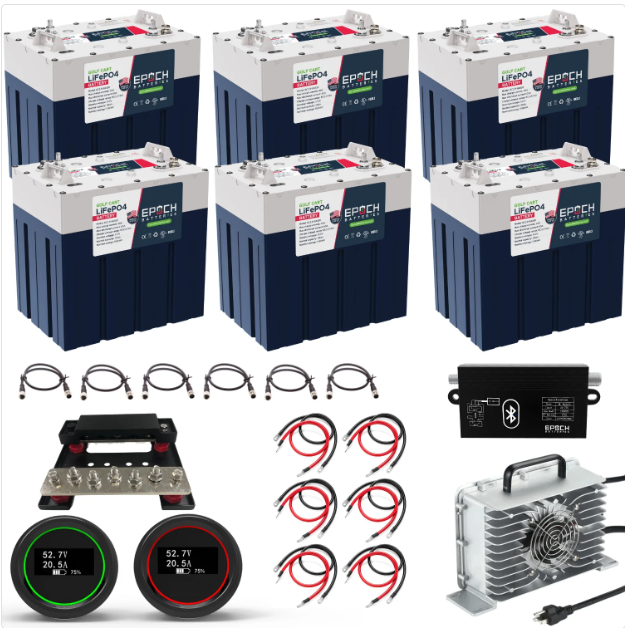

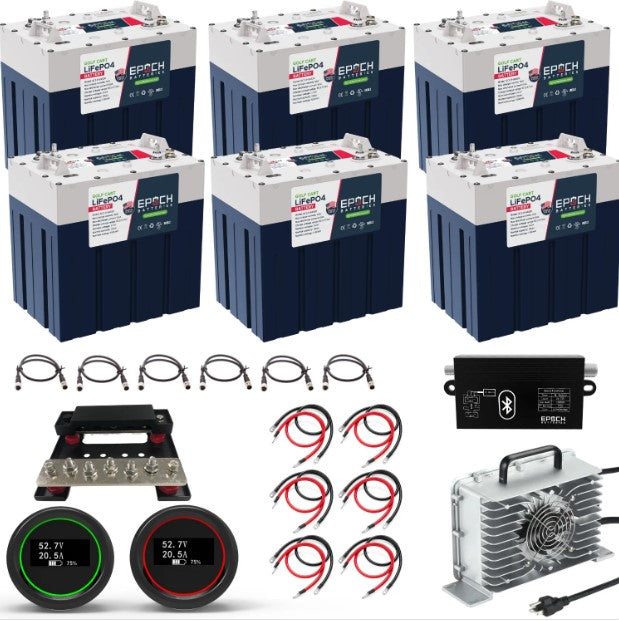

180ah (6x30ah)

  • Compatible with stock & upgraded golf carts
  • Modified/Upgraded controller
  • Large tires with a lift kit
  • 6 seat carts (People Movers)
  • 600A 10 seconds, 1200A 3 seconds max discharge
  • Range: 60mi-70mi

Features:

  • LiFePO4 Chemistry
  • Want more range in the future? Just add another 30ah battery to your existing Epoch Battery setup
  • 360A Max Continuous Discharge (600A 10S Peak Discharge). This is superior to other lithium drop-in batteries, and even exceeds that of many commercial bank batteries
  • 0 to 100% Charge in 8 hours with included 48V 22A Charger
  • IP67 Rated, Dust and WATERPROOF
  • CAN Bus Communication allows battery modules to work in sync
  • Built-in Smart Battery Management System (BMS)
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • 4000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty
Weights & Dimensions:
Weight: 33 (LBS) (per module x6)
Dimensions: 10.2 x 10.7 x 7.1 (per module x6) (inches)
Specifications:
CONFIGURATION
Cell Configuration: 16S
Chemistry: LiFePO4
CURRENT
Ah Capacity: 180Ah
Max Continuous Discharge Amps: 360A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 600A (10 Seconds) - 1,200A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
VOLTAGE
Voltage: 48
Max Charge Voltage: 57.6V
Operating Voltage Range: 40.0 - 57.6V
TEMPERATURE
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)
Additional Information
M8 Terminals - Torque Tension Recommendation is 8-12N·M
Pack Certifications: UN38.3, CE
Cell Certifications: UL1642, UL2580, UN38.3
