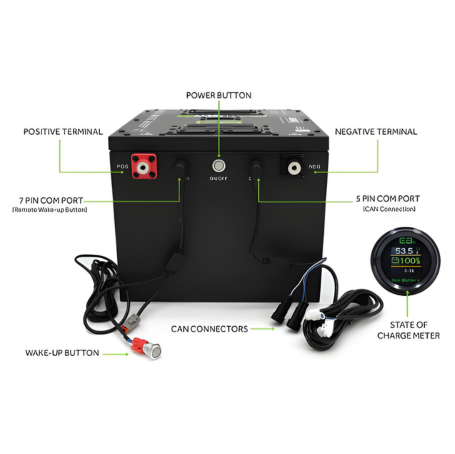

Eco Battery Accessories Terminals

+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21
+ 21

Eco Battery 70V 105Ah Lithium Battery Bundle

Product Images & Videos

Eco Battery

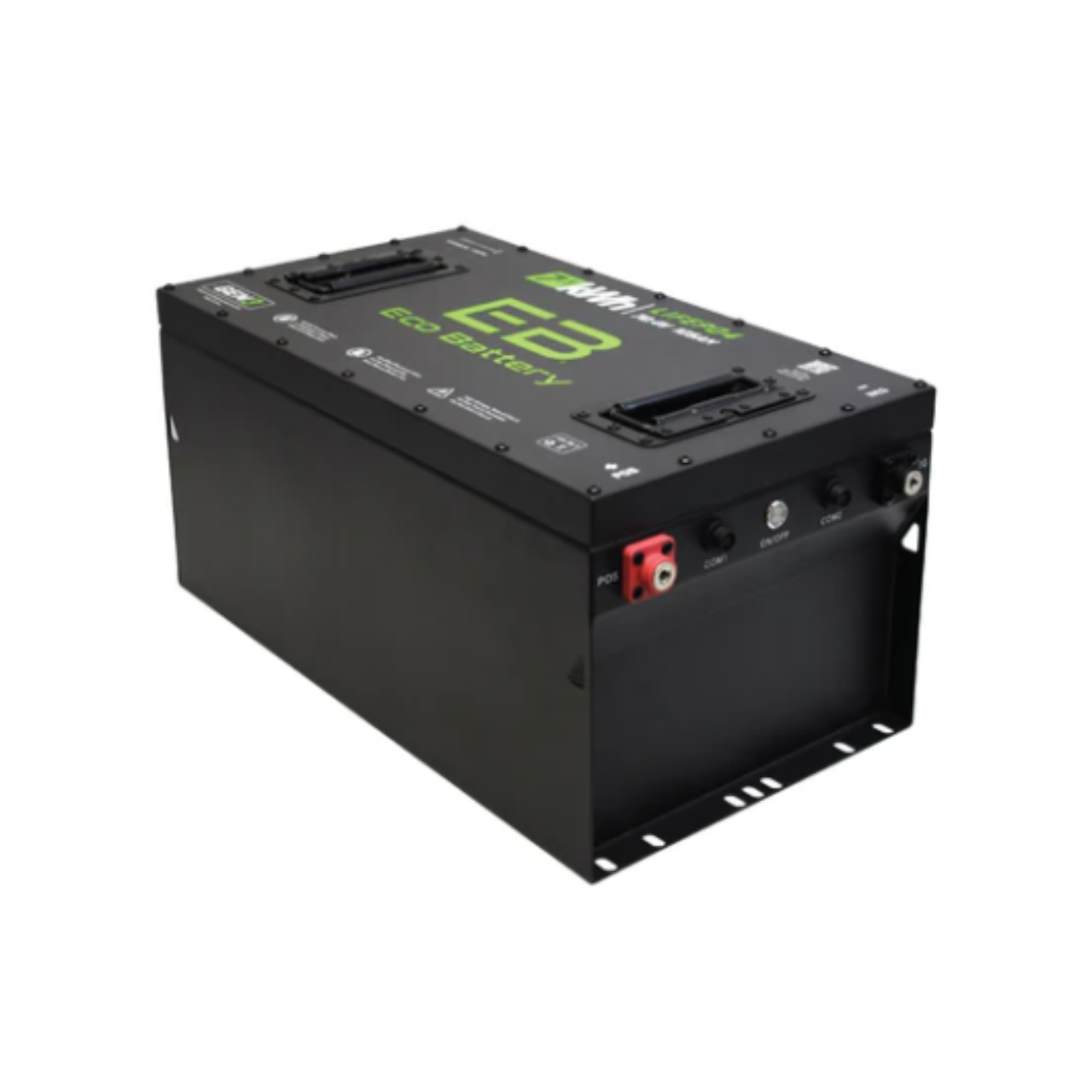

Eco Battery 70V 105Ah Lithium Battery Bundle

SKU : 70v-105ah-Bundle-B-3354

$3,321.00

$3,321.00 ~~$3,938.75~~

(16% Off)

On Sale Sold out

Ships in 1 Day

Experience unmatched power and efficiency with the industry's easiest 70V lithium installation.

Quantity

#1 in Product Expertise
Best Price Guaranteed
Fast Shipping

View full details

Description
Specifications
Resources
What’s Included

Eco Battery 70V 105Ah Lithium Battery Bundle

The Eco Battery 70V 105Ah Lithium Battery Bundle is built for golf cart owners who need more than a basic replacement battery. If your cart is heavier, faster, used for longer routes, or expected to hold power better under demand, this bundle gives you a stronger lithium foundation to build around.

With 105Ah of capacity, 7,392Wh of energy, and strong continuous as well as short-burst discharge capability, this setup is a better fit for more demanding electric cart use than lower-output battery packages. It also includes Bluetooth, CAN communication, IP67 protection, and over-the-air software updates.

It is also backed by a Limited Lifetime Warranty with 6 years of full replacement, which is one of the biggest reasons many golf cart owners choose Eco Battery when stepping up to lithium.

Customers can expect roughly 35–60 miles per charge, depending on vehicle setup, terrain, tire size, speed, payload, driving style, and overall efficiency.

If you are building a more serious higher-voltage cart, this bundle also pairs well with an EB Power AC Conversion Kit when the goal is stronger speed, torque, and overall performance from a properly matched system.

Why Buyers Step Up to the 70V 105Ah Bundle

More Battery for More Demanding Carts

This setup gives higher-demand golf carts more usable reserve for longer routes, heavier use, and more serious electric builds.

Complete Bundle Setup

This bundle is built to give buyers the core components needed for a proper 70V lithium setup without piecing the system together from scratch.

Better for Higher-Voltage Builds

If your cart is being built around a compatible 70V system, this bundle gives you a stronger foundation than trying to stretch a lower-voltage setup beyond what it was meant to do.

Fitment

This bundle is offered for the following cart options:

Advanced EV Advent (22-24)
Club Car Precedent (09+)
Club Car DS / Villager H Frame
EZGO RXV (metal battery tray; typically has 6 x 8v batteries)
EZGO RXV (plastic battery tray; typically has 4 x 12v batteries)
EZGO TXT
EZGO Express
Epic EV (3x3 Factory Battery Tray)
Epic EV (4x2 Factory Battery Tray)
Navitas Chassis
Yamaha Drive / G29 (2007-2010)
Yamaha Drive (2011+) / Drive2

This bundle is best viewed as a compatible 70V system option, not a generic drop-in battery for any electric cart.

48V Cart Compatibility

This battery will not work on a standard 48V cart unless the cart has been properly built or converted to run a compatible 70V setup.

In many cases, that means the cart is running an AC conversion kit with the supporting components needed for higher voltage. If you are planning that kind of build, browse our Golf Cart AC Conversion Kits for a more complete higher-voltage upgrade path.

If your cart is still running a normal 48V system, this is not the right battery choice.

Heated Battery Option

The Auto-Heated Battery upgrade is worth considering if your cart may be charged in freezing or near-freezing conditions. It is especially helpful for carts stored in unheated garages, sheds, barns, or colder seasonal climates.

Before You Order

Before ordering, verify:

Your cart matches one of the listed applications
Your cart is electric
Your cart is using or being converted to a compatible 70V system
Your overall electrical setup matches the selected battery system
You have the space and mounting plan needed for the battery footprint

If your system uses CAN-enabled charging, CAN must be connected correctly for charging to work as intended, and the battery must be powered on to accept a charge. This bundle also will not work with carts that have a factory lithium battery.

FAQ

What carts does this bundle fit?

This bundle is offered for the cart options listed above, including Club Car, EZGO, Yamaha, Advanced EV, Epic EV, and Navitas Chassis applications that match the selector.

What kind of range can I expect per charge?

Expected range is roughly 35–60 miles per charge, depending on vehicle setup, terrain, tire size, speed, payload, driving style, and overall efficiency.

Will this work on a 48V cart?

Not on a standard 48V setup. A 48V cart would need a compatible 70V system, which often means an AC conversion. For that kind of build, the EB Power AC Conversion Kit is a strong related upgrade path.

Is there a heated battery option?

Yes. This bundle offers an Auto-Heated Battery upgrade option.

Can the battery be connected in series?

No. Series connection is not supported. Parallel connection is supported up to 2.

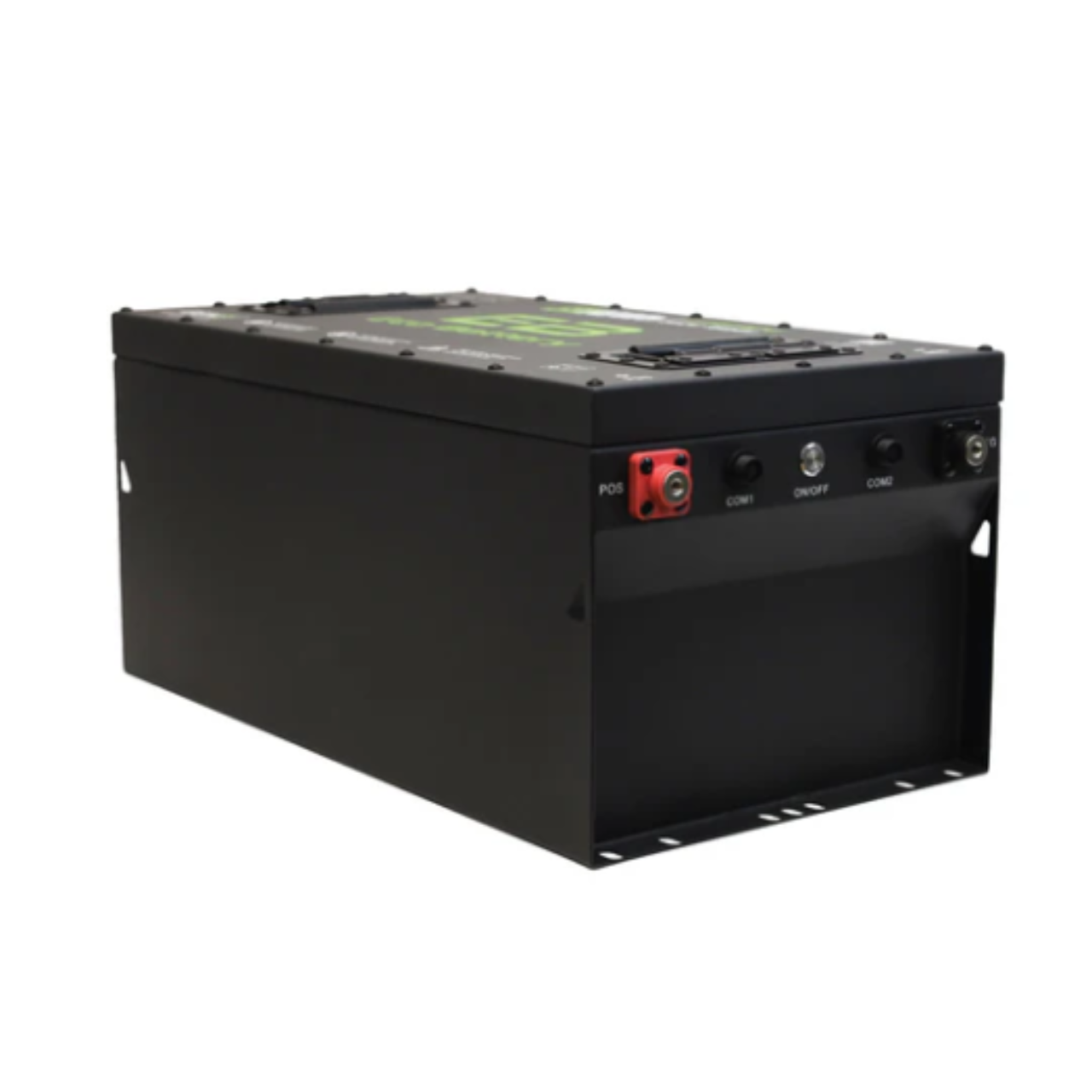

Specifications

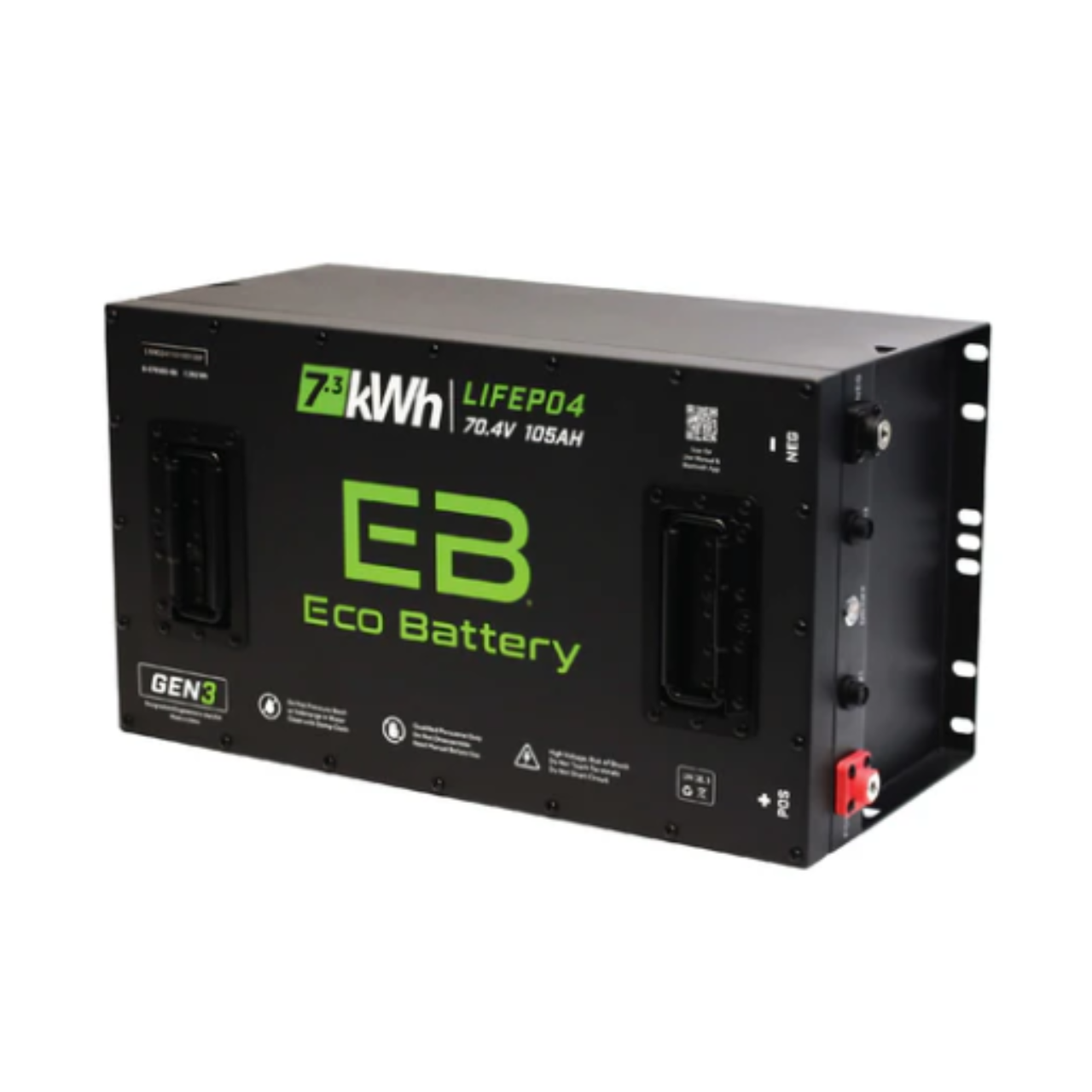

Battery Model: GEN3 70V 105Ah

Part Number: 070105-06

Nominal Voltage: 70.4V

Working Voltage: 59.4V - 80.3V

Recommended Voltage: 66.0V - 78.3V

Cell Count: 22

Nominal Capacity: 105Ah

Energy: 7,392Wh

Reserve @25A: 252 Minutes

Self Discharge: 1% Per Month

IP Rating: IP67

BMS (Battery Management System): Proprietary - EB

Bluetooth: Yes

CAN: Yes

Mobile App/PC: Yes

Software Updates: Over-the-air

Charging Freeze Protection: Yes, Under 32F

Pack Over-Voltage: Yes

Cell Balancing: Yes

Pack Under-Voltage: Yes

Cell Under-Voltage: Yes

Cell Over-Temp: Yes

BMS Over-Temp: Yes

Short Circuit / Over Current: Yes

Certifications: UN38.3, UL1642 Cell

Max Continuous Discharge: 250A

Max Discharge 5 Sec: 600A

Max Discharge 10 Sec: 550A

Recom. Voltage Cutoff: 66.0V

BMS Voltage Recovery: 63.8V

Discharge Temp Range: -20F to 140F

Auto Charger Wake-up: YES

Max Continious Charge: <52A

Max Charge 30 Seconds: 200A

Bulk/Absorb Voltage: 78.1V

Float Voltage: 77.0V or Off

BMS High Voltage Cutoff: 81.4V

Charging Temp. Range: 32F to 130F

Cell Chemistry: Lithium Iron Phosphate

Cell Type: Prismatic

Cell Configuration: 1P22S

Series Connectable: No

Parallel Connectable: Yes, up to 2

Weight: 146 lbs (66.22Kg)

Dimension LxWxH: 22” X 12.125” X 10.625”

Terminal Type: M8 Female

Shell Type: Powder Coated Steel

Eco Battery Resource Center

Downloads

70V 105Ah GEN3 Datasheet
Eco Battery User Manual
12 Volt Converter Guide
Eco Battery Warranty

Product Videos

What’s Included

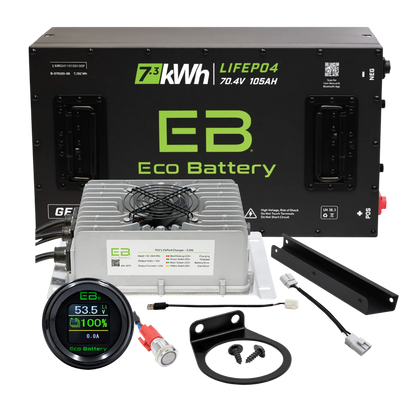

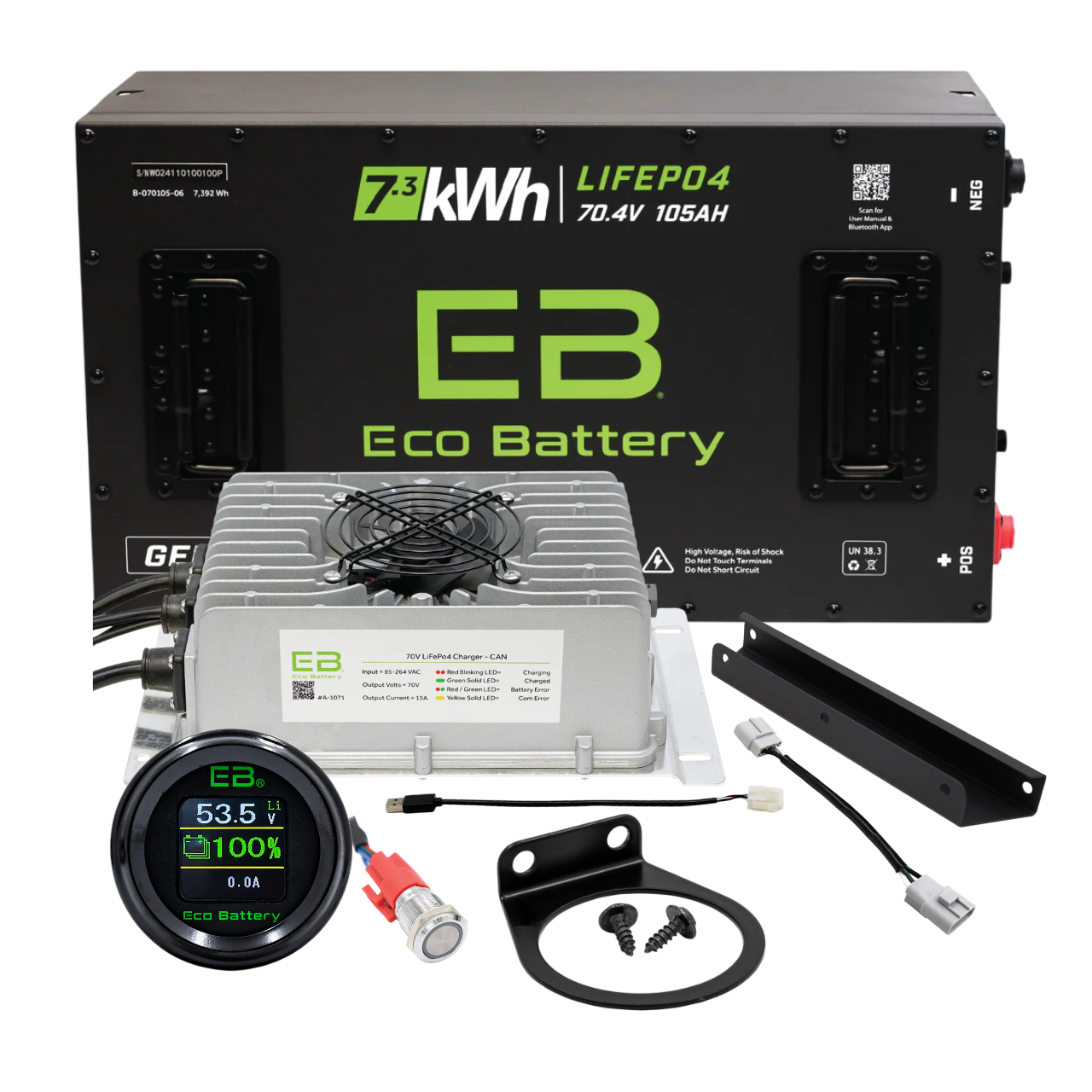

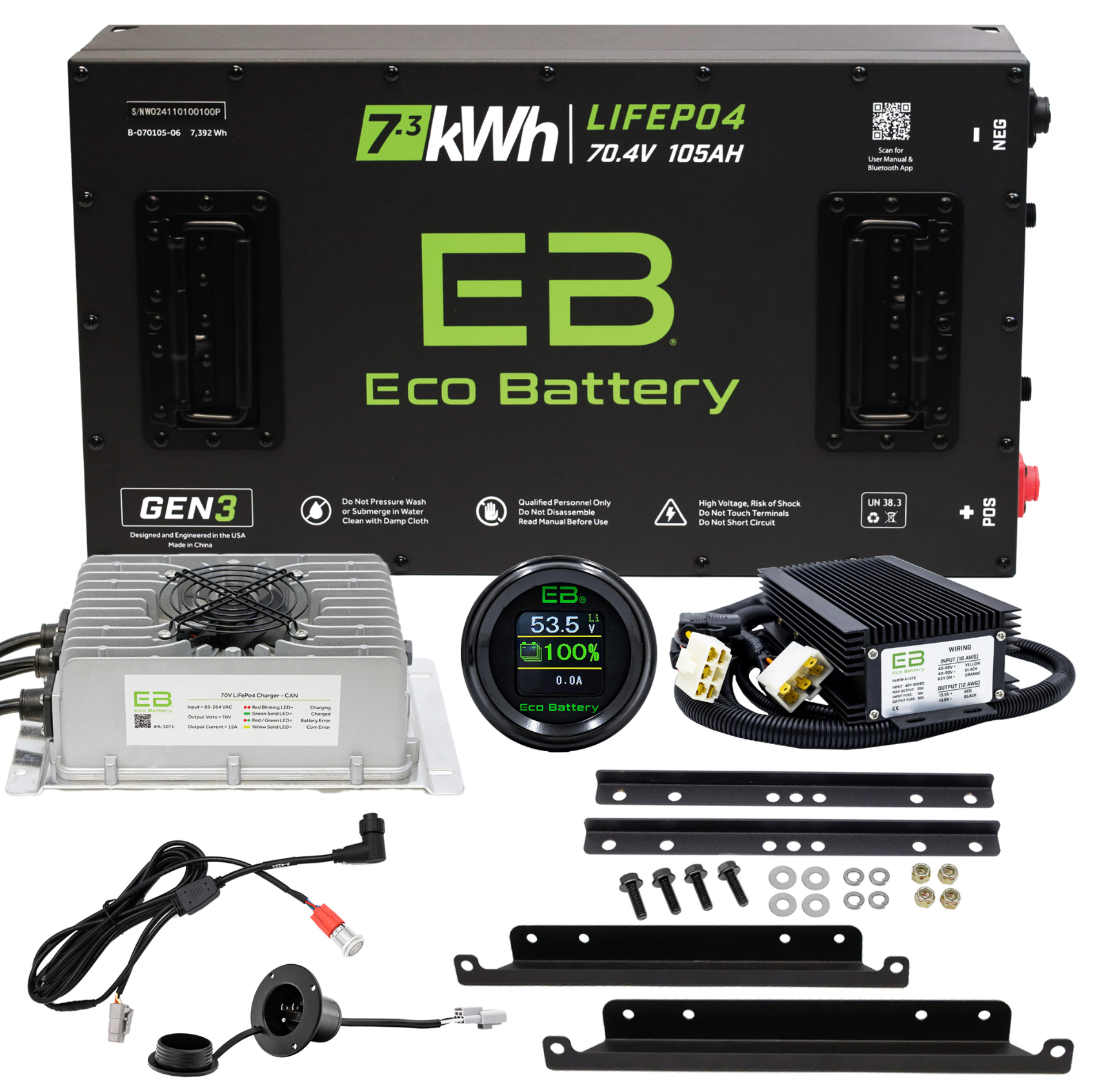

Eco Battery bundles are specific to the Cart Make & Model and Battery selected above. You will have everything you need for a quick and easy setup. Here’s what you’ll get.

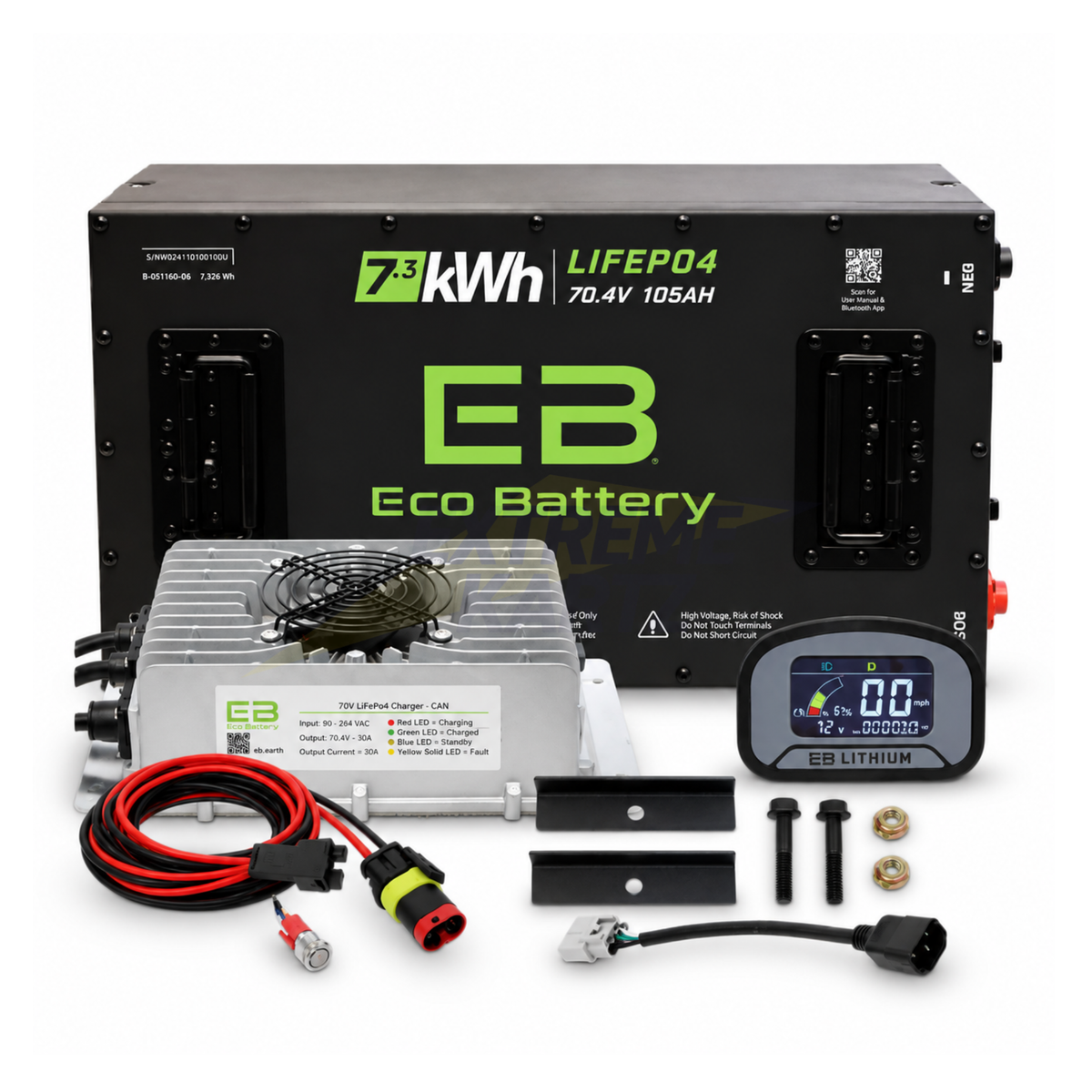

Advanced EV Advent (22-24)

• A-070105-06 — 70V 105AH LiFePO4 Battery GEN3
• A-1071 — 70V 15A CAN Charger
• A-1290 — DC-DC 12V Converter / 60-90V Input / ICON/ADEV Harness
• A-3123 — Controller CAN Adapter / ICON/AEV
• A-4008 — Charger Pigtail / C14 to LQC Receptacle
• A-4113 — Eco Battery 5 Pin CAN Cable / 12in
• A-8252 — Eco Battery Battery Mounting Kit / ICON EV/ADEV
• A-4220 — Remote Button Battery Wake Up Kit

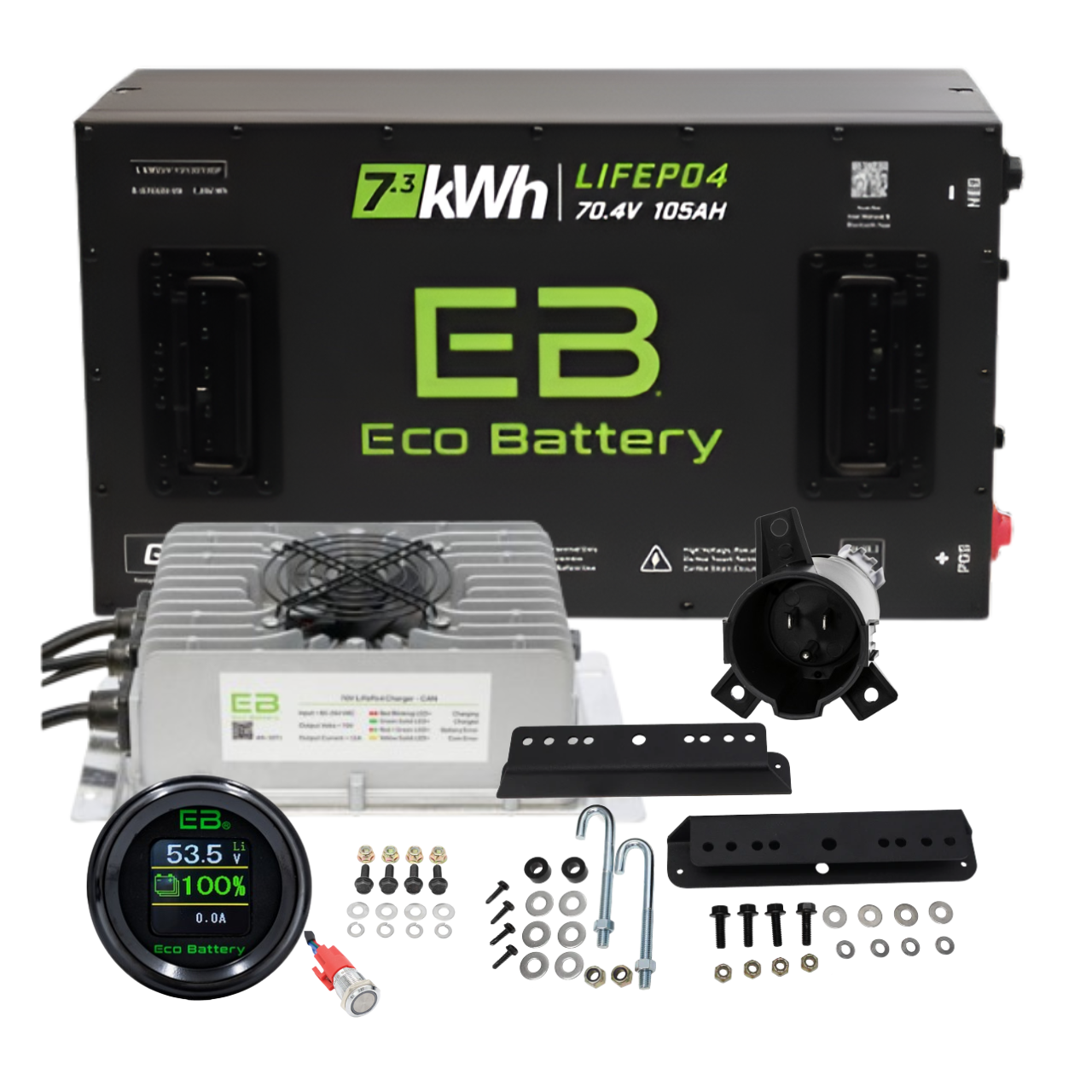

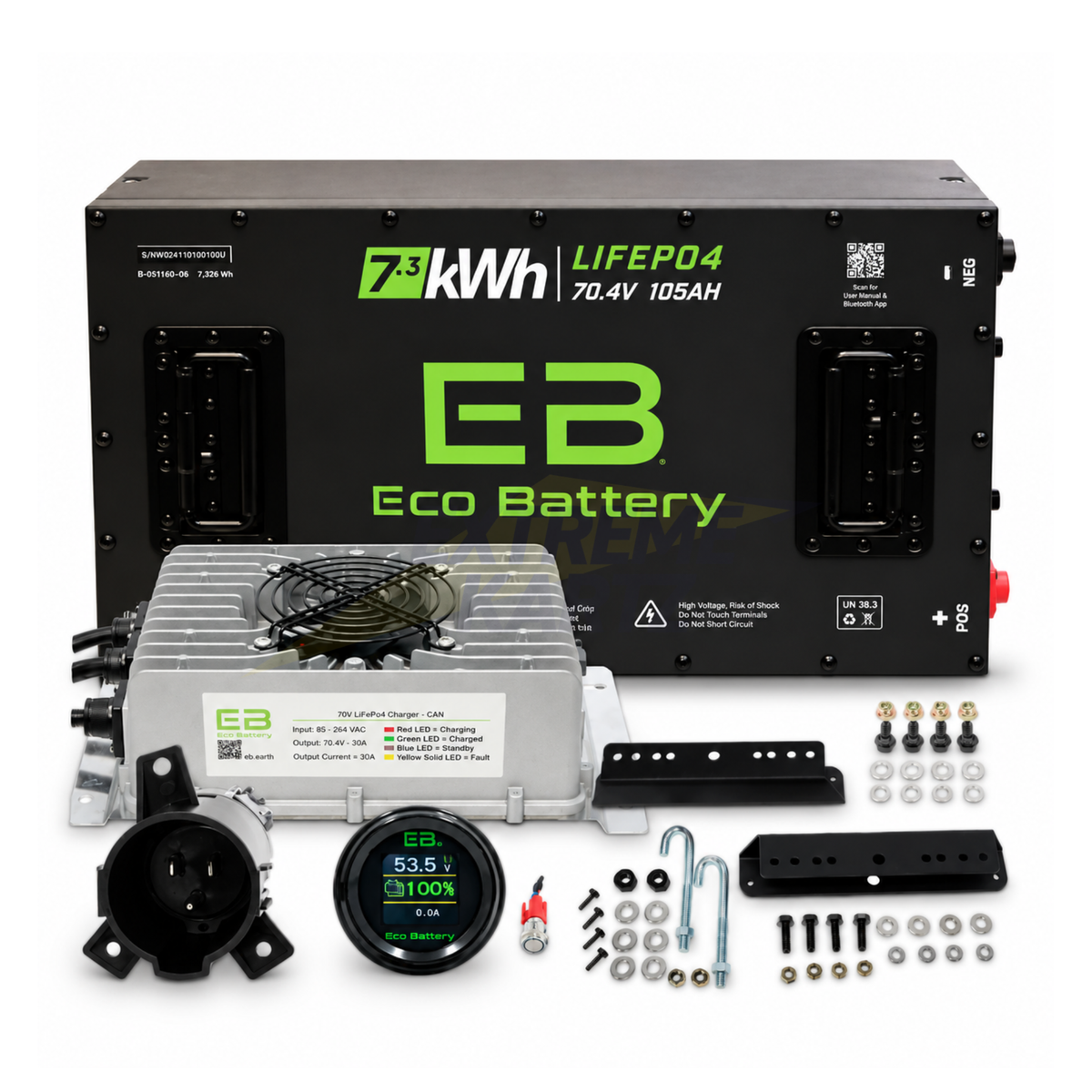

Club Car Precedent (09+)

• A-070105-06-G3 — 70V 105Ah LiFePO4 Battery
• A-1071 — 70V CAN Charger (Locking Quick Connect)
• A-1272 — [Optional: Select YES above if you do not have one already] 51V to 12V DC-DC Converter
• A-3102 — Charge Meter – CAN Digital 5V
• A-8411 — Club Car Precedent Mounting Bracket (51V Skinny, 70V)
• A-4082 — Club Car Precedent Charge Port (Locking)
• A-4220 — Remote Wake Up Button

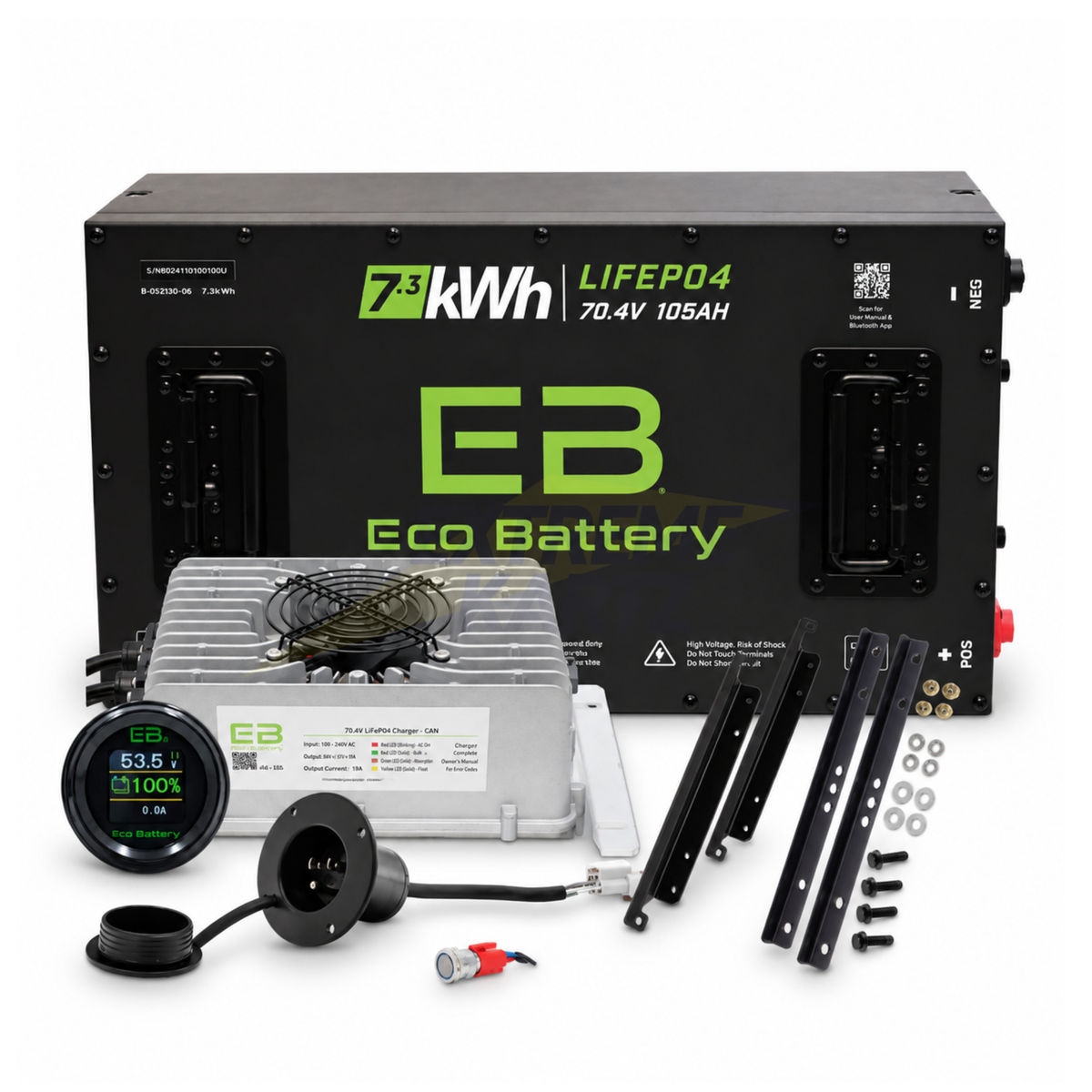

Club Car DS / Villager H Frame

• A-070105-06 — 70V 105AH LiFePO4 Battery GEN3
• A-1071 — 70V 15A CAN Charger
• A-1272 — DC-DC 12V Converter / 40V-90V Input
• A-3102 — LCD State of Charge Meter
• A-4012 — Eco Battery Charge Port / Club Car DS / 110V Plug - Quick Connect Plug
• A-8016 — Battery Flange Supports / Wide
• A-8425 — Eco Battery Mounting Kit / Club Car DS / H-Frame
• A-4220 — Remote Button Battery Wake Up Kit

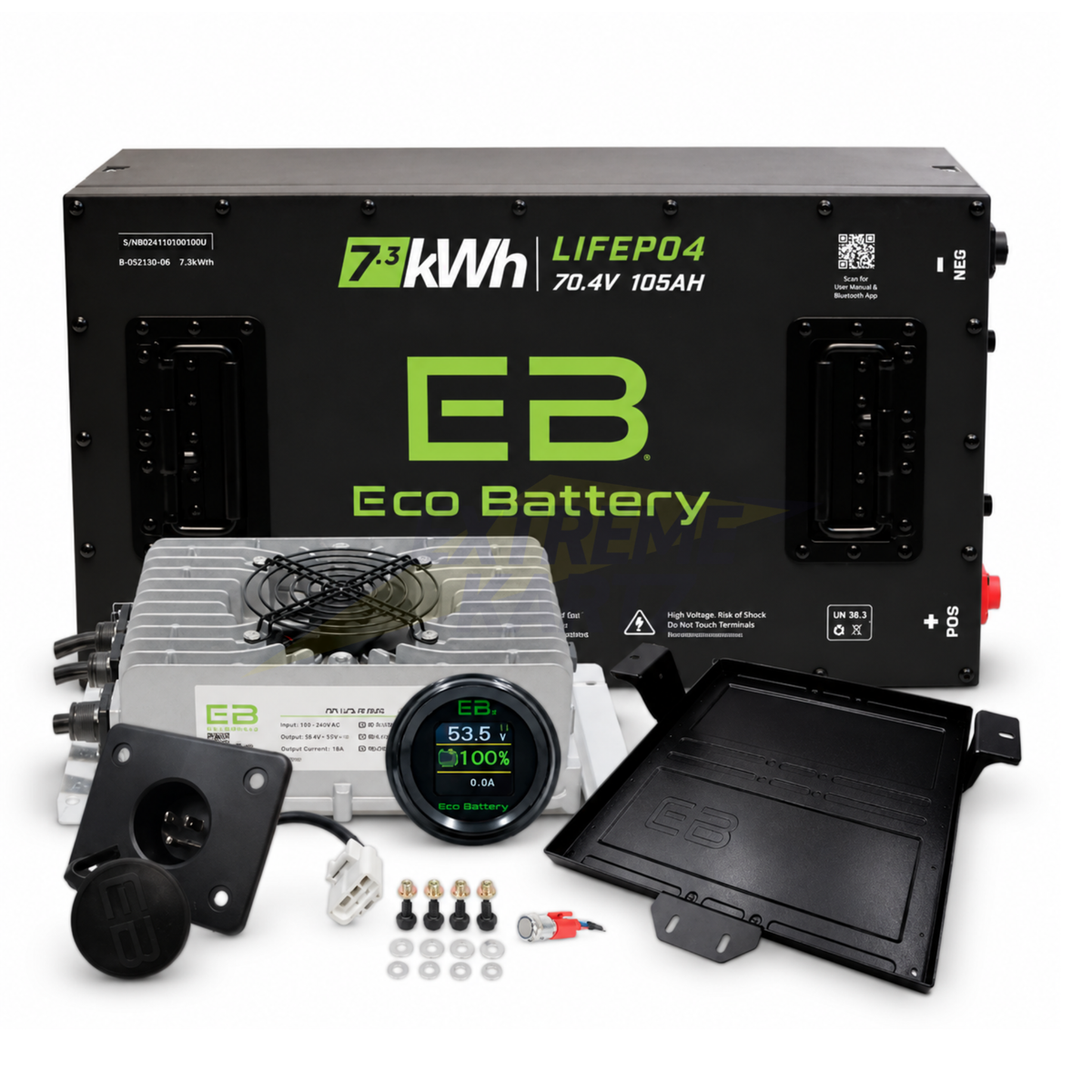

EZGO RXV (Factory Metal Tray)

• A-070105-06-G3 — 70V 105Ah LiFePO4 Battery
• A-1071 — 70V CAN Charger (Locking Quick Connect)
• A-1272 — [Optional: Select YES above if you do not have one already] 51V to 12V DC-DC Converter
• A-3102 — Charge Meter – CAN Digital 5V
• A-4032 — EZGO RXV Charge Port (Locking)
• A-8102 — EZGO RXV Battery Tray (Fits all EB Batteries)
• A-8003 — Bolt Hardware for 51V Skinny, 70V
• A-4220 — Remote Wake Up Button

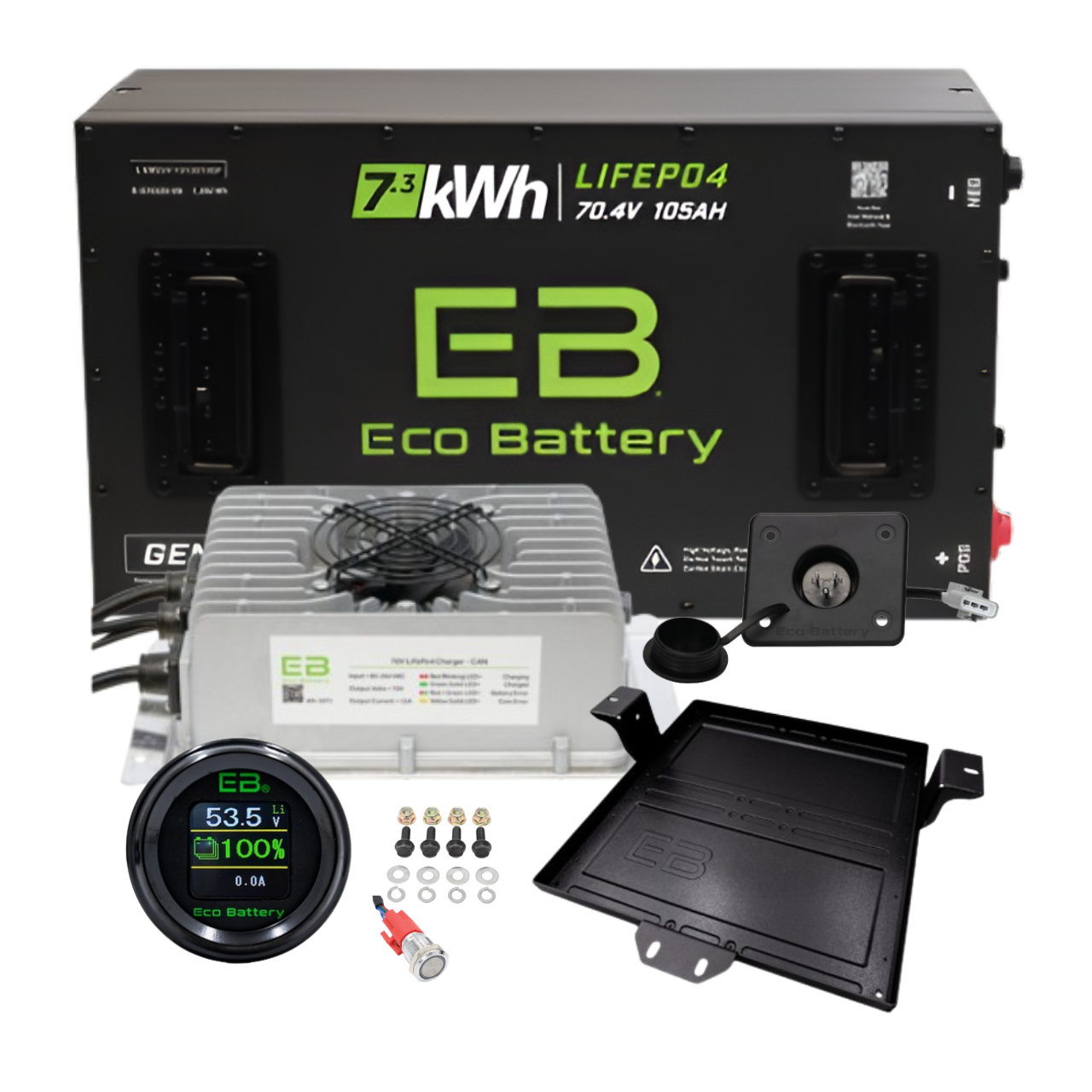

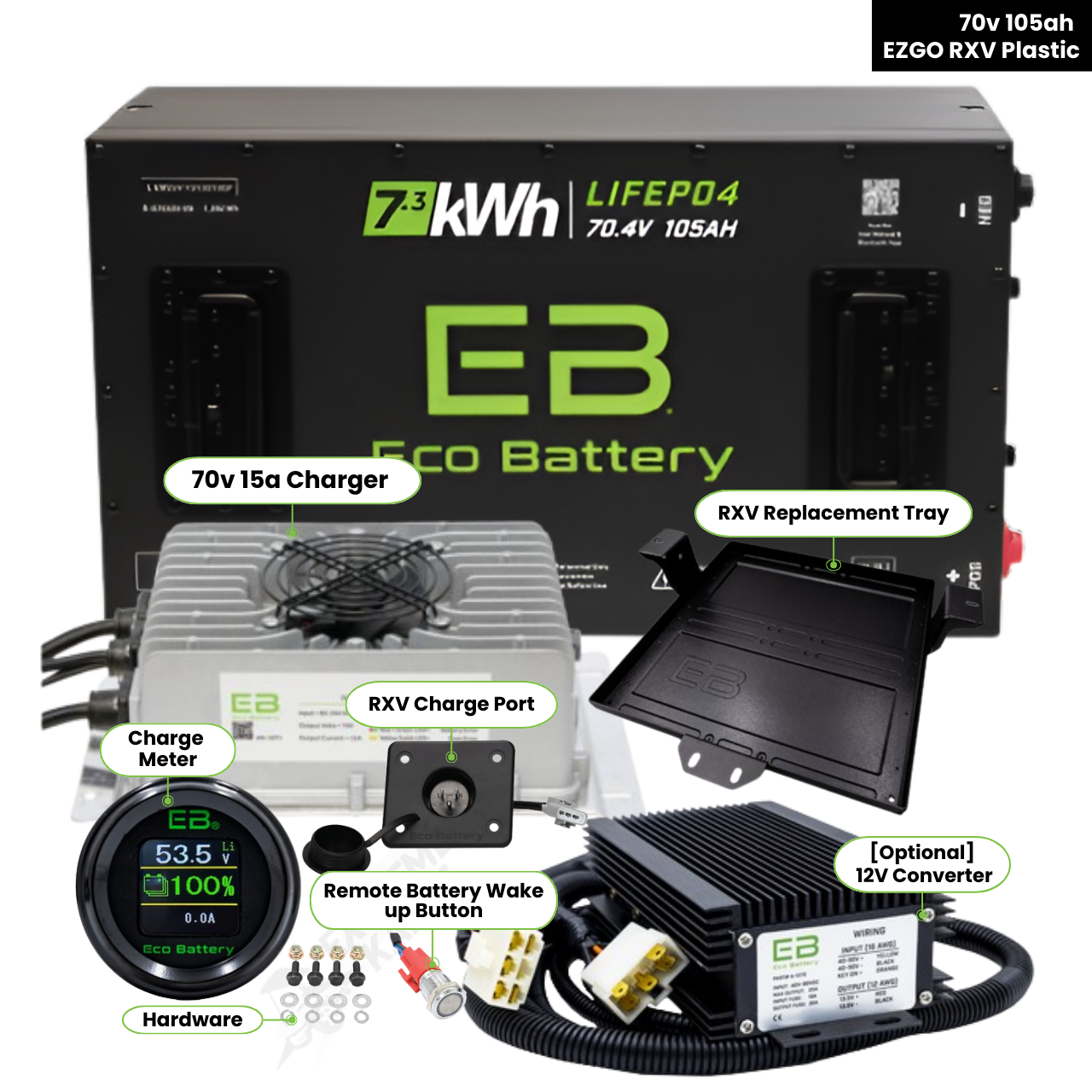

EZGO RXV (Factory Plastic Tray)

• A-070105-06-G3 — 70V 105Ah LiFePO4 Battery
• A-8102 — EZGO RXV Battery Tray (Fits all EB Batteries)
• A-1071 — 70V CAN Charger (Locking Quick Connect)
• A-4032 — EZGO RXV Charge Port (Locking)
• A-3102 — Charge Meter – CAN Digital 5V
• A-8003 — Bolt Hardware for 51V Skinny, 70V
• A-4220 — Remote Wake Up Button

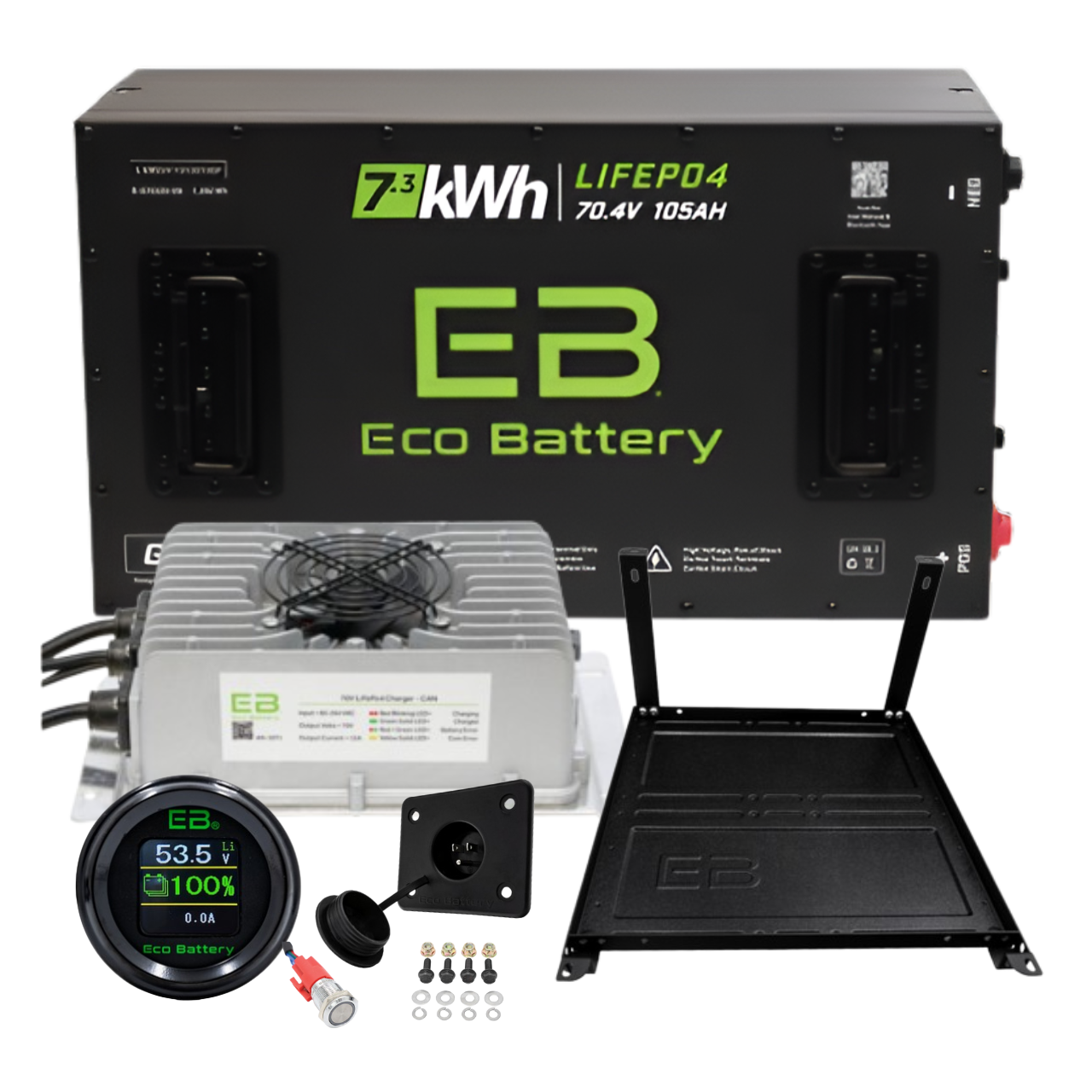

EZGO TXT

• A-070105-06-G3 — 70V 105Ah LiFePO4 Battery
• A-1071 — 70V CAN Charger (Locking Quick Connect)
• A-1272 — [Optional: Select YES above if you do not have one already] 51V to 12V DC-DC Converter
• A-3102 — Charge Meter – CAN Digital 5V
• A-4022 — EZGO TXT Charge Port (Locking)
• A-8112 — EZGO TXT Battery Tray (Fits all EB Batteries)
• A-8003 — Bolt Hardware for 51V Skinny, 70V
• A-4220 — Remote Wake Up Button

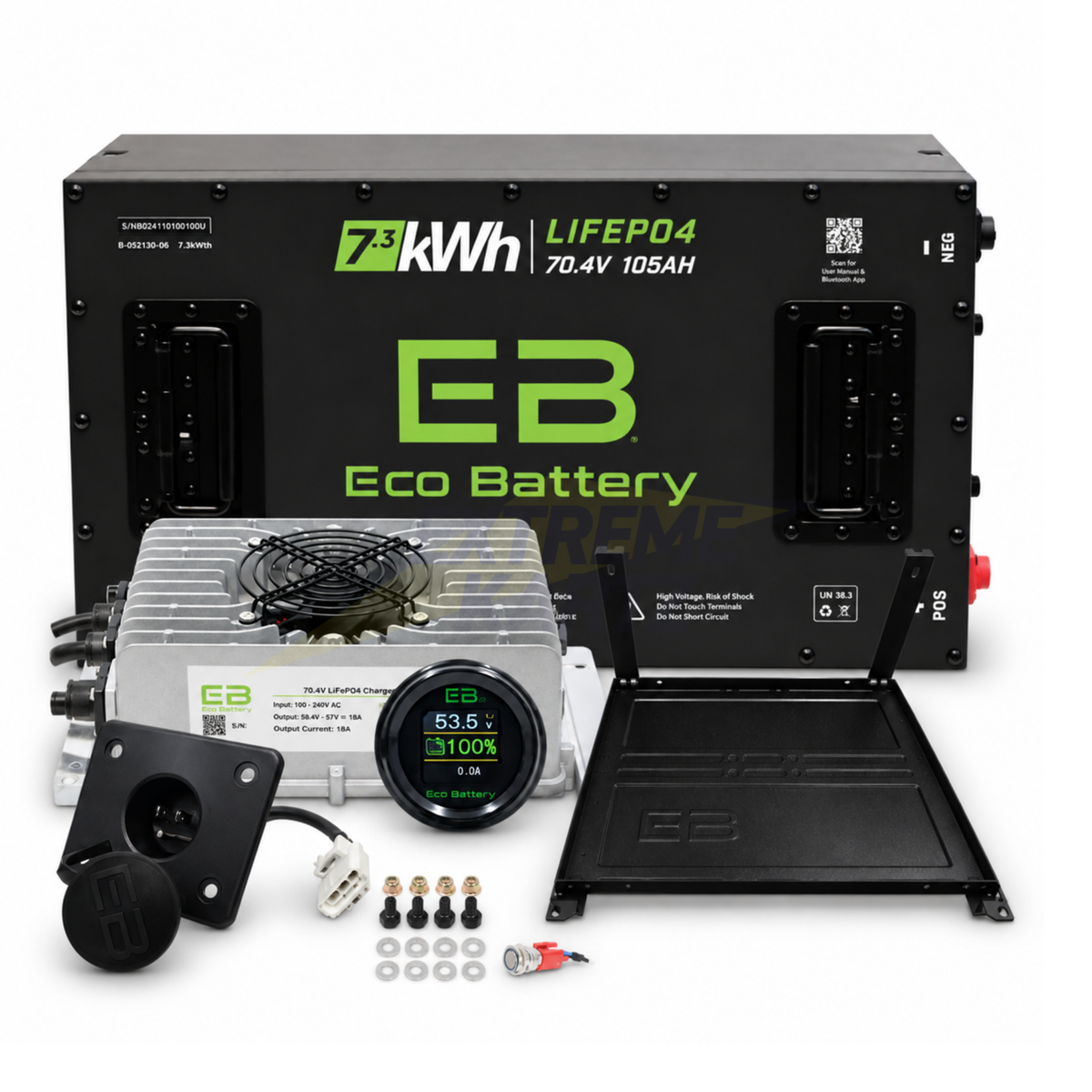

EZGO Express

• A-070105-06 — 70V 105AH LiFePO4 Battery GEN3
• A-1071 — 70V 15A CAN Charger
• A-1272 — DC-DC 12V Converter / 40V-90V Input
• A-3102 — LCD State of Charge Meter
• A-4022 — Eco Battery Charge Port / EZGO TXT / 110V Plug - Quick Connect Plug
• A-8003 — Battery Mounting Hardware / 5/16in
• A-8112 — Eco Battery Replacement Tray / EZGO TXT
• A-4220 — Remote Button Battery Wake Up Kit

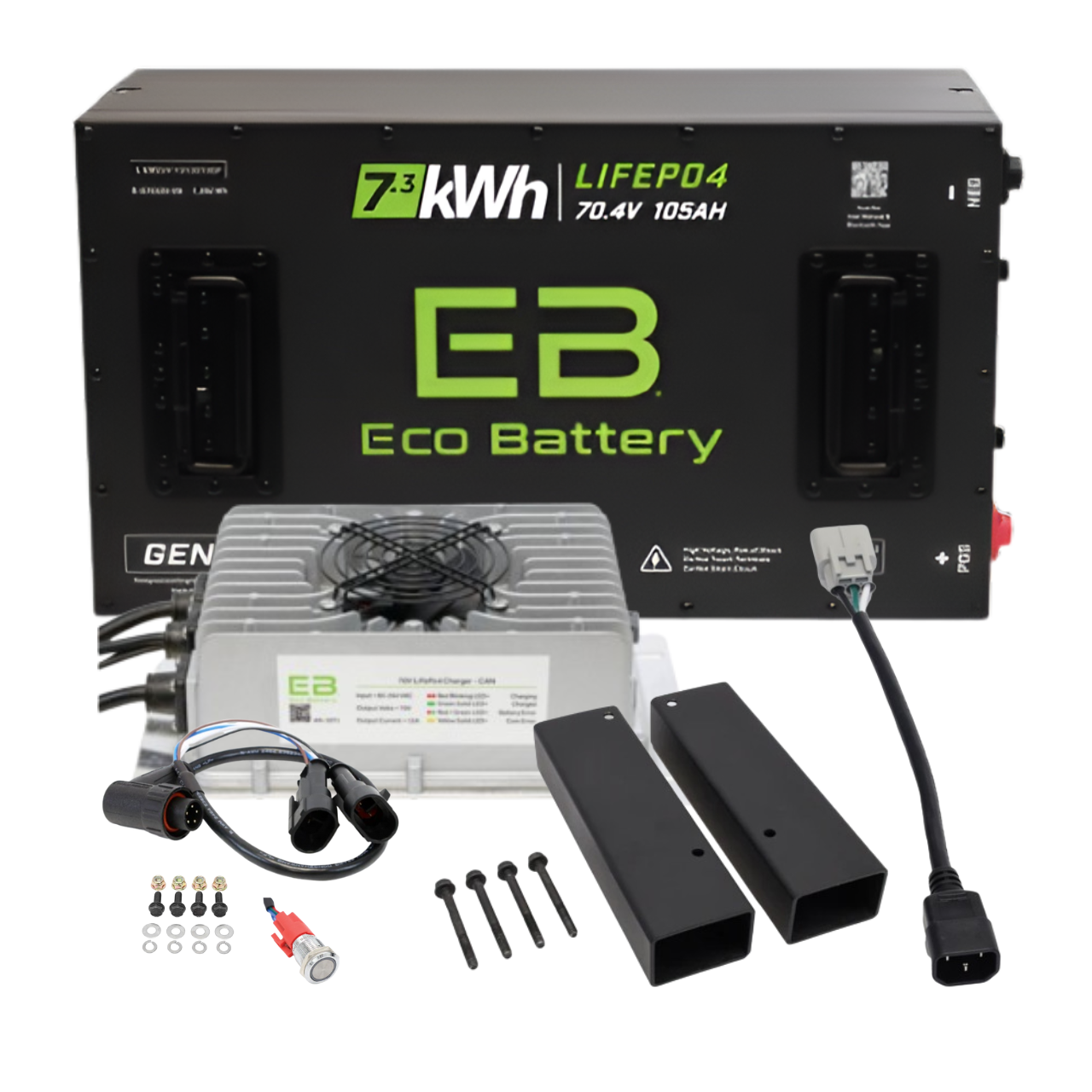

Epic EV (3x3 Factory Battery Tray)

• A-070105-06 — 70V 105AH LiFePO4 Battery GEN3
• A-1071 — 70V 15A CAN Charger
• A-4113 — Eco Battery 5 Pin CAN Cable / 12in
• A-4008 — Charger Pigtail / C14 to LQC Receptacle
• A-8003 — Battery Mounting Hardware / 5/16in
• A-8264 — Eco Battery Mounting Kit / Epic / 3 X 3 Factory Battery Tray
• A-4220 — Remote Button Battery Wake Up Kit

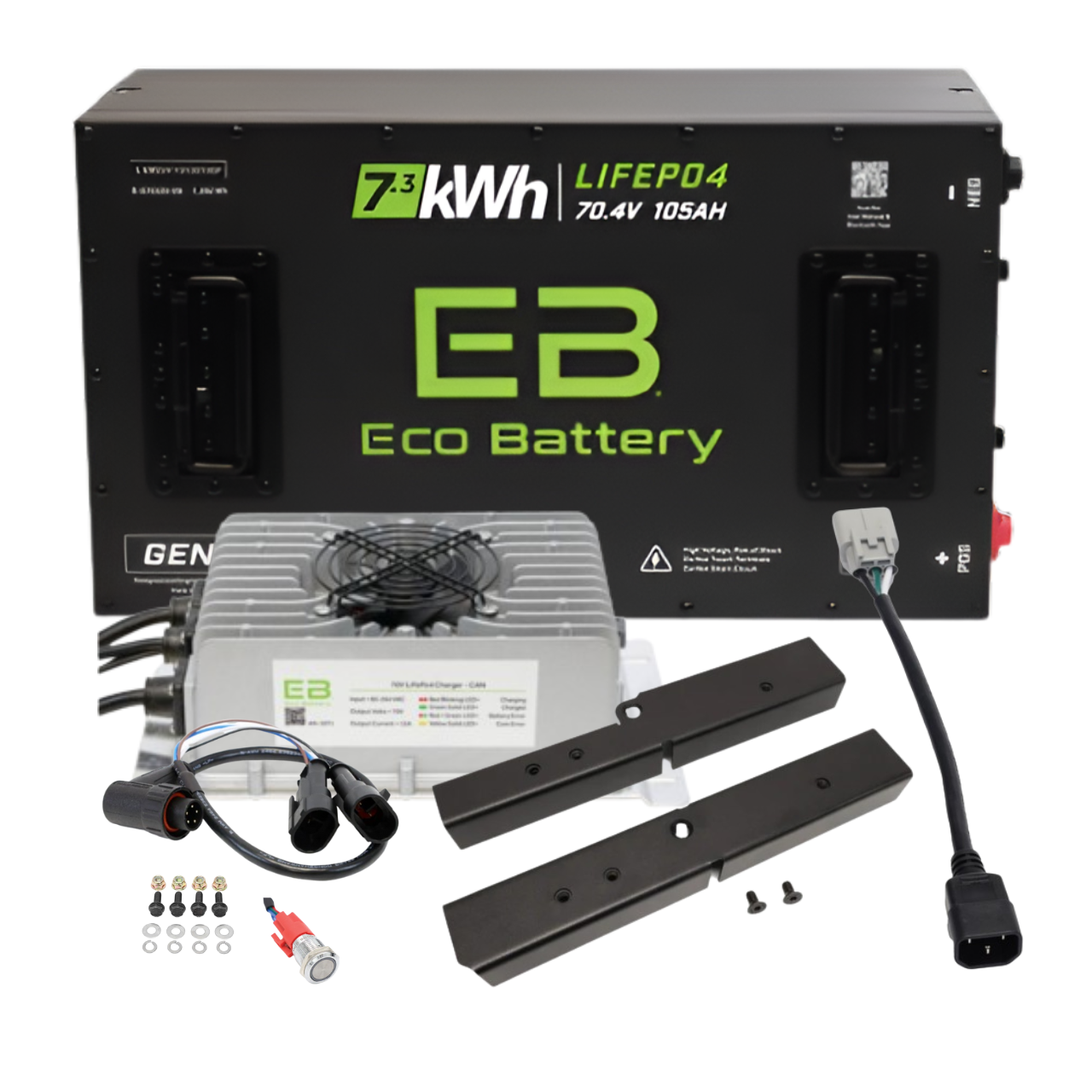

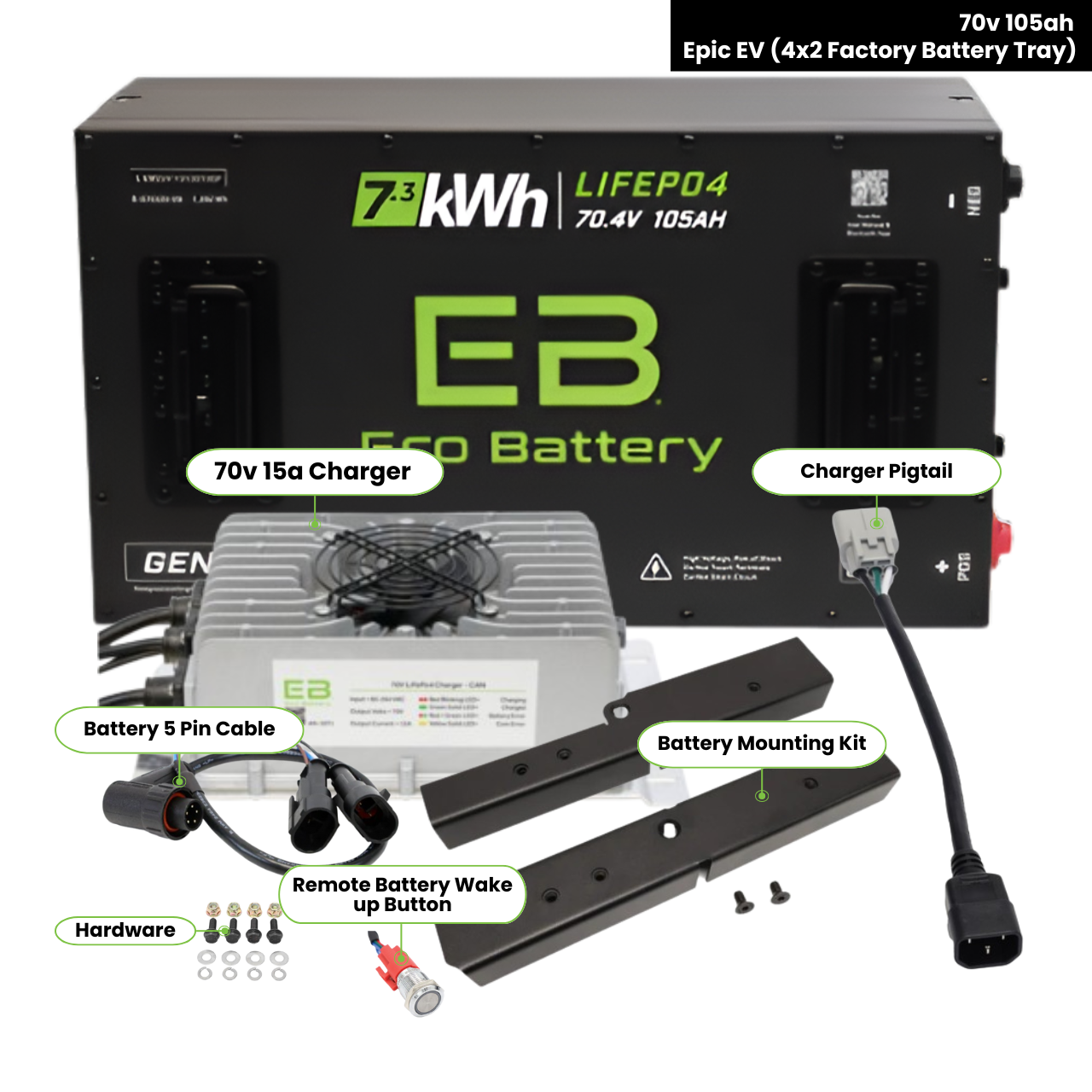

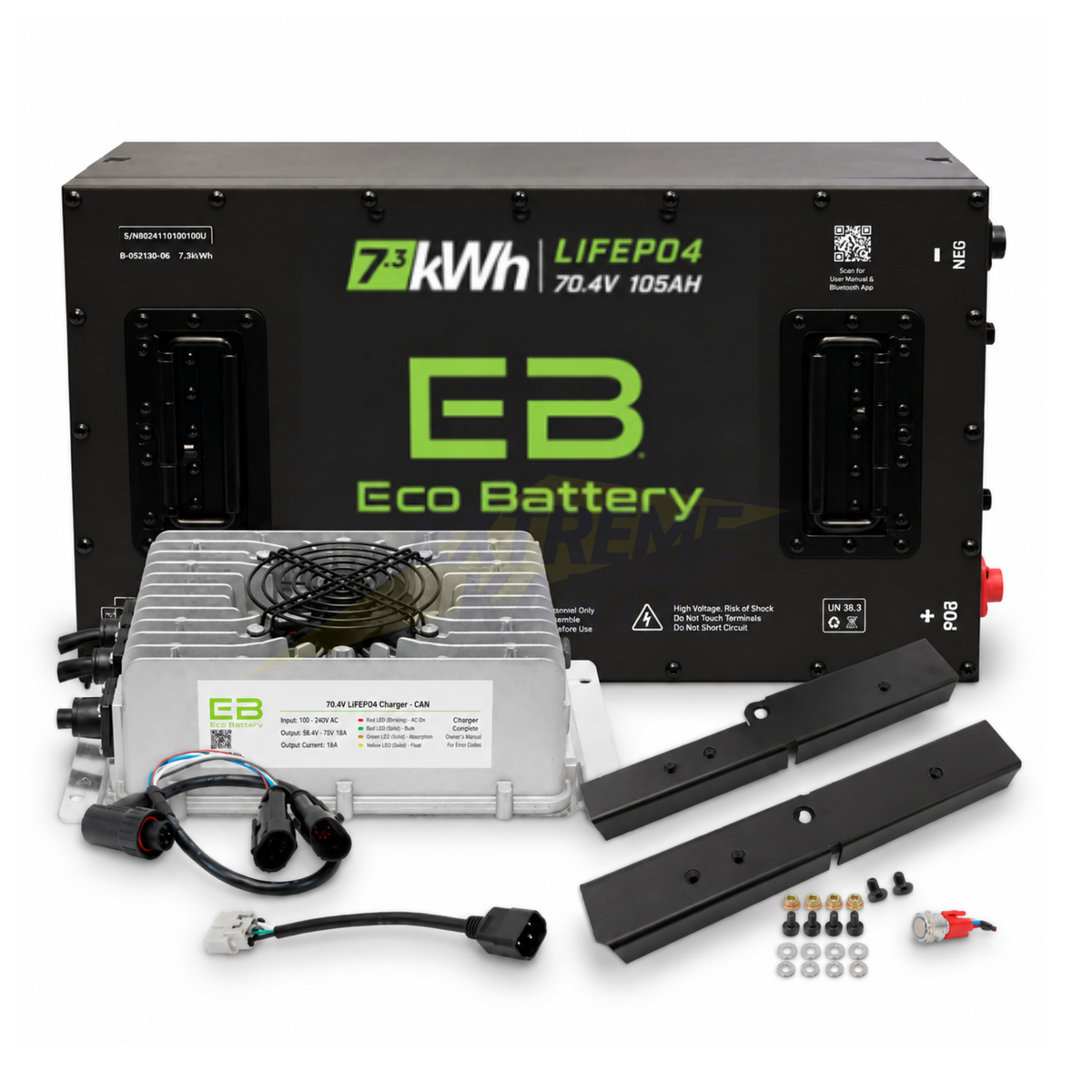

Epic EV (4x2 Factory Battery Tray)

• A-070105-06 — 70V 105AH LiFePO4 Battery GEN3
• A-1071 — 70V 15A CAN Charger
• A-4008 — Charger Pigtail / C14 to LQC Receptacle
• A-4113 — Eco Battery 5 Pin CAN Cable / 12in
• A-8003 — Battery Mounting Hardware / 5/16in
• A-8261 — Eco Battery Mounting Kit / Epic / 4 X 2 Factory Battery Tray
• A-4220 — Remote Button Battery Wake Up Kit

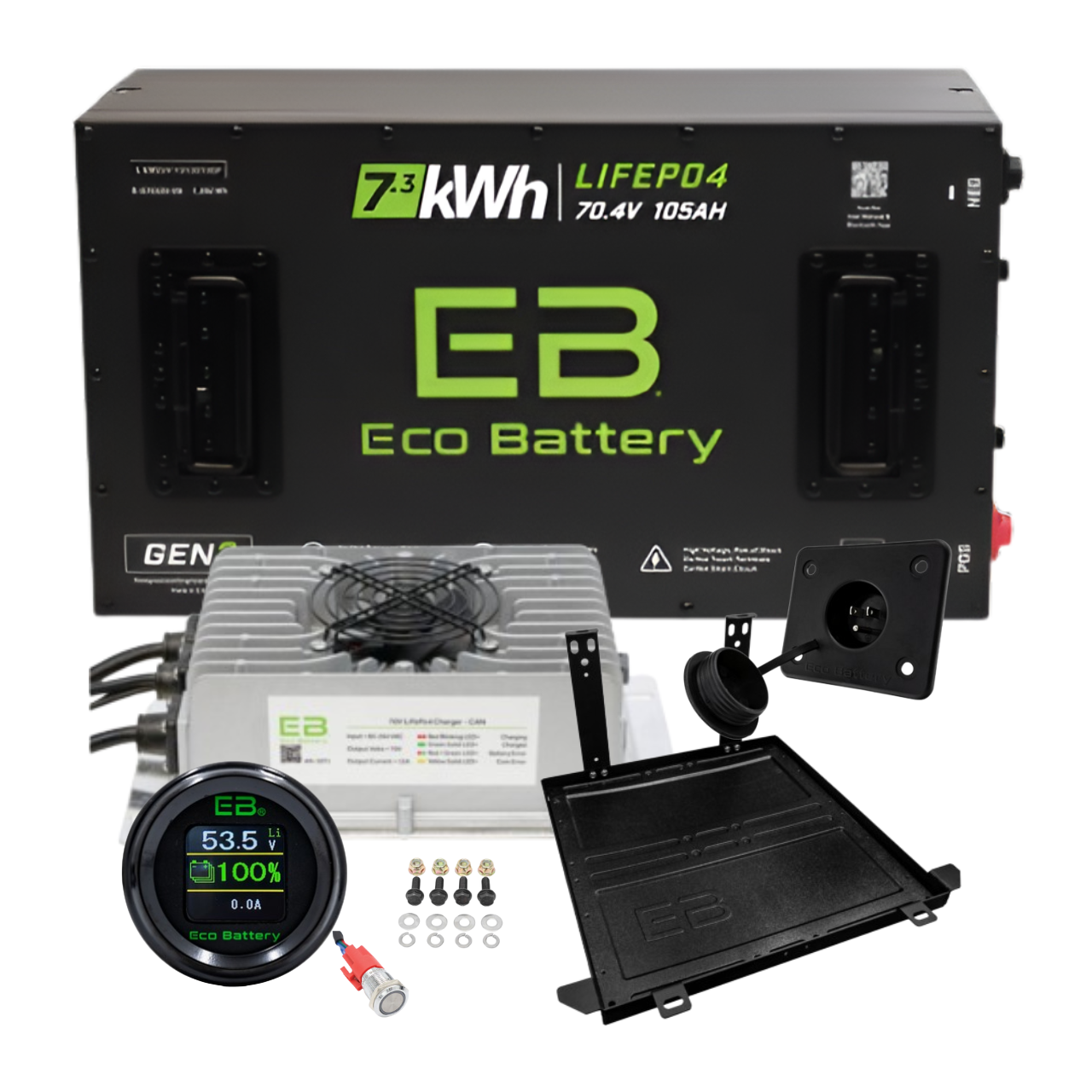

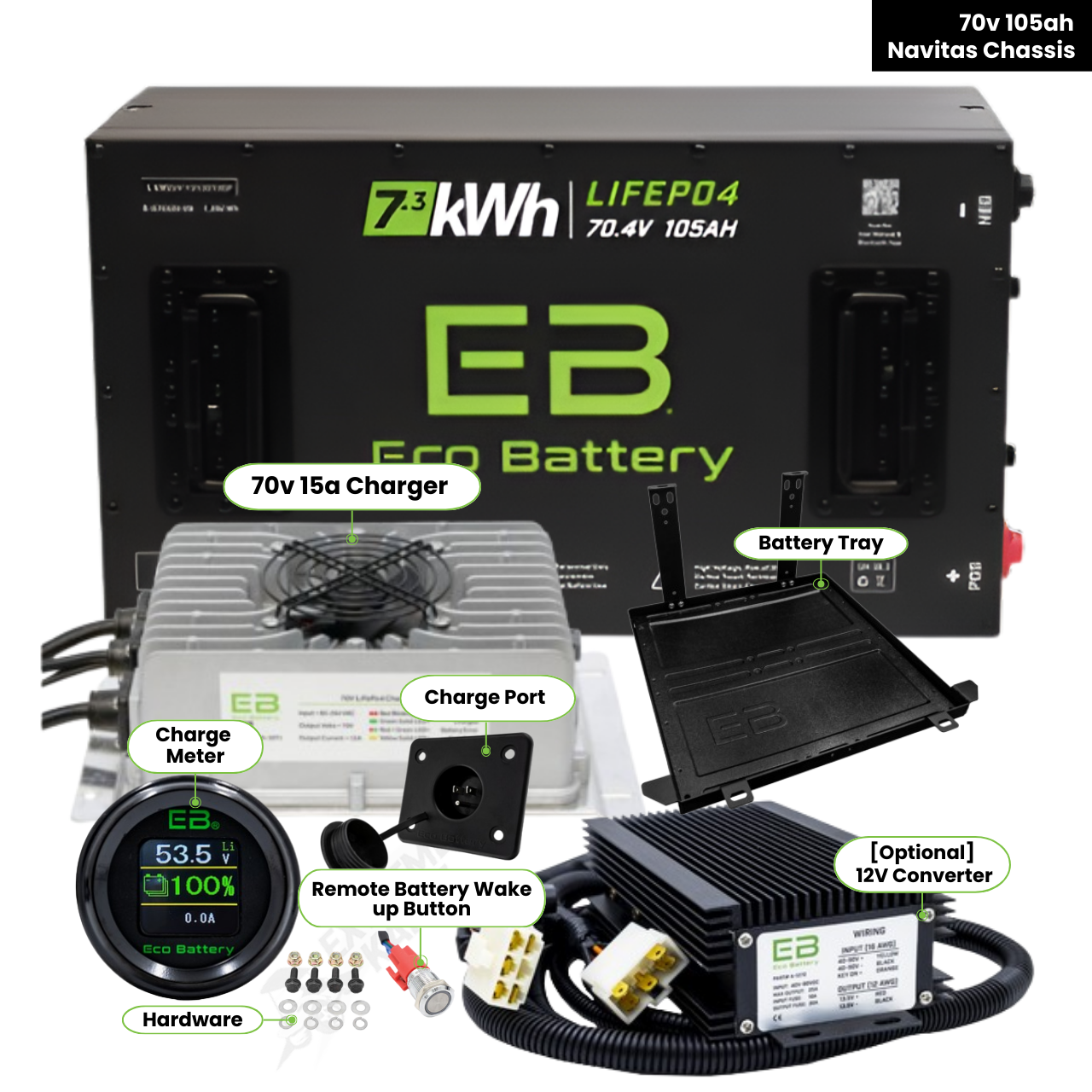

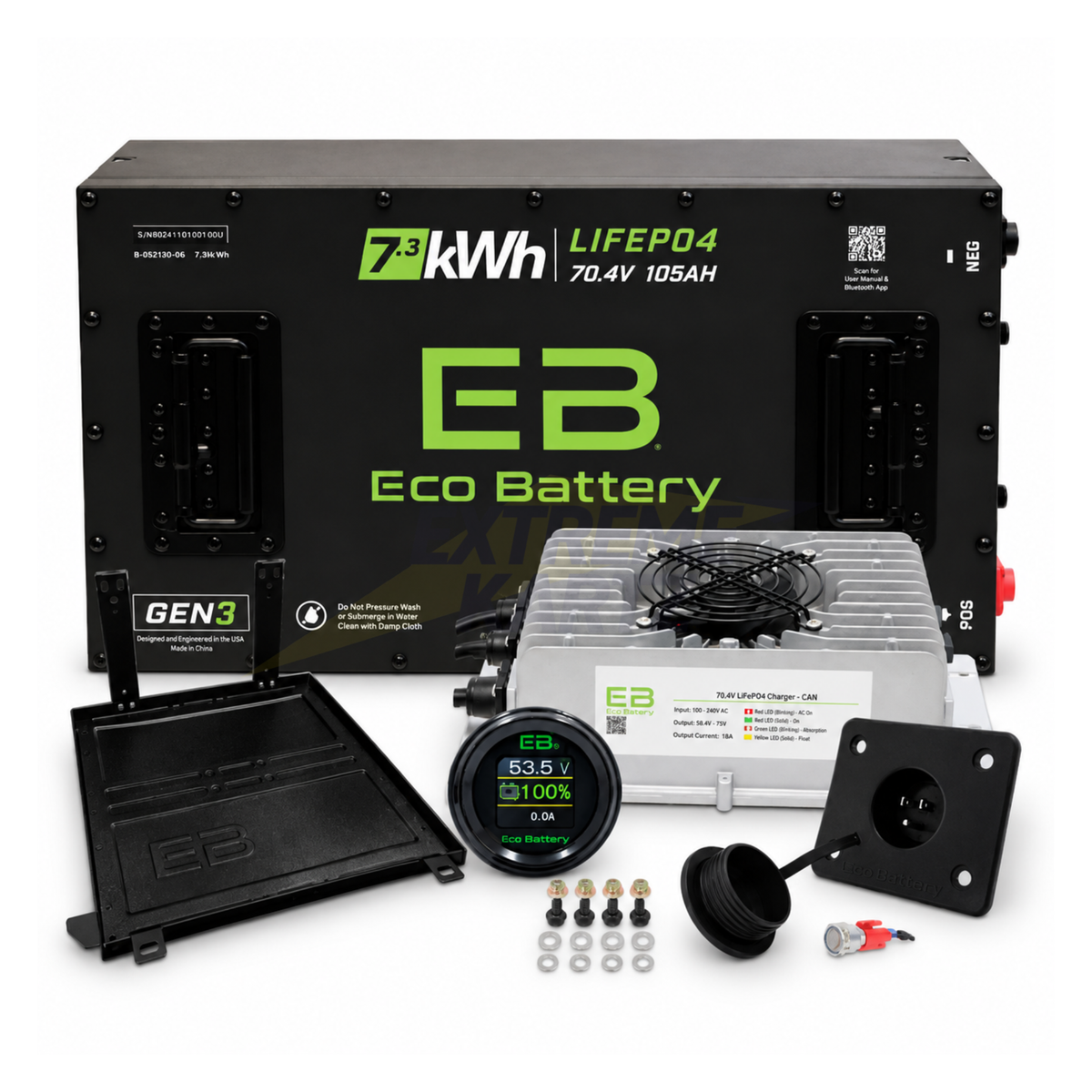

Navitas Chassis

• A-070105-06-G3 — 70V 105Ah LiFePO4 Battery
• A-1071 — 70V CAN Charger (Locking Quick Connect)
• A-1272 — [Optional: Select YES above if you do not have one already] 51V to 12V DC-DC Converter
• A-4022 — TXT Chargeport (Locking Quick Connect)
• A-8312 — Navitas Battery Tray (Fits all EB Batteries)
• A-3102 — Charge Meter – CAN Digital 5V
• A-8003 — Bolt Hardware for 51V Skinny, 70V
• A-4220 — Remote Wake Up Button

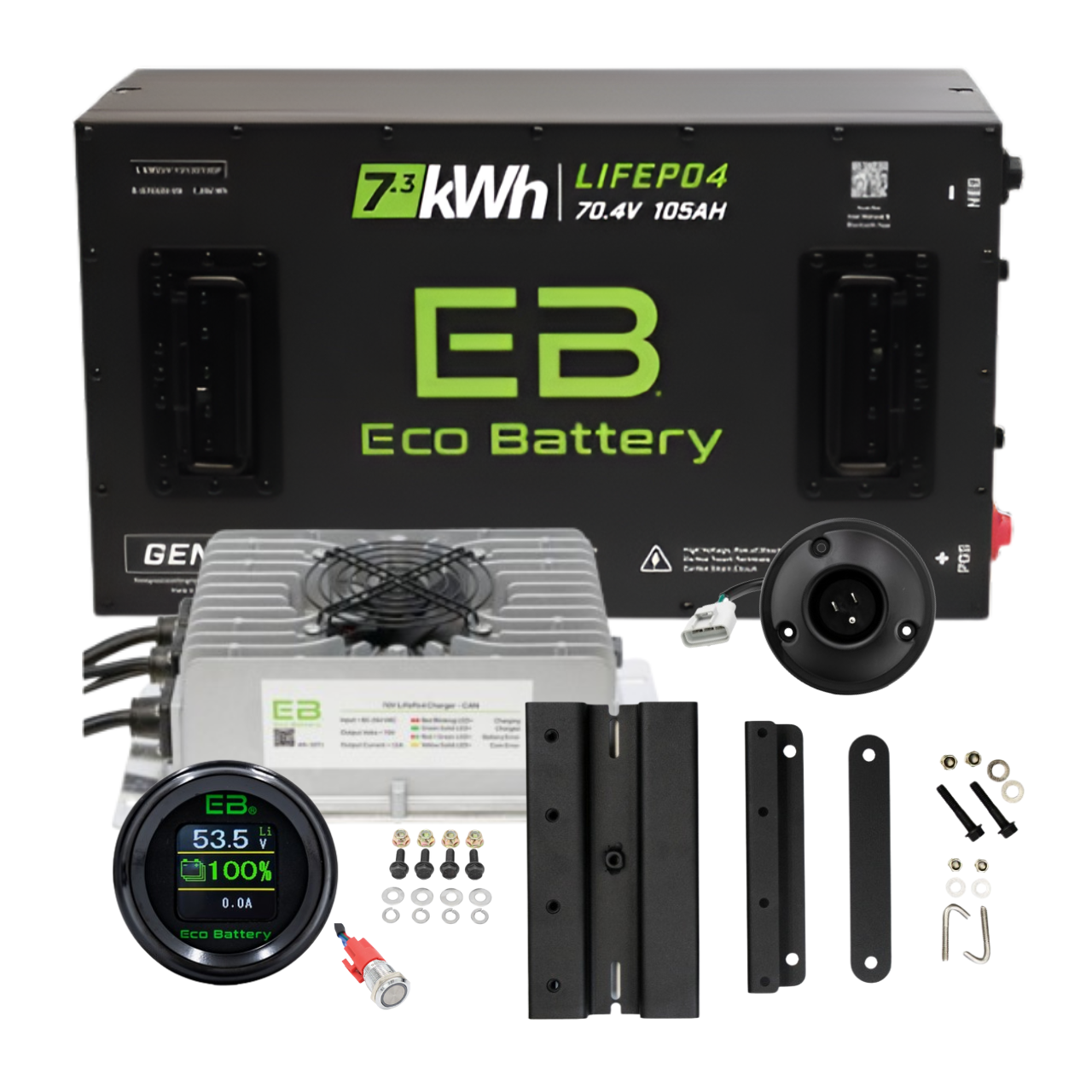

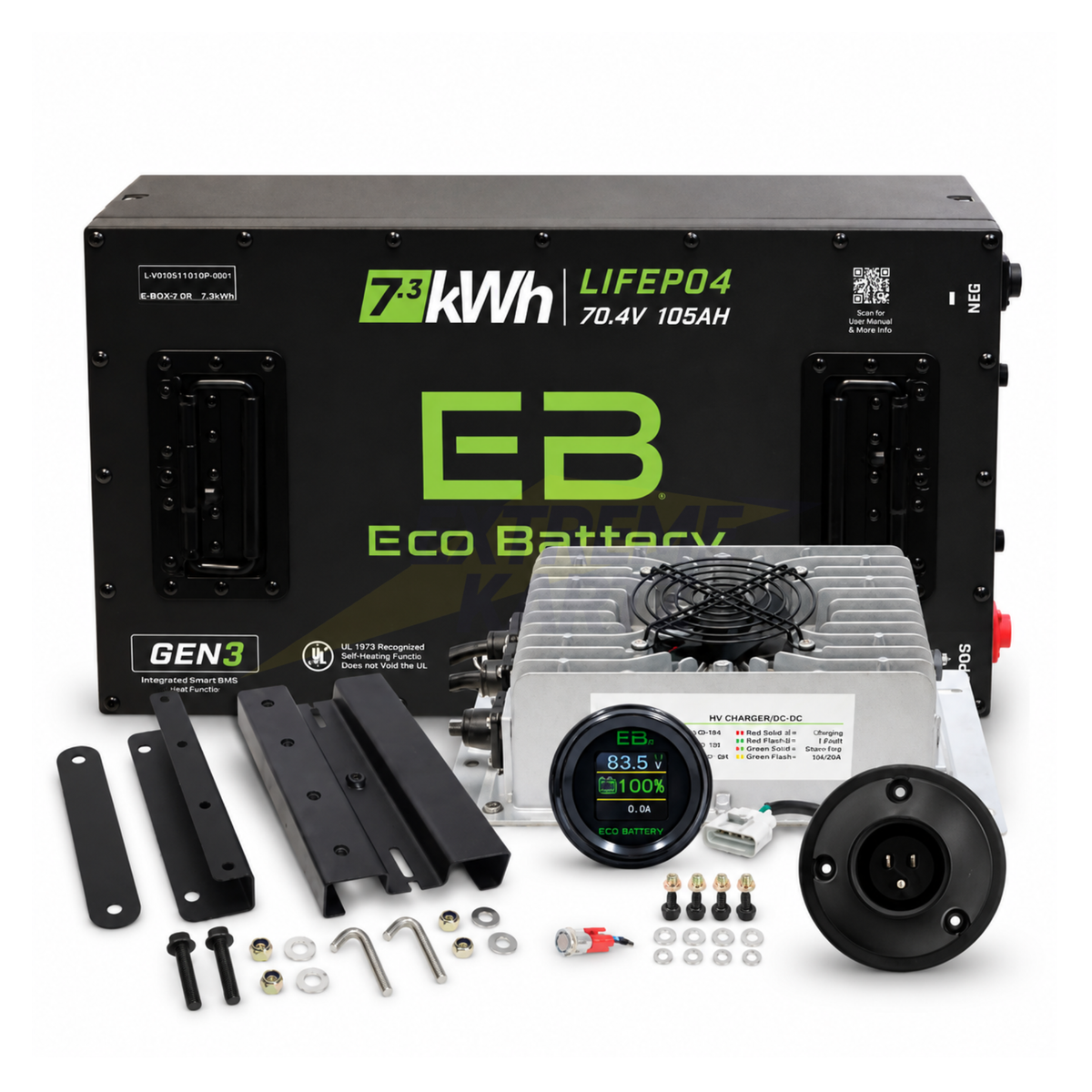

Yamaha Drive / G29 (2007-2010)

• A-070105-06-G3 — 70V 105Ah LiFePO4 Battery
• A-1071 — 70V CAN Charger (Locking Quick Connect)
• A-1272 — [Optional: Select YES above if you do not have one already] 51V to 12V DC-DC Converter
• A-3102 — Charge Meter – CAN Digital 5V
• A-4046 — Yamaha Drive (2007-2010) Charge Port (Locking)
• A-8211 — Yamaha Drive (2007-2010) Mounting Bracket (51V Skinny, 70V)
• A-8003 — Bolt Hardware for 51V Skinny, 70V
• A-4220 — Remote Wake Up Button

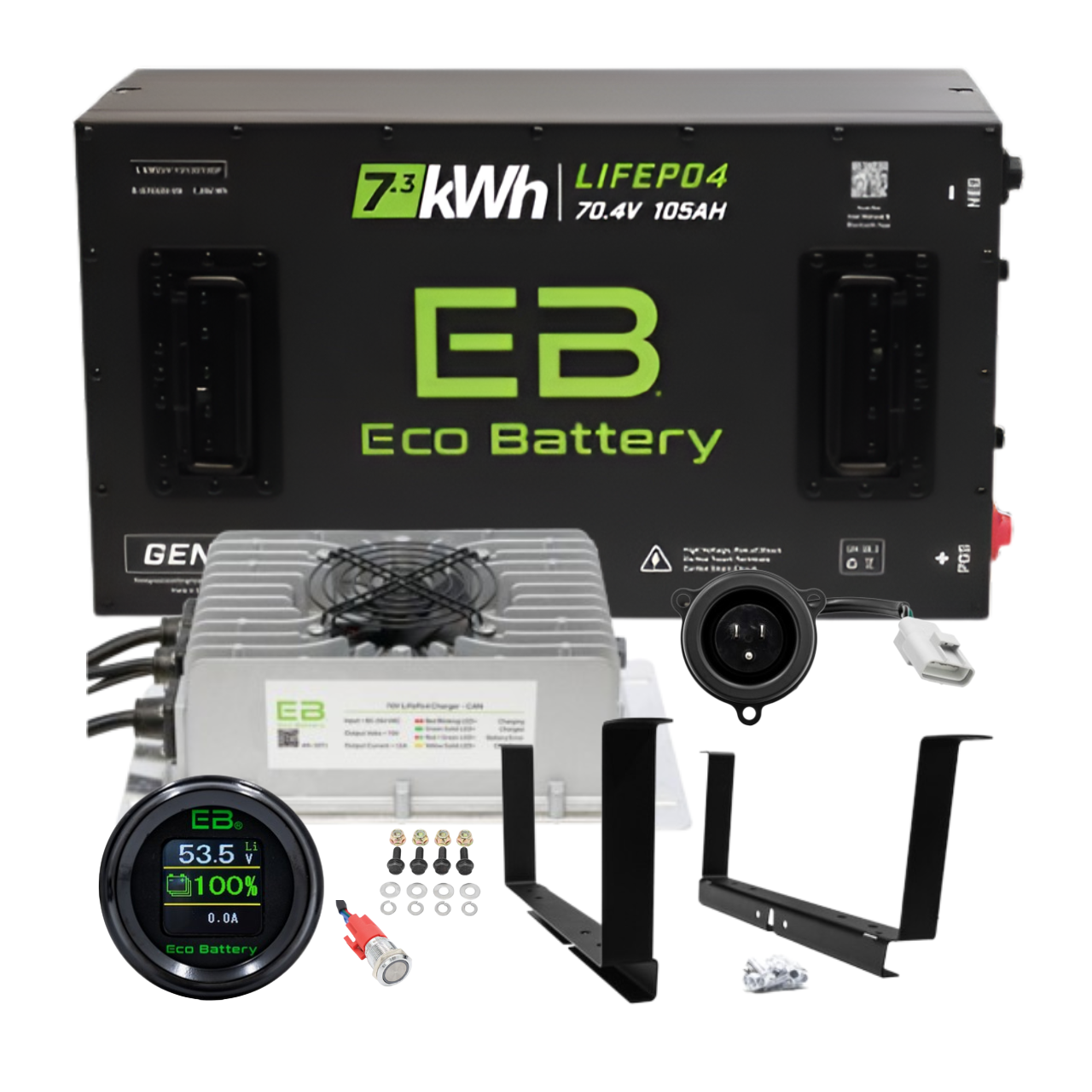

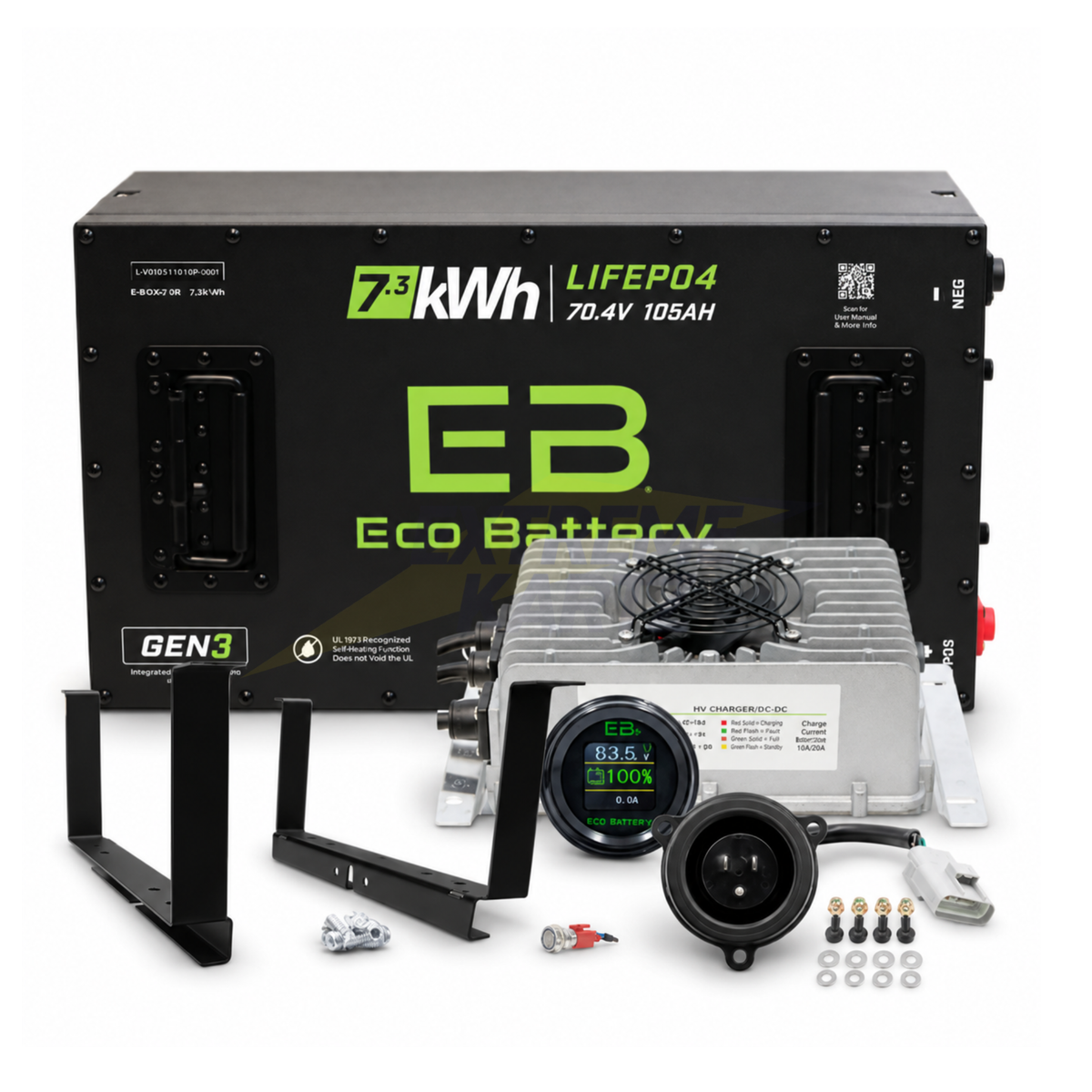

Yamaha Drive (2011+) / Drive2

• A-070105-06-G3 — 70V 105Ah LiFePO4 Battery
• A-1071 — 70V CAN Charger (Locking Quick Connect)
• A-1272 — [Optional: Select YES above if you do not have one already] 51V to 12V DC-DC Converter
• A-3102 — Charge Meter – CAN Digital 5V
• A-8201 — Yamaha Drive (2011+) Mounting Bracket (All EB’s except thru-hole)
• A-4042 — Yamaha Drive (2011-) Charge Port (Locking)
• A-8003 — Bolt Hardware for 51V Skinny, 70V
• A-4220 — Remote Wake Up Button
