The Ultimate Guide to Golf Cart Rims and Tires

Why the Right Golf Cart Rims and Tires Change Everything

Golf cart rims and tires are one of the most impactful upgrades you can make to your cart — affecting ride quality, ground clearance, speed, handling, and style all at once.

Here's a quick overview of what you need to know:

Whether you're replacing worn-out stock tires, going bigger for off-road trails, or upgrading the look of your neighborhood cruiser, the options can feel overwhelming. There are over 1,100 tire and wheel combinations available across just the major categories — and that's before you factor in your specific cart model, lift height, bolt pattern, and intended terrain.

This guide cuts through the noise. It covers everything from sizing and fitment to tire types, rim finishes, and long-term maintenance — so you can make a confident decision the first time.

I'm Martin Davis, owner of Extreme Kartz and an experienced guide in the golf cart upgrade space, helping owners find the right golf cart rims and tires for their exact cart, terrain, and goals. Let's start with the fundamentals so you can move forward with clarity.

Understanding Golf Cart Rims and Tires Sizes and Fitment

When we talk about golf cart rims and tires, we are looking at two distinct measurements that must work in harmony: the wheel diameter (the metal rim) and the tire’s outside diameter (OD).

Standard golf cart wheels typically come in 8, 10, 12, 14, and even 15-inch sizes. The 8-inch and 10-inch sizes are common for "non-lifted" or stock carts. However, if you want that aggressive, modern look, 12-inch and 14-inch wheels are the industry favorites.

The tire height (OD) is where fitment gets tricky. Most stock carts come with 18-inch tall tires. As you move up to 20-inch, 22-inch, or 23-inch tires, you gain ground clearance but run the risk of the rubber rubbing against your cart's body or wheel wells. To help you navigate this, we've outlined the general requirements below.

Tire OD vs. Lift Kit Requirements

For a deeper dive into brand-specific wheel options, check out our guide on Golf Cart Wheels for Yamaha, EZGO, ClubCar.

Impact of Wheel Size on Performance and Speed

Changing your wheel and tire size isn't just an aesthetic choice; it’s a performance modification.

• Ground Clearance: Larger tires (22"–23") naturally sit higher, allowing you to traverse rocky trails or uneven neighborhood paths without scraping the undercarriage.
• Top Speed: A larger tire has a larger circumference. For every rotation of the motor, you travel further, which can increase your top speed by 1-2 mph.
• Torque Loss: The trade-off for speed is torque. Larger tires require more energy to get moving. If you have a heavy 4-passenger cart or live in a hilly area, you might notice a slight "sluggishness" on inclines when moving to 23-inch tires.
• Ride Quality: This is often determined by the sidewall. A 10-inch wheel with a "beefy" tire (like a 205/50-10) has more rubber to absorb bumps. Conversely, a 14-inch wheel with a low-profile tire (like a 215/40-12 or 205/30-14) offers a "stiffer," more automotive-like handling feel but transmits more vibration from the road.

Matching Golf Cart Rims and Tires to Your Cart Model

Not all carts are created equal. While most major brands (Club Car, EZGO, Yamaha) use a standard 4x4 bolt pattern (4 bolts spaced 4 inches apart, or 4x101.6mm), the hardware and clearance differ.

• Club Car: Known for tighter wheel wells. Even a 20-inch tire often requires a small lift to avoid rubbing during sharp turns.
• EZGO: Generally the most "forgiving" for larger tires. Many stock EZGO TXT or RXV models can fit a 20-inch tire without a lift kit.
• Yamaha: Yamaha carts often use metric lug nuts (12mm x 1.25), whereas Club Car and EZGO typically use imperial (1/2” x 20). Always ensure your lug nut set matches your axle threads!
• Offset: Most aftermarket golf cart rims and tires feature a "negative offset." This pushes the wheel further away from the cart, widening the stance. This is crucial for stability on lifted carts and provides the necessary clearance for suspension components.

Ready to swap them out? Follow our How to Change Your Golf Cart Wheels & Tires: A Step-by-Step Guide for a smooth installation.

Choosing the Right Tires for Your Terrain and Use Case

The "best" tire depends entirely on where you drive. We categorize tires into four main buckets:

1. Turf Tires: These are the standard "S-pattern" or "Sawtooth" tires. They are designed specifically to be gentle on golf course grass while providing enough grip for paved paths.
2. Street Tires: These look like miniature car tires. They offer the best grip on pavement and the quietest ride.
3. All-Terrain (AT): The most popular choice for neighborhood "crossovers." They feature a deeper tread than street tires but aren't as aggressive as mud tires. They work well on gravel, dirt, and grass without being overly noisy on the road.
4. Mud-Terrain (MT): These have massive lugs designed to "self-clean" in deep mud or loose sand. They look incredible on lifted carts but can be noisy and vibrate on smooth pavement.

For a detailed breakdown of tread patterns, visit Golf Cart Tires for Every Terrain.

DOT-Approved Tires for Street-Legal Use

If you plan on driving your cart on public roads (where local laws allow), you need DOT-approved tires. These tires meet U.S. Department of Transportation safety standards for speed, load, and durability.

Brands like GTW, Madjax, Nivel, and SteelEng offer excellent DOT-rated options for street-focused setups. Radial tires are a premium sub-set of DOT tires; they use a different internal construction (belt plies running 90 degrees to the direction of travel) that typically delivers a smoother ride, better heat dissipation, and longer tread life on hot pavement. You can learn more about these safety standards in our Golf Cart Tires overview.

Off-Road Performance and Lifted Combinations

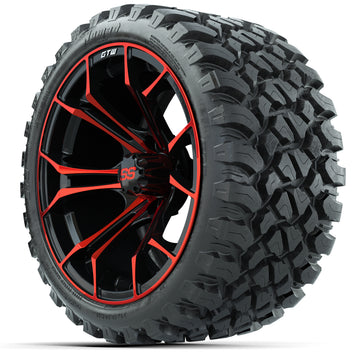

For those taking their carts into the wild, a lifted combination is the only way to go. Pairing a 5-inch or 6-inch lift kit with 23x10-12 or 23x10-14 tires transforms a golf cart into a capable utility vehicle.

Popular off-road tire series like the Madjax Timberwolf and Raptor are designed with reinforced sidewalls (often 4-ply or 6-ply) to resist punctures from thorns and sharp rocks. A 6-ply rating is the gold standard for durability if you're hauling heavy loads or navigating brush. Check out the latest in off-road tech here: New Madjax Timberwolf and Raptor Series Tires.

Selecting Premium Rims, Finishes, and Maintenance

The rims are the "jewelry" of your golf cart. While basic steel wheels are durable and functional, most owners opt for cast aluminum alloy rims. Aluminum is lighter, dissipates heat better, and allows for much more intricate designs.

Popular Finishes

• Glossy Black: Sleek and modern; hides brake dust well.
• Matte Black: Offers a rugged, stealthy "tactical" look.
• Machined: This finish features aluminum that has been cut to a bright shine, often contrasted with black or gunmetal paint in the recesses.
• Chrome: The classic high-shine look. It requires the most maintenance to keep clean but offers unmatched "pop" in the sun.

Choosing the right look is a personal journey, but we have some tips to help: Golf Cart Rims: How to Select the Perfect Set.

The Benefits of Pre-Mounted Golf Cart Rims and Tires

At Extreme Kartz, we almost always recommend buying complete wheel and tire combos. Why?

1. Professional Mounting: Tires are mounted to the rims using professional equipment, ensuring the bead is seated correctly without scratching your new rims.
2. Convenience: They arrive at your door aired up and ready to bolt on. No trips to a local tire shop (many of which don't have the right equipment for small golf cart wheels). Plus, all our kits ship in 1-2 business days.
3. Bundle Savings: Buying as a set of four is significantly cheaper than buying individual parts.
4. Included Hardware: Most combos include the necessary center caps and a fresh set of lug nuts.

Once installed, don't forget the final step: alignment. A cart that pulls to one side will "scrub" the tread off your expensive new tires in months. See our guide: How to Properly Align Your Golf Cart Wheels for a Smooth Ride.

Long-Term Care and Durability

To get the most out of your investment, follow these three maintenance rules:

• Tire Pressure: Check your PSI monthly. Most golf cart tires run between 15 and 25 PSI. Under-inflation causes sluggishness and sidewall wear; over-inflation leads to a harsh ride and center-tread wear.
• Rotation: Just like a car, your front tires wear differently than your rears (especially since the rear tires are the "drive" tires). Rotate them every 6–12 months. Use our Golf Cart Tire Rotation Guide for the correct patterns.
• Cleaning: Use mild soap and water. Avoid harsh "tire shine" chemicals that contain petroleum, as they can actually dry out the rubber over time and cause cracking (dry rot).

Frequently Asked Questions about Golf Cart Rims and Tires

What is the largest tire I can fit without a lift kit?

It depends on the cart. For a stock EZGO, you can usually fit up to a 20.5-inch tire. For Club Car and Yamaha, we recommend sticking to 18.5 inches unless you are prepared for some minor rubbing or plan to install a lift.

Do I need special lug nuts for aluminum rims?

Yes. Most aftermarket aluminum rims require "tapered" lug nuts to seat properly in the wheel's mounting holes. Additionally, the lug holes on aluminum rims are often narrower than steel wheels, requiring a "thin-wall" socket or a specific spline-drive tool.

How do I know if my tires are street legal?

Look for the "DOT" symbol stamped into the sidewall of the tire. If it’s there, the tire has been tested and approved for use on public roads. If it says "NHS" (Non-Highway Service), it is strictly for off-road or golf course use.

Conclusion

Upgrading your golf cart rims and tires is the fastest way to turn a standard fleet vehicle into a personalized performance machine. By understanding the relationship between wheel size, tire diameter, and lift requirements, you can ensure your cart not only looks better but drives better too.

At Extreme Kartz, we don't just sell parts; we provide system-based solutions. We focus on fitment accuracy and real-world performance to ensure that when your new wheels arrive, they work perfectly with your specific Club Car, EZGO, or Yamaha model.

Ready to transform your ride? Check out golf cart wheel and tire combos to get a matched set that fits and performs the way you want—and if you have any questions about sizing, bolt pattern, offset, or clearance, our team is here to help you dial in the right setup.
