Club Car DS Navitas Controller Kit - 600 amp or 440 amp

Club Car DS Navitas Controller Kit - 600 amp or 440 amp

Unlock the full potential of your Club Car DS with the Navitas TSX 3.0 Controller Kit. Available in both 440AMP and 600AMP configurations, this performance upgrade is designed to improve torque, throttle response, control, and, on eligible setups, speed. Speed results are application-dependent and vary based on the cart, motor, battery setup, gearing, tire size, weight, and modifications.

Compatibility

• Fits Club Car models:
  • DS Series

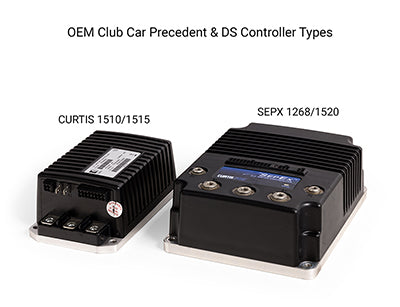

  • DS with 1510/1515 controller
  • DS with SepX 1268/1520 controller

Model Selection Guide

• 440AMP Controller Kit – Ideal for moderate performance upgrades, smoother rides, improved torque, and better drivability.

• 600AMP Controller Kit – Maximum power and torque for extreme terrain, oversized tire applications, and more demanding setups.

*Note: Speed increases depend on your golf cart model, its motor, its weight, whether it is a 2-seater or 4-seater, and level of modification, including tires, lift kit, gearing, voltage, battery setup, and motor condition. On Series carts, the controller primarily improves torque and drivability; a controller alone may not increase top speed.

Pre-Installation Requirements

• Vehicle must match the selected Club Car DS application.
• Heavy-duty solenoid required for 600a; recommended for 440a.
• Battery requirements:
  • Lithium:
    • 440AMP controller requires 400AMP discharge capability
    • 600AMP controller requires 500–600AMP discharge capability
  • Lead-acid: 4-gauge or thicker battery cables required
• If you select this variant: DS Series, a 3-Amp diode is strongly recommended to protect the controller during installation. Then, if you upgrade to the Curtis Heavy Duty solenoid above, you will likely also need this 3a Diode: Diode 3 Amp with Spade Terminals

Key Performance Benefits

• Potential top-speed gains on eligible setups: up to 8–12mph with 600amp or up to 4–7mph with 440a*
• Up to 75% more torque with 600a controller or up to 45% more torque with 440a
• Improves hill climbing, acceleration, and throttle response
• Designed to work with compatible Club Car DS applications when setup requirements are met
• Adjustable performance settings through compatible programming options
• Handles oversized tires, including many 22"–23" applications
• Enhances low-speed efficiency for smoother drivability
• Compact, lightweight design installs without major modifications in most applications
• Built-in thermal protection and motor over-speed safeguard

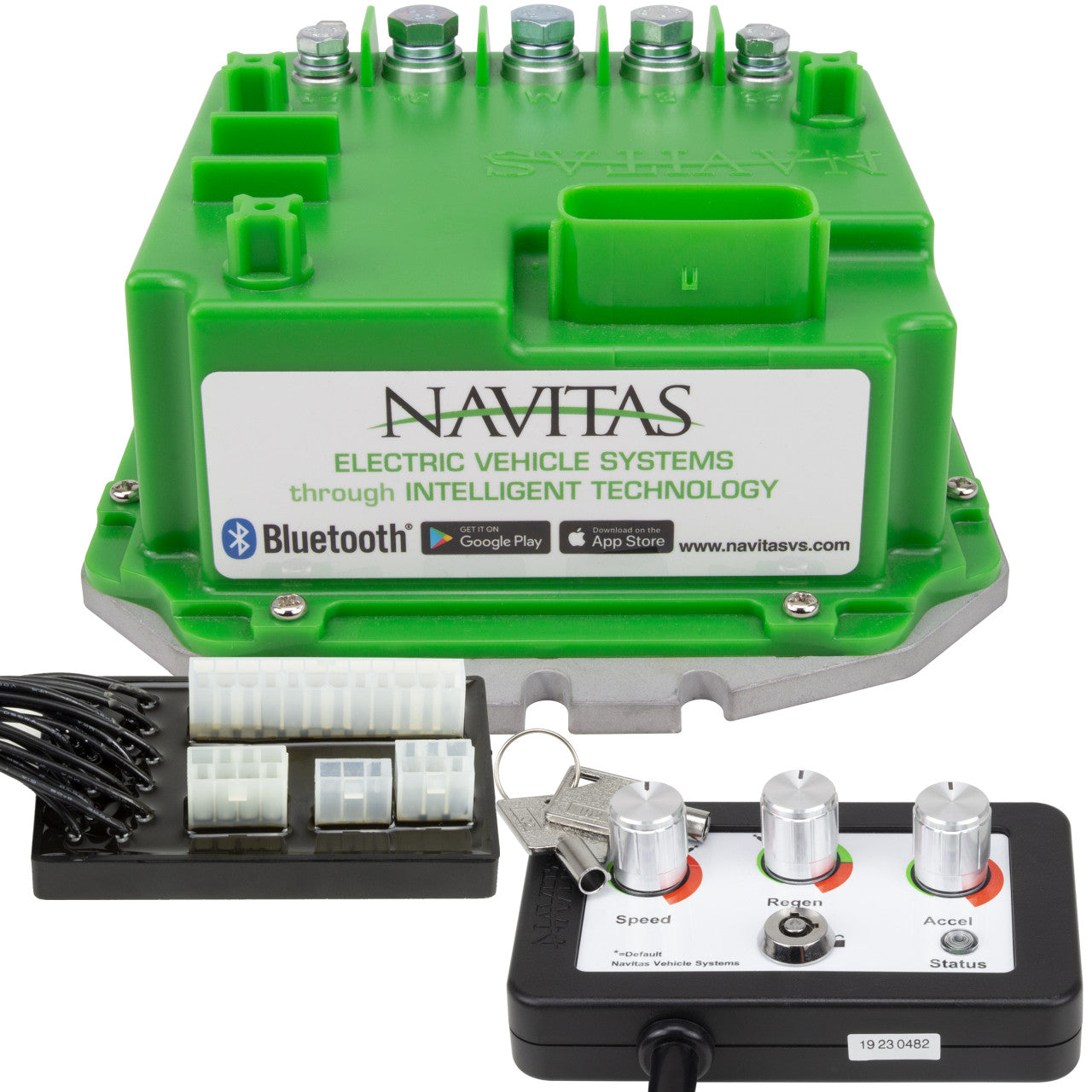

Included in the Kit

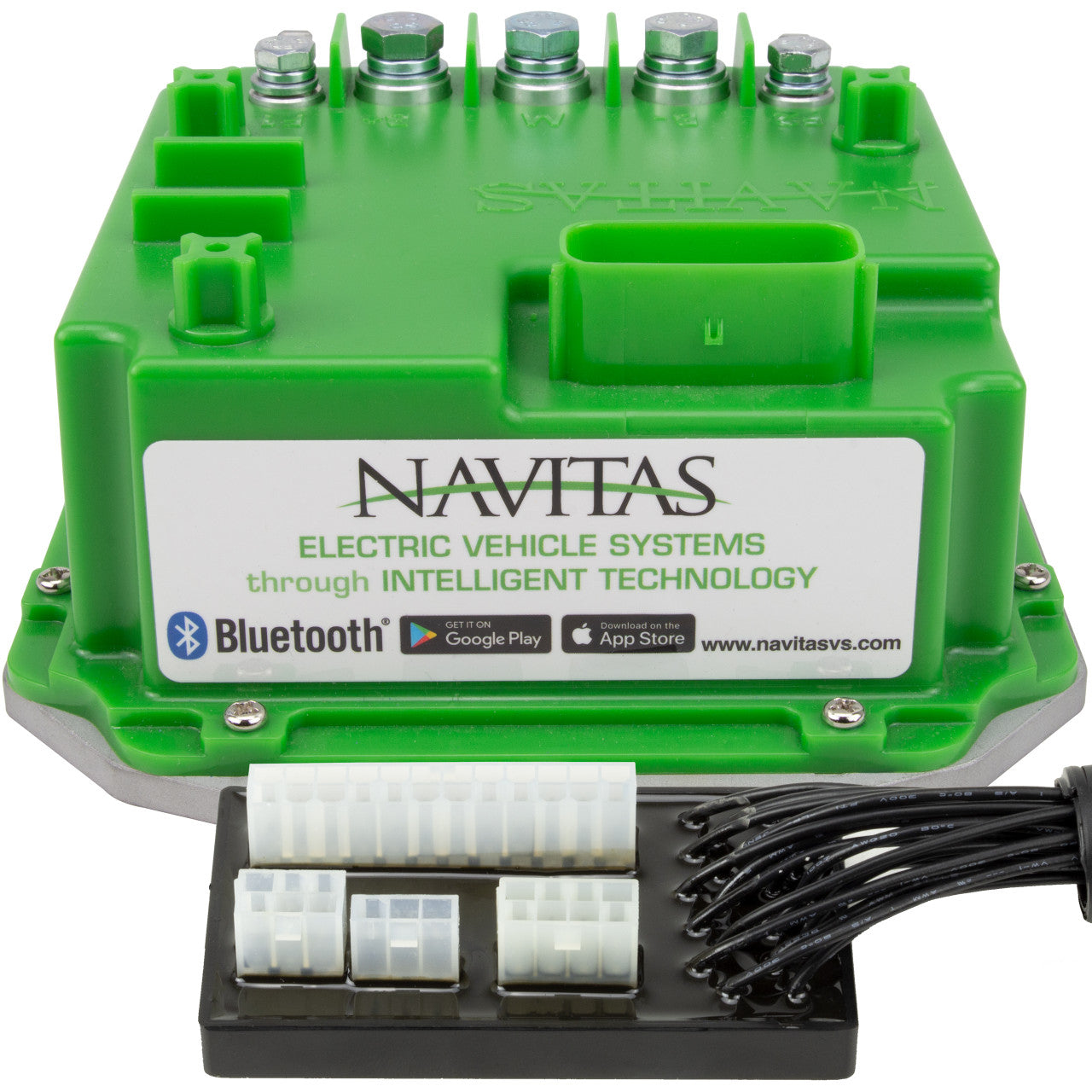

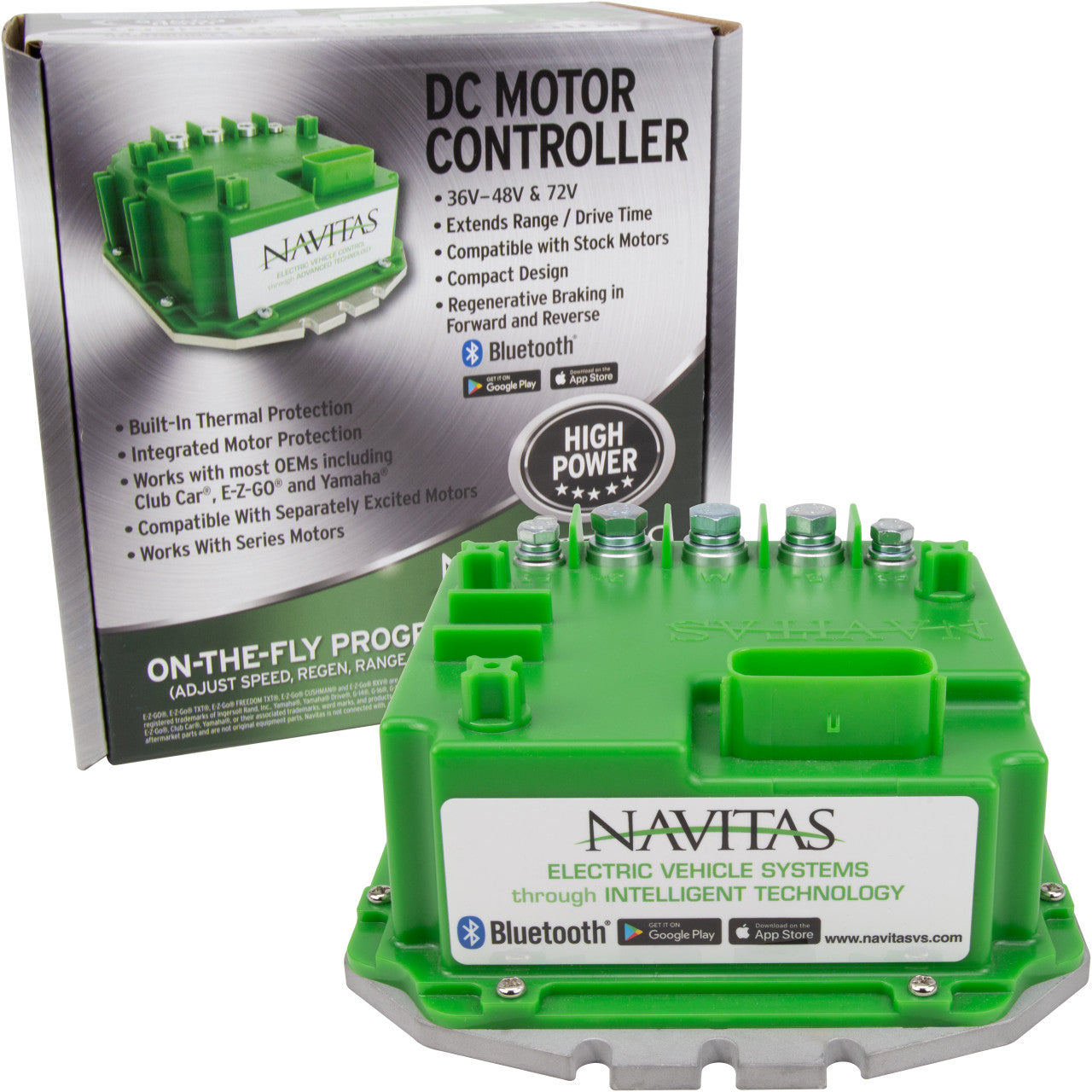

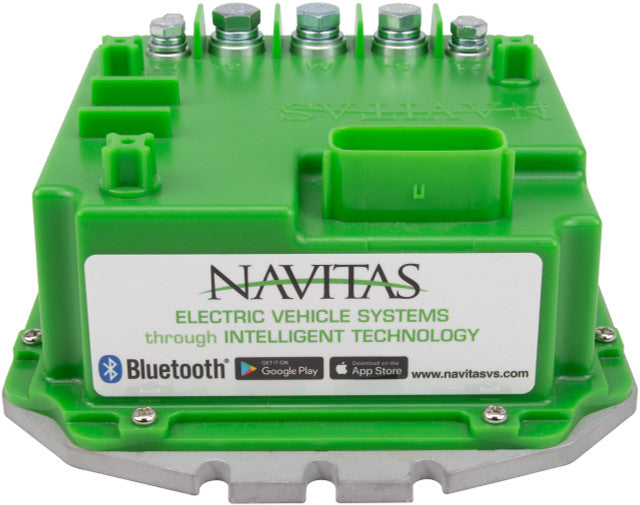

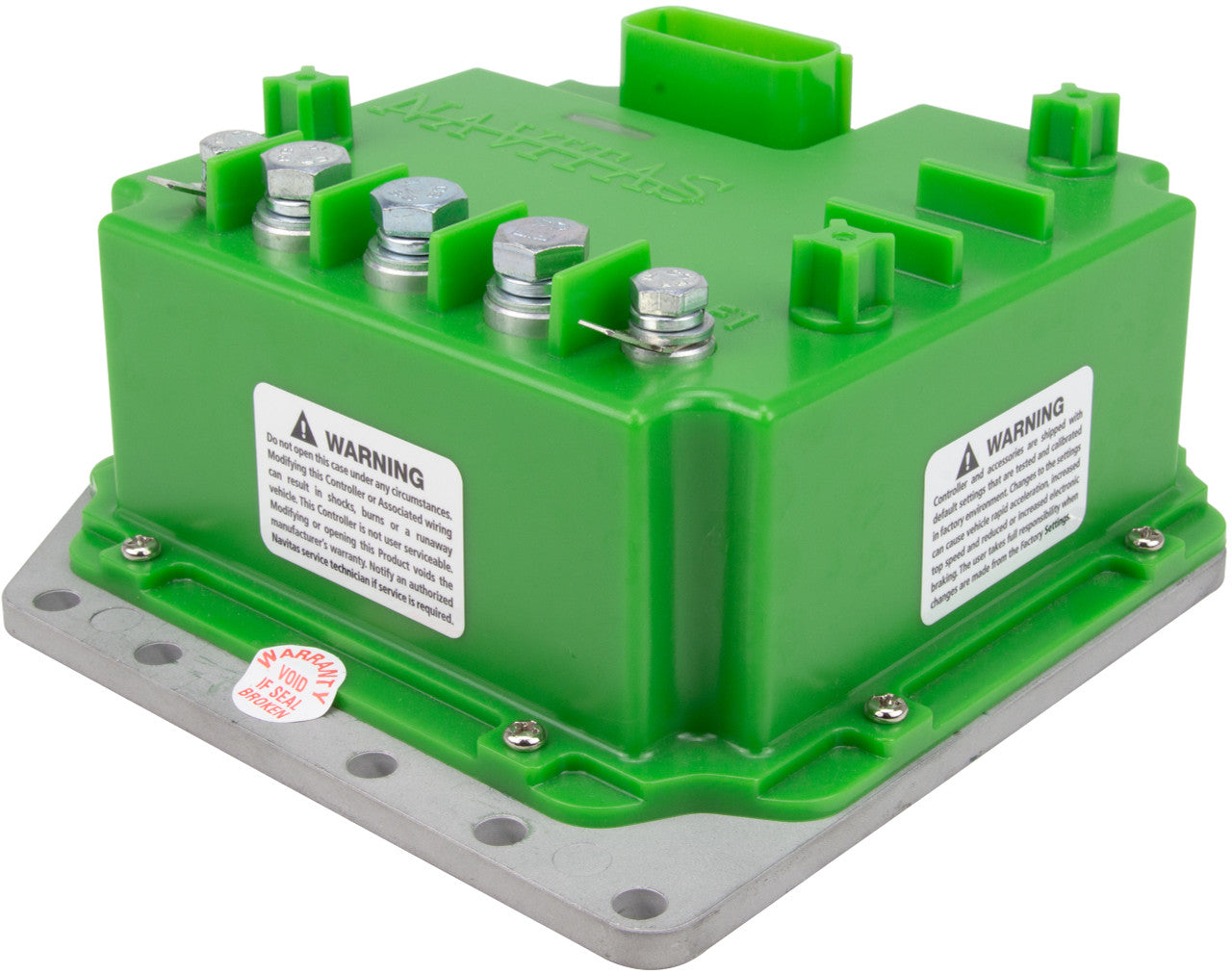

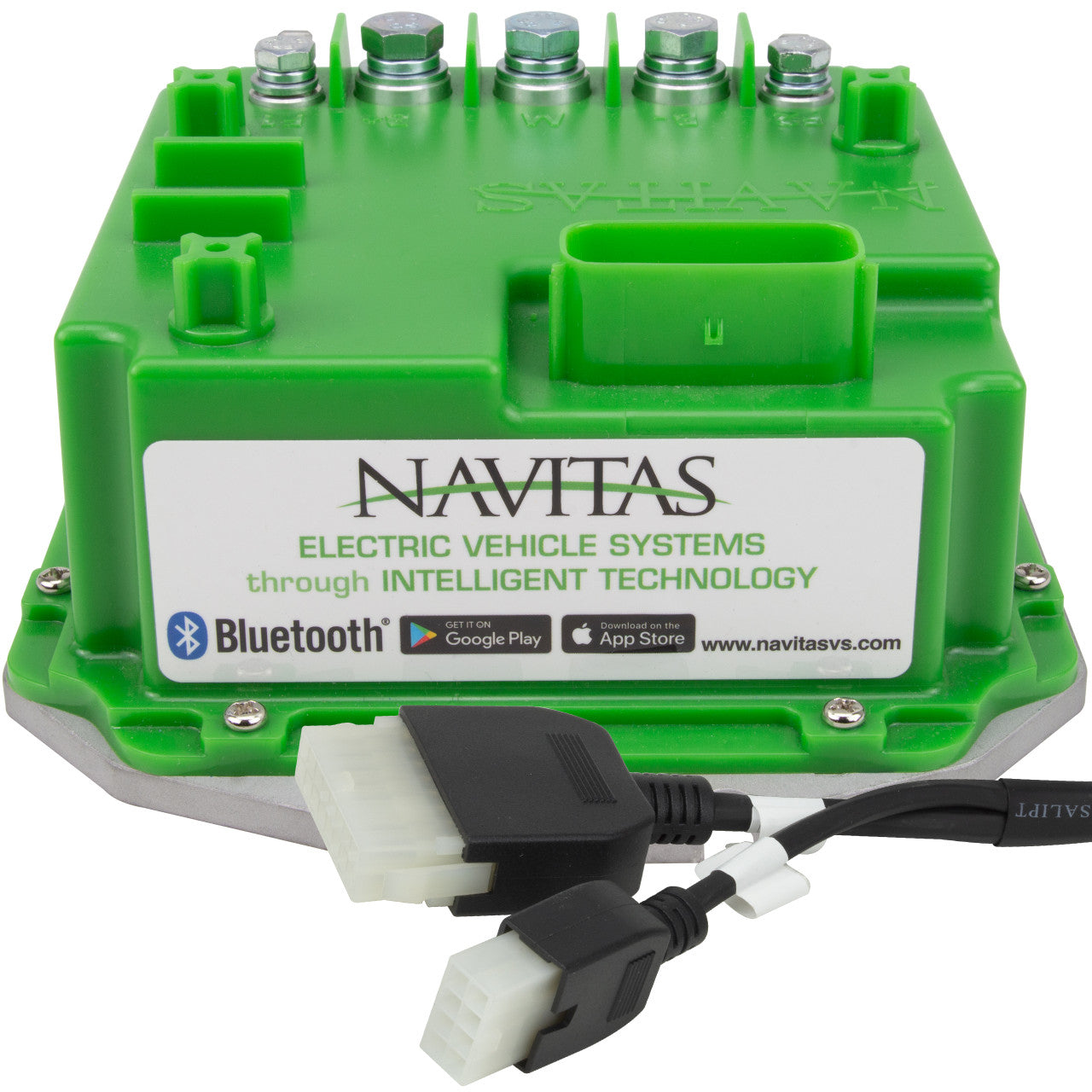

• Navitas TSX 3.0 Controller – choose 440AMP or 600AMP

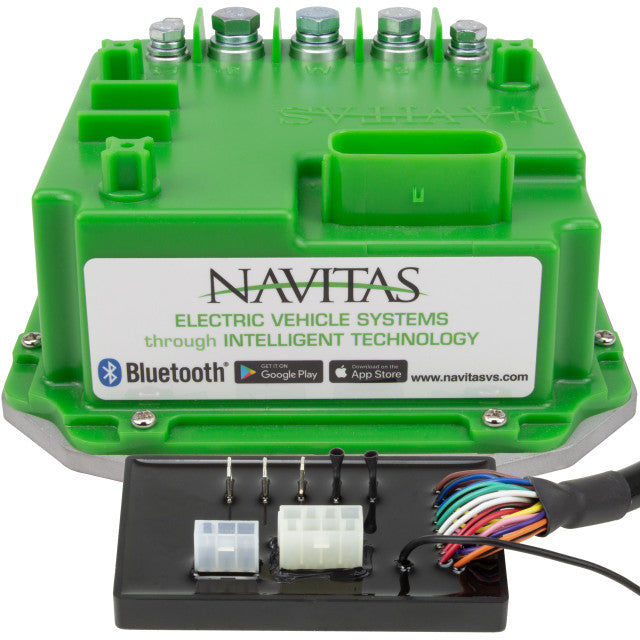

• Plug-and-play Personality Module: 16-pin harness for easy integration with existing Club Car DS wiring

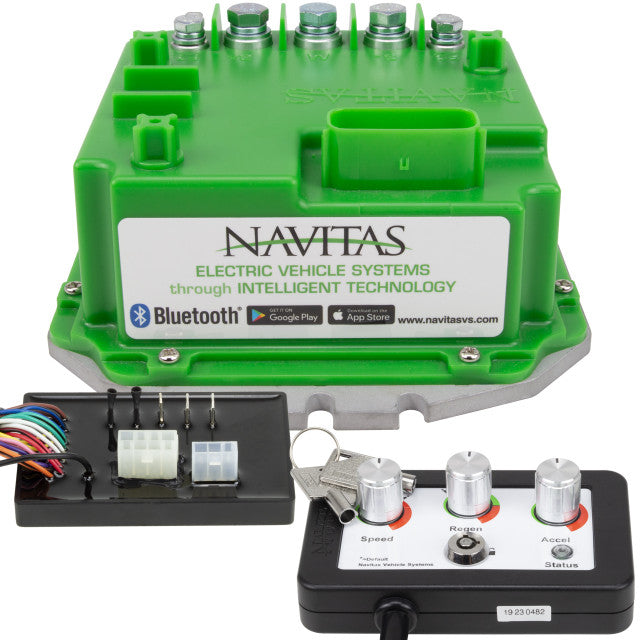

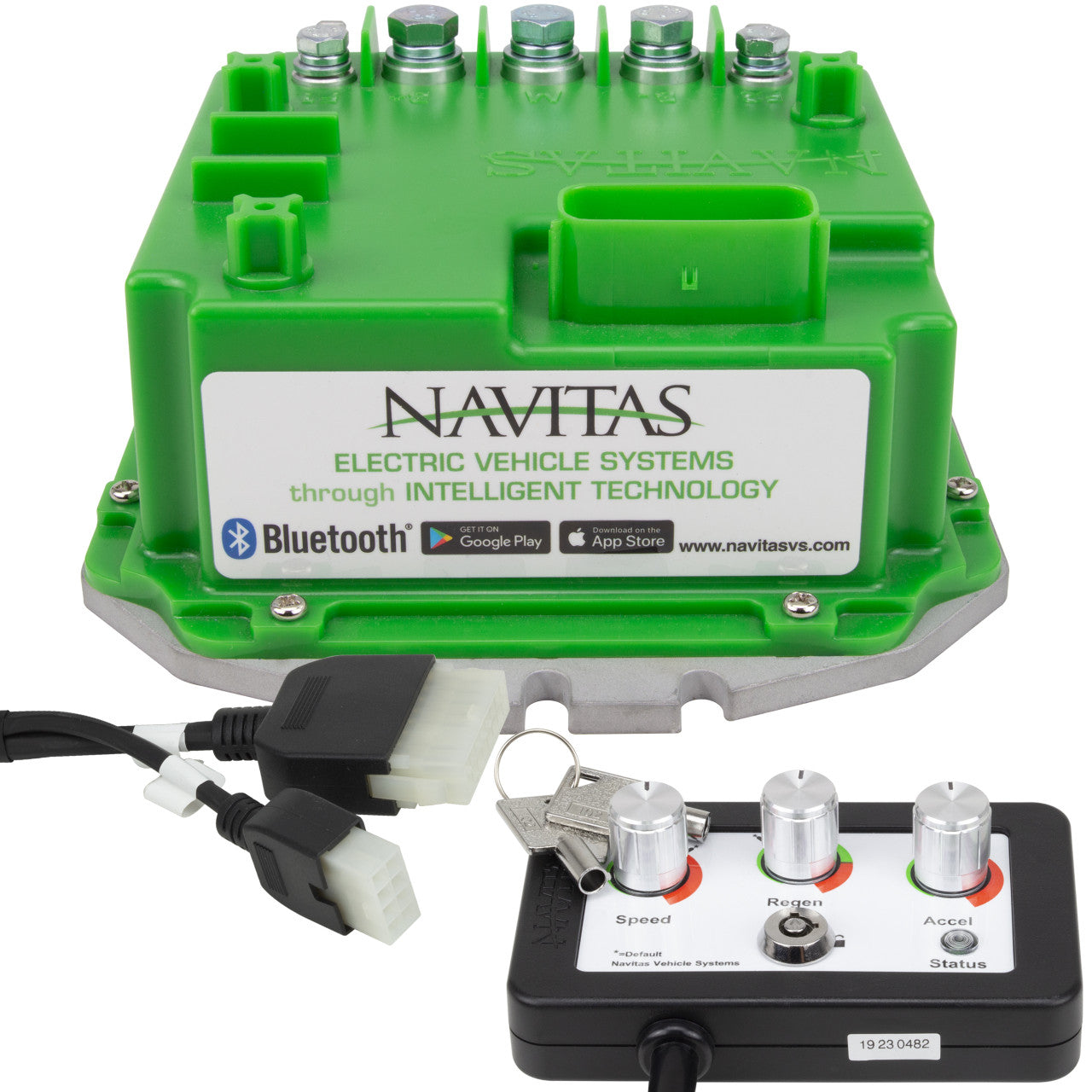

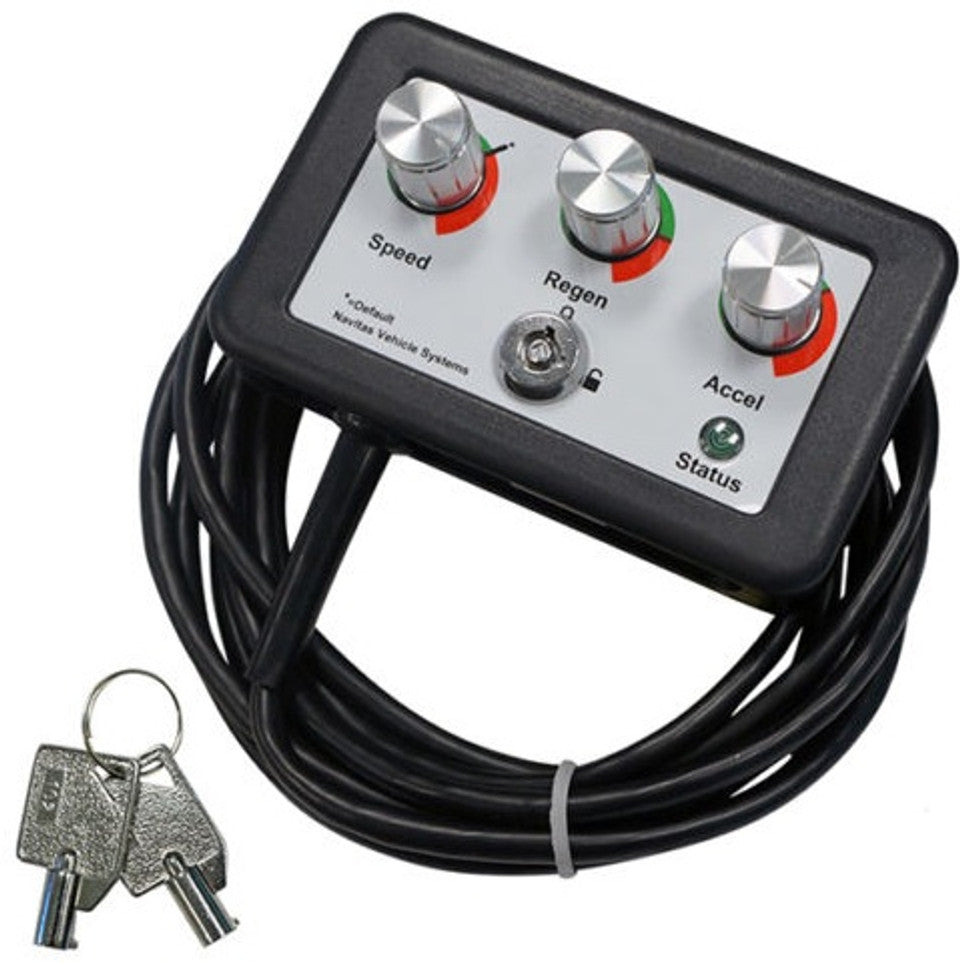

• Dash-mountable On-The-Fly (OTF) Programmer (Optional)

On-The-Fly Programmer Capabilities

• Adjust acceleration, performance settings, and supported controller functions in real time
• Toggle between performance and economy modes instantly
• Lock your settings to prevent tampering
• Remove or disable dials for added control

Bluetooth App Control (Navitas App – iOS & Android)

• Monitor supported cart and controller data through the Navitas app
• One-click lockout feature for added security
• Instant alerts and diagnostics sent to technicians
• Supported app features may vary by cart type and setup

Why Choose Navitas for Your Club Car DS?

• Proven torque and performance gains with easy plug-and-play installation
• Compatible with supported Club Car DS applications
• Built to perform — on the street, golf course, or trail
• Customize your ride anytime with mobile app or dash-mounted controller
