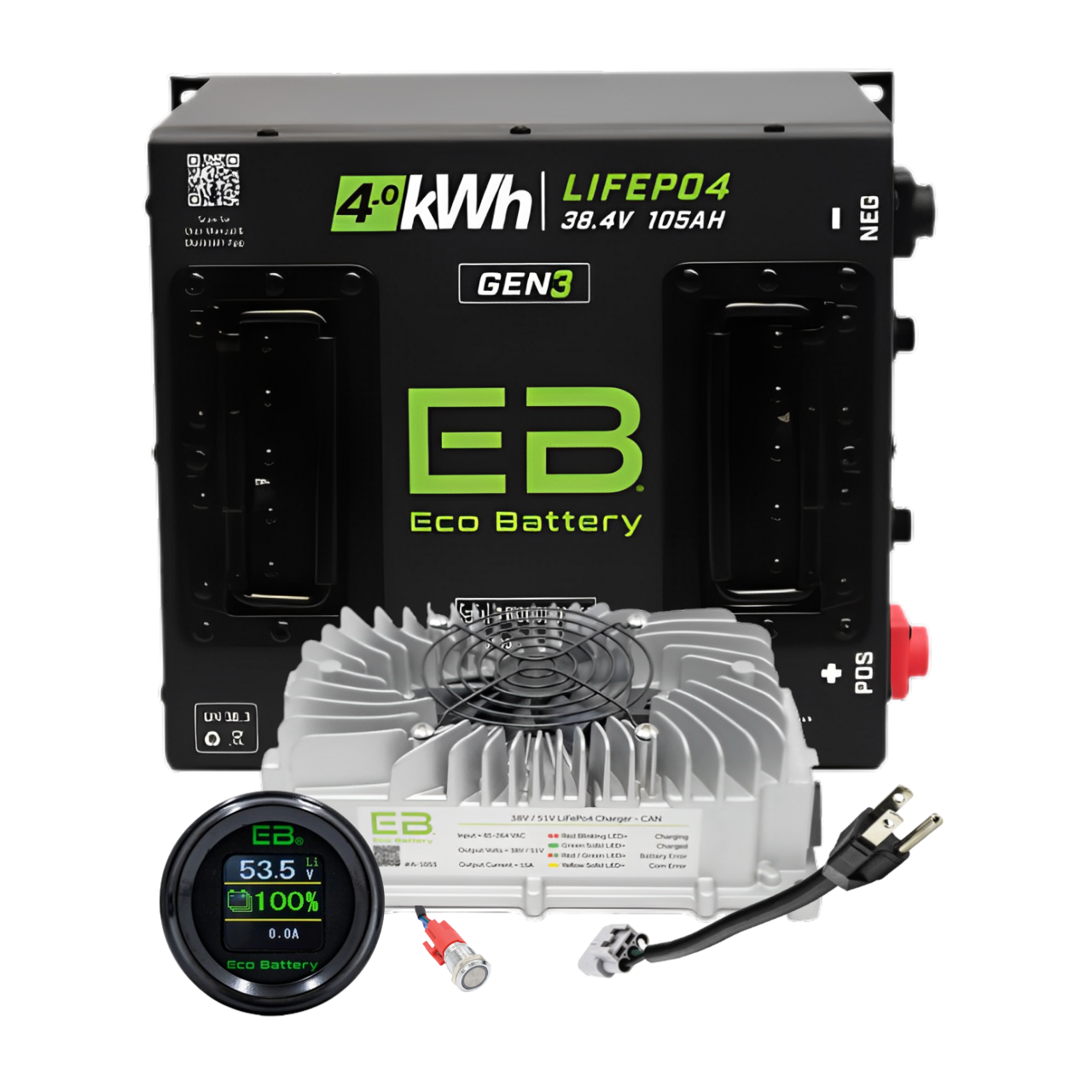

ECO BATTERY 36V 105AH LITHIUM BUNDLE

More power, zero maintenance

The Eco 36V Golf Cart Lithium Battery Conversion Kit gives your cart the performance upgrade in torque and speed you've been looking for. Why stop there? Your cart won’t. Upgrading your cart batteries to lithium can also increase your drive time up to 40-45 miles. With higher max and continuous amp output than its competitors, the Eco LifePo4 Battery is a top choice to pair with your high performance upgrades.

Top Features

• Higher output for more power and longer run times: 600A max (3 sec), 300A max (30 sec), and 175A continuous discharge
• 5x lighter than lead acid
• 8 Year Warranty, backed by Eco's best in class Customer Support
• Easy Install, this battery bundle comes with everything you need to replace your battery
• Proprietary BMS (Battery Management System) guarantees it will work with your motor & controller upgrades

Not Sure which Eco Battery is right for you?
Check out our Eco Battery Selection Guide
Or give us a call and talk to our lithium experts

Why should you upgrade to Lithium from Lead Acid?

10X LIFE SPAN
Lithium batteries last 10 times longer than lead acid batteries. Spend less time replacing batteries, and more time cruising.

ZERO MAINTENANCE
You never have to add water again! Plus, no more acid spills, smells, or corroded terminals.

5X LIGHTER
A single lithium battery is 5X lighter than lead acid, giving you 2X the run time. A single battery solution will also free up space in the battery bay for additional storage solutions, or better yet, an onboard charger.

FASTER CHARGE
Lithium batteries charge faster than lead acid systems. And there is no memory effect, so you can charge partially or fully, at any time.

What’s included?

Eco Battery "bundles" are specific to the Cart Make & Model and Battery selected above. By adding a 36V Golf Cart Lithium Battery Conversion Kit to your cart, you will have everything you need for a quick and easy setup. The following products will be added specific to your selections above.

Budget Bundle

• A-038105-04 38V 105Ah LifePo4 Battery
• A-1055 38V Charger with Locking Quick Connect
• A-4003 Chargeport jumper (since you are not getting a port plug, you will need this for your battery to work)
• A-4211 5-pin Digital Cable (since you are not getting a charge meter, you will need this for your battery to work)
• No hardware
• A-1236 [Optional: Select YES above if you do not have one already] 38V to 12V DC-DC Converter

If you would like to separately purchase a charge meter, you can add it here

By selecting the Budget Bundle, this means you are fine with:

• To charge your battery, lifting up your front seat to plug your extension chord into the charger, since you will not be getting a port plug
• Viewing your battery’s level of charge via the Eco Battery app on your phone, since you will not be getting a charge meter
• Procuring your own hardware (often simply nuts & bolts), and/or making any needed modifications to your battery bay, to secure your battery and ensure fitment

Club Car DS (36V)  - 36v 105ah Bundle

• A-038105-04 38V 105Ah LifePo4 Battery
• A-8004 Bolt Hardware for 38V
• A-1055 38V Charger (Locking Quick Connect)
• A-3102 Charge Meter – CAN Digital 5V
• A-4012 Club Car DS Charge Port (Locking)
• A-1236 [Optional: Select YES above if you do not have one already] 38V to 12V DC-DC Converter

EZGO TXT (36V) Bundle

• A-038105-04 38V 105Ah LifePo4 Battery
• A-8004 Bolt Hardware for 38V
• A-1055 38V Charger (Locking Quick Connect)
• A-3102 Charge Meter – CAN Digital 5V
• A-4022 EZGO TXT Charge Port (Locking)
• A-1236  [Optional: Select YES above if you do not have one already] 38V to 12V DC-DC Converter

Yamaha G1-G16 (36V) - 36v 105ah Bundle

• A-038105-04 38V 105Ah LifePo4 Battery
• A-8004 Bolt Hardware for 38V
• A-1055 38V Charger (Locking Quick Connect)
• A-3102 Charge Meter – CAN Digital 5V
• A-4003 Chargeport Jumper (Locking Quick Connect Male to 110 US Male)
• A-1236 [Optional: Select YES above if you do not have one already] 38V to 12V DC-DC Converter

WILL NOT WORK WITH CARTS THAT HAVE A FACTORY LITHIUM BATTERY.

Install Tips From The Pros:
Some battery chargers are CAN enabled, and will have a male CAN plug to connect to either one of the two CAN ports. If your charger is CAN enabled, the charger will NOT charge unless CAN is connected. Battery must be powered on with the power button illuminated to accept a charge. If your charger utilizes CAN charging, you will need to connect the CAN connector from the charger into either of the two CAN ports on the meter cable. CAN communication ports are used for diagnostics, or communicating with a charger or motor controller.

About Eco Battery

Eco Battery is a U.S. based company and was formed with a desire to build the best lithium batteries on the planet. Through tireless hours of R&D, they have designed all of their batteries to provide years of trouble free service. They only use the highest quality LiFePo4 cells from the best manufacturers in the world. Every Eco Battery contains cells that are meticulously sorted and matched for both capacity and resistance.

Product Files

• 38V 105Ah Datasheet
  Quickstart Guide
• Eco Battery User Manual
• 12 Volt Converter Guide

The Extreme Upgrade — Navitas Controllers

Pair your lithium Eco Battery with a Navitas Controller and optimize your cart's speed, range, and acceleration. Shop Navitas 600AMP Controllers

Installation Videos
