Bolt Energy 105AH 48V THIN HIGH Golf Cart Lithium Battery - Professional Kit

Bolt
SKU: BE10551T PRO-K
On Sale
Bolt Energy 105AH 48V THIN HIGH Golf Cart Lithium Battery - Professional Kit
$2,995.00 $2,695.50
$3,743.75
On Sale
Free Shipping: Ships in 1-2 Days
Current Stock:
Out of stock
Adding to cart… The item has been added
Out of stock
Adding to cart… The item has been added
Ships from United States
Payment Options:
image/svg+xml image/svg+xml
Description

Bolt Energy Batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

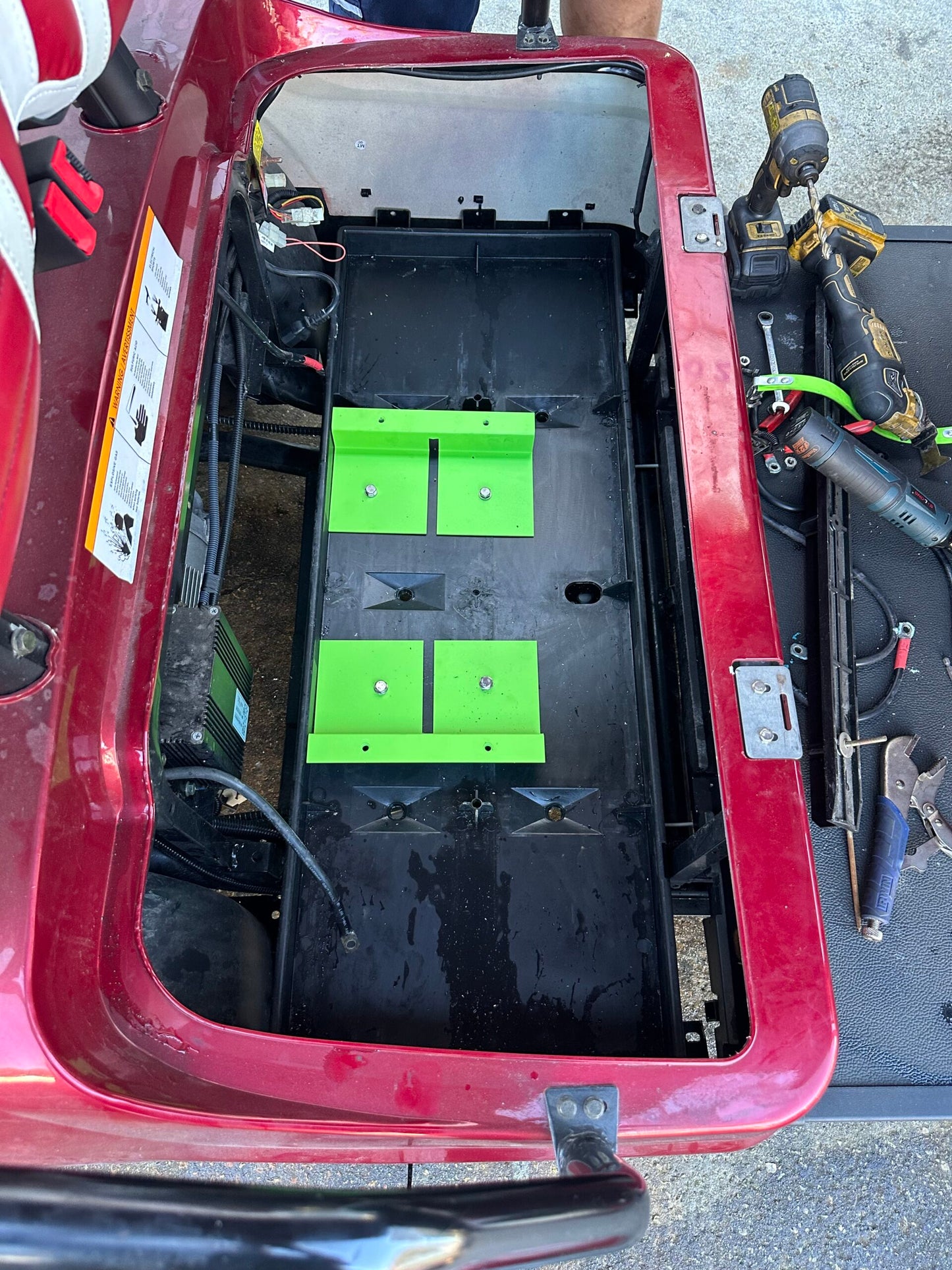

The 51V 105Ah “THIN” was developed to be the easiest golf car battery (in certain models) to install in the marketplace.  Golf Cars with the traditional “E-Z-GO” 22-inch-wide battery tray system, which many competitor vehicles have mimicked, accept this battery without the need for mounting brackets. Drill 4 holes into the tray, bolt, and your battery is mounted. This saves significant installation labor time. Although the shape of this battery will prevent use in ALL vehicles, it will still work in 90% of applications. Internally, it is built exactly the same as the MINI with the only difference being the dimensions. Designed for use in all 48-volt power trains. Ranges, depending on how extreme the car is modified and how the car is loaded and driven, range from 20 to 50 miles.

Features:

  • 51V-105AH BATTERY
  • Bluetooth receiver
  • SOC “state of charge meter”
  • Owners manual “SIMPLE installation instructions”
  • 6- 3/8 battery ring terminal connectors
  • 10-10″ tie straps
  • Bolt Energy USA sticker/s
  • Waterproof high speed charger
  • Mounting brackets, Nutts & bolts
  • AC Hardwire PORT
  • DECO Cover plate AC hardwire universal or club car
  • 30 amp reducer
  • 2-40″ 2AWG premium installation cables
  • 48V- 400A solenoid
  • Lead battery removal strap

MECHANICAL SPECIFICATIONS

  • Dimensions (L x W x H): 20″ x 8.43″ x 10.65″
  • Weight: 105lbs (47.63kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P16S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Stardard
  • Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 40V
  • Recommended Low Voltage Disconnect: 48.0V
  • BMS Reconnect Voltage: 41.6V
  • Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

  • Nominal Voltage: 51.2V
  • Working Voltage: 43.2 – 58.4V
  • Recommended Voltage: 48.0V – 57.0V
  • Nominal Capacity: 105Ah
  • Energy: 5,376Wh
  • Capacity @ 25A: 252 min
  • Efficiency: 0.99
  • Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 58.5V
  • Reconnect Voltage: <58.5V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

Date Sheet Click Here



INSTALLATION VIDEOS

Bolt Energy USA - THIN 48v 105ah Lithium Golf Cart Battery Installation Video

Additional Information
Make:
Yamaha
Make:
Advanced EV
Make:
EZGO
Make:
ICON
Make:
Evolution
Make:
Club Car
Model:
TXT
Model:
DS
Model:
Precedent
Model:
RXV
Nominal Voltage:
48
Range (on stock cart):
20-50 miles
Ideal for:
Stock Cart / 2 Passenger
Ideal for:
Modified Cart / 4 Passenger
Capacity - Amp Hours:
105
Make:
Madjax
Make:
Vivid Peak
Make:
Bintelli
Model:
X-Series
Model:
Bad Boy Buggy
features:
Best in Power (higher max amp output than its competitors);Free Shipping;10yr Warranty!
