Bolt Energy 105AH 48V MINI Golf Cart Lithium Battery - Standard Kit

Bolt
SKU: BE10551M STAN-K
On Sale
Bolt Energy 105AH 48V MINI Golf Cart Lithium Battery - Standard Kit
$2,795.00 $2,395.00
$3,493.75
On Sale
Free Shipping: Ships in 1-2 days
  • 48V BOLT 30 AMP High Output Reducer
  • 6 Way Fuse Block,12V Blade Fuse 6 Circuit ATC/ATO Waterproof Fuse Box Holder with LED Indicator Waterpoof Cover
  • Solenoid, 400+amp 48V Universal Golf Cart Mounted solenoid
Current Stock:
Out of stock
Adding to cart… The item has been added
Ships from United States
Payment Options:
image/svg+xml image/svg+xml
Description

Bolt Energy 105AH 48 Volt Standard Kit - "MINI" HIGH OUTPUT GOLF CART LITHIUM BATTERY

Bolt Energy Batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

The 51V 105Ah “MINI” was developed to be the most versatile golf car battery in the marketplace. There has yet to be a traditional golf car it does not fit in. Designed for use in all 48-volt power trains. Ranges, depending on how extreme the car is modified and how the car is loaded and driven, range from 20 to 50 miles.

Features:

  • 51V-105AH BATTERY
  • Bluetooth receiver
  • SOC “state of charge meter”
  • Owners manual “SIMPLE installation instructions”
  • 6- 3/8 battery ring terminal connectors
  • 10-10″ tie straps
  • Bolt Energy USA sticker/s
  • Waterproof high speed charger

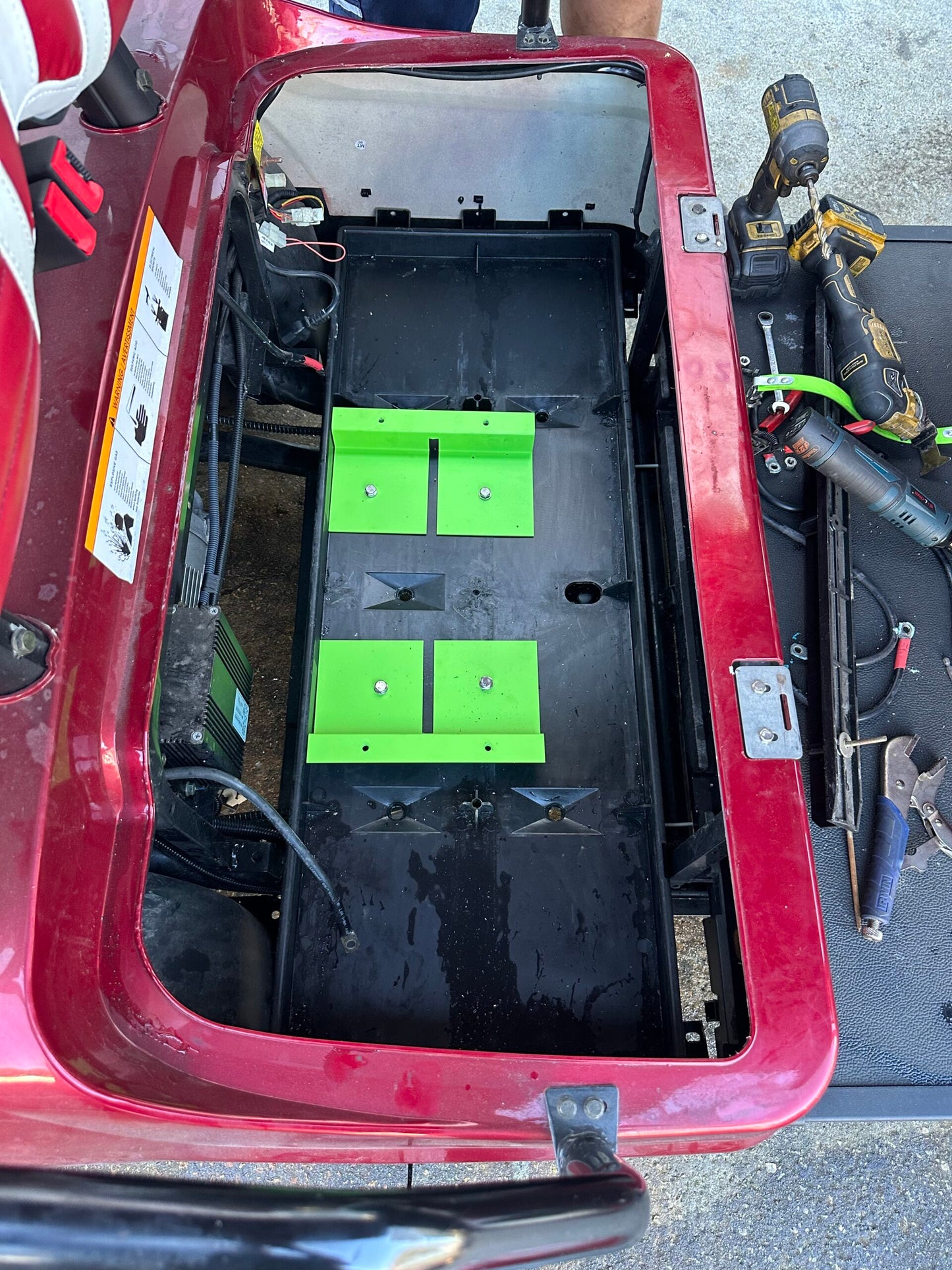

  • Mounting brackets, Nutts & bolts
  • Voted Best Lithium Battery in Warranty, Power, and Overall in our Good, Better, Best Guide

MECHANICAL SPECIFICATIONS

  • Dimensions (L x W x H): 12.8″ x 12.01″ x 10.42″
  • Weight: 100.8lbs (45.7kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P16S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Stardard
  • Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 40V
  • Recommended Low Voltage Disconnect: 48.0V
  • BMS Reconnect Voltage: 41.6V
  • Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

  • Nominal Voltage: 51.2V
  • Working Voltage: 43.2 – 58.4V
  • Recommended Voltage: 48.0V – 57.0V
  • Nominal Capacity: 105Ah
  • Energy: 5,376Wh
  • Capacity @ 25A: 252 min
  • Efficiency: 0.99
  • Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 58.5V
  • Reconnect Voltage: <58.5V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

For Data Sheet Click Here

INSTALLATION VIDEOS

Bolt Energy USA - Club Car Onward (AC DRIVE) Lithium Battery Conversion Video



Not sure what Lithium Battery is right for your golf cart?

Check out our comprehensive Guide: Good, Better, Best Lithium Battery for you

Additional Information
Nominal Voltage:
48
Range (on stock cart):
20-50 miles
Ideal for:
Stock Cart / 2 Passenger
Ideal for:
Modified Cart / 4 Passenger
Capacity - Amp Hours:
105
Make:
Advanced EV
Make:
EZGO
Make:
Yamaha
Make:
Bintelli
Make:
Vivid Peak
Make:
ICON
Make:
Evolution
Make:
Madjax
Make:
Club Car
Model:
RXV
Model:
X-Series
Model:
Bad Boy Buggy
Model:
Precedent
Model:
DS
Model:
TXT
features:
Best in Power (higher max amp output than its competitors);Free Shipping!;10yr Warranty
